Product Description

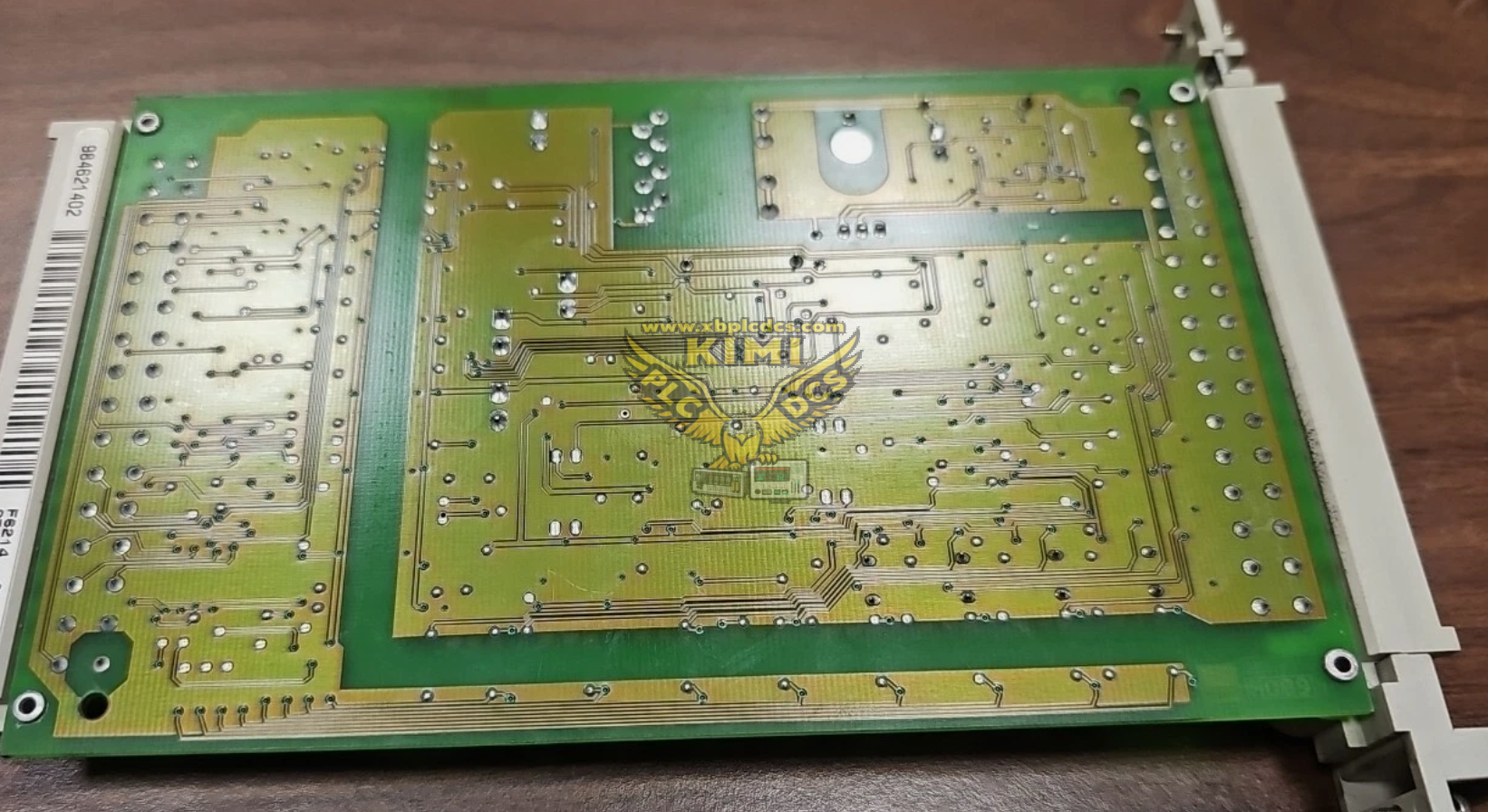

The F6220 is a SIL3 certified 8-channel thermocouple input rack module for HIMA HIQuad H41q / H51q safety instrumented system, compliant with IEC 61508 and IEC 61511. It is a plug-in card for HIQuad subrack, designed for temperature measurement with multiple thermocouple types (K, S, B, J, T etc.). It provides galvanic isolation between field side and internal backplane safety bus. This module cannot execute safety logic independently; it communicates with HIQuad CPU via rack backplane bus to transmit temperature data and diagnostic information.

Key Functions

• 8 thermocouple input channels for high-precision temperature acquisition in safety loops
• Support multiple thermocouple sensor types, built-in cold junction compensation
• Channel-level fault diagnosis to detect wire break, short circuit and sensor failure
• Galvanic isolation between field wiring and backplane bus to suppress interference
• Front panel LED indicators to show module running status and individual channel fault alarms
• Backplane bus communication with HIQuad CPU for temperature data upload and diagnostics
• Supports configuration, online monitoring and fault diagnosis via HIMA engineering software

Application Scenarios

This F6220 thermocouple input module is widely used in Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Burner Management (BMS) and Fire & Gas (FGS). It is deployed in oil & gas, petrochemical, chemical refining, thermal power plants and offshore platforms for high-reliability temperature monitoring inside HIQuad safety racks.

Common Issues & Troubleshooting

• Temperature reading drift: Thermocouple aging, cold junction compensation error or cable interference
• Channel fault alarm: Sensor wire break, short circuit or thermocouple burnout
• Backplane communication error: Poor module insertion, gold finger dust contamination or backplane damage
• Abnormal temperature value: Wrong thermocouple type selected in configuration or reversed polarity wiring
• Module not recognized by CPU: Wrong slot installation, firmware mismatch or hardware failure
