Product Description

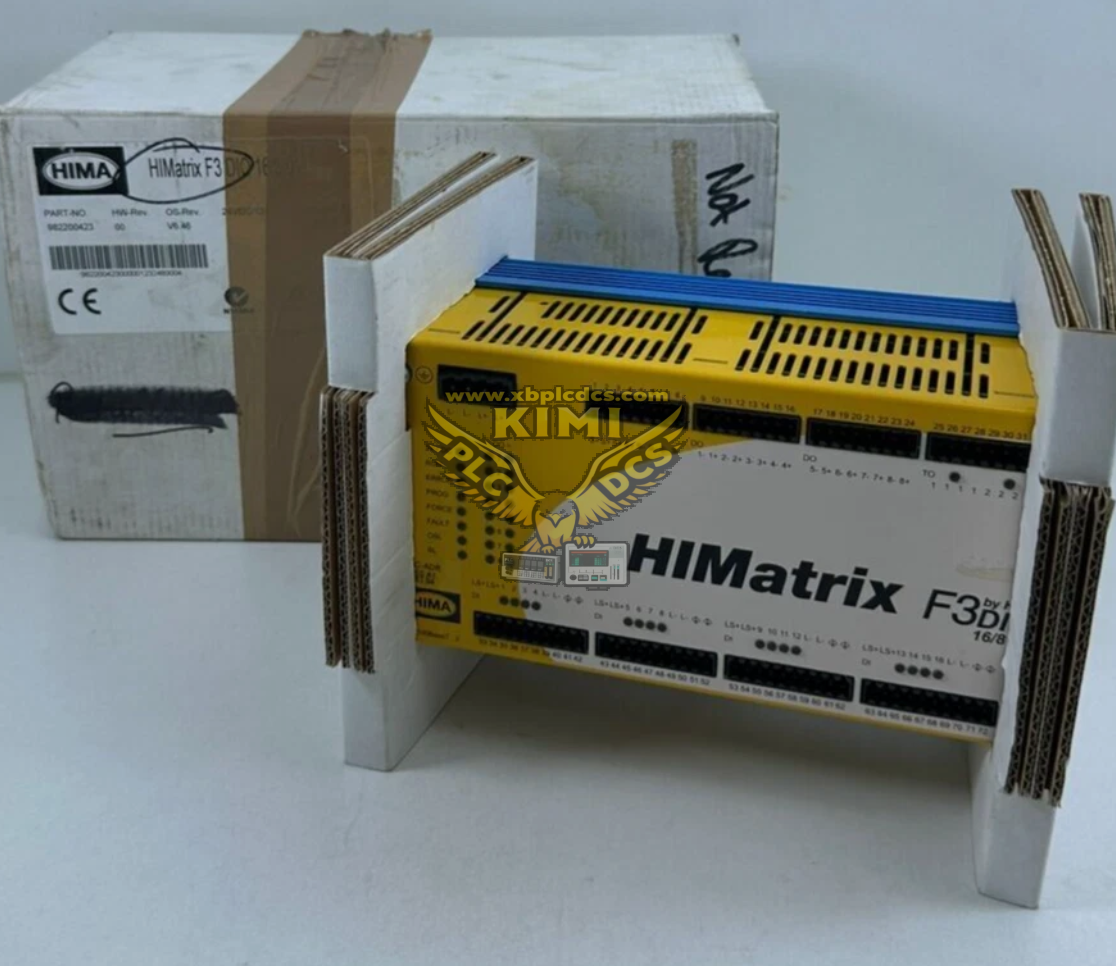

The F3 DIO 16/8 01 (part number 982200423) is a SIL3 certified mixed digital input/output remote I/O module of HIMA HIMatrix safety system. It provides 16 safety digital input channels and 8 two-pole safety digital output channels with 24VDC signal level. This DIN rail mounted module integrates dual SafeEthernet ports for redundant safety network connection. It adopts channel-level line monitoring and EMC protection design, supporting distributed safety control architecture and working with HIMA safety CPU for field signal acquisition and actuator driving.

Key Functions

• 16-channel digital input for collecting status signal from safety switches and field sensors
• 8-channel two-pole safety digital output for controlling solenoid valves and safety actuators
• Channel-wise line diagnosis to detect wire break, short circuit and wiring faults
• Dual SafeEthernet interfaces for redundant safety communication with HIMatrix controller
• Fail-safe response: outputs switch to safe de-energized state upon communication loss or hardware fault
• Front panel LED indicators for power, network status and individual channel fault alarm
• Configuration, online monitoring and diagnosis supported by ELOP II engineering software

Application Scenarios

This mixed I/O module is widely used in Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Burner Management System (BMS) and Fire & Gas (FGS). It is deployed in oil & gas, petrochemical, chemical and power plants, used for acquiring field safety signals and driving safety interlock actuators.

Common Issues & Troubleshooting

• Channel fault alarm: Loose terminal connection, cable short circuit, wire break or insulation degradation
• SafeEthernet communication interruption: Damaged network cable, switch fault or incorrect IP parameter
• Input signal abnormal: Wrong sensor wiring, unstable 24VDC power or contact bounce
• Output cannot be energized: Overload, load wiring error or safety logic interlock trigger
• Module offline randomly: Cabinet overheating, vibration impact or power supply fluctuation
