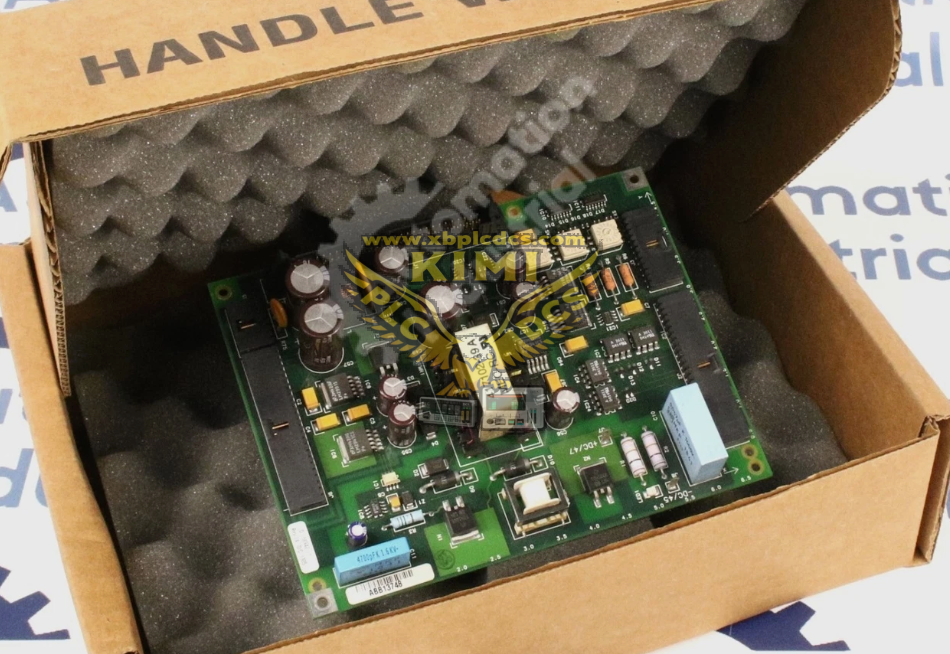

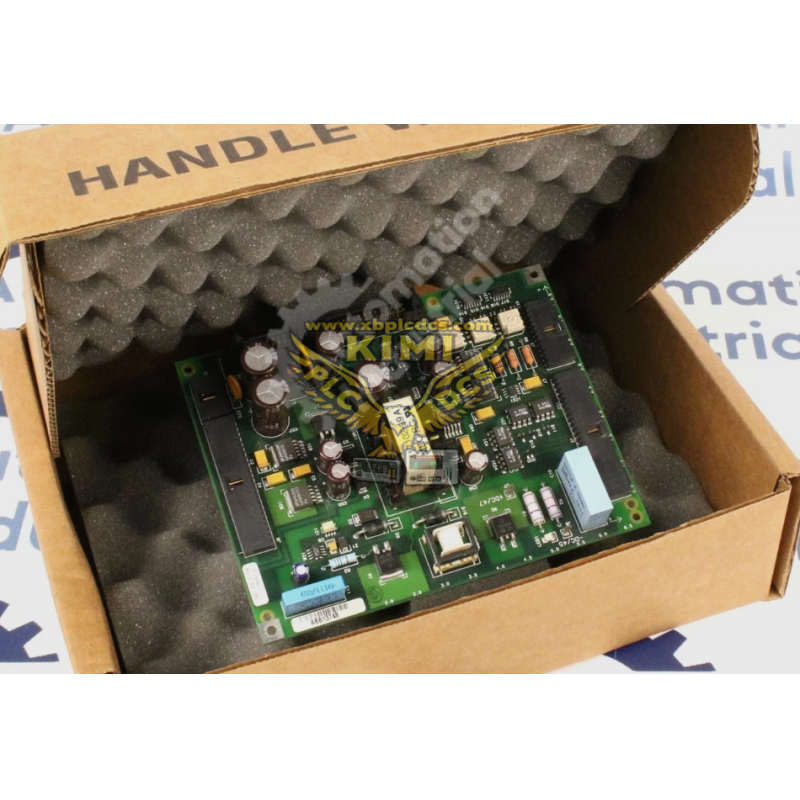

Reliance Electric 0-56942-1 GV3000 Drive Control Board

Product Description

The 0-56942-1 is a main control board designed for Reliance Electric GV3000 series AC variable frequency drives. It is a conformal coated printed circuit board, built to withstand vibration, temperature variation and electrical noise in industrial control cabinet environments. This core board executes motor control algorithms, processes feedback signals and provides local human-machine interface via 7-segment LED display and membrane keypad. The GV3000 series has been discontinued, and available stock mainly includes surplus and refurbished spare boards for legacy drive maintenance.

Product Functions

• Support three motor control modes: V/Hz scalar control, sensorless vector control (SVC) and flux vector control (FVC)
• Process motor current, voltage and encoder feedback signals to realize closed-loop speed and torque regulation
• Generate PWM control signals to drive the IGBT power stage of GV3000 AC drive
• Front panel keypad and LED display for parameter setup, real-time operating data and fault code reading
• Integrated comprehensive protection functions: overcurrent, overvoltage, undervoltage, overload, over-temperature and motor stall interlock
• Expansion slot for optional I/O and communication modules to connect with PLC, HMI and plant SCADA systems
• Onboard non-volatile memory for storing drive parameters, motor setup data and fault event history logs

Application Scenarios

• Spare replacement for Reliance GV3000 variable frequency drives in manufacturing workshops
• AC motor speed regulation for conveyors, extruders, fans, pumps and winding machinery
• Retrofit and overhaul projects of legacy GV3000 drive systems in paper, plastic, metal processing industries
• Heavy-duty motor control for continuous production lines in chemical, metallurgical and packaging plants
• Preventive maintenance and spare parts inventory for factories still operating Reliance legacy drives
• On-site repair for GV3000 inverters with failed original main control boards

Common Problems

• Board boot failure after power-up: aged electrolytic capacitors, blown fuses or corrupted firmware
• Motor speed instability or torque oscillation: feedback signal interference, incorrect gain parameter tuning
• LED display blank or unreadable: backlight circuit failure, loose internal connectors
• Repeated overcurrent alarms: current sampling circuit drift, IGBT module damage or motor winding fault
• Loss of communication with expansion modules: corroded connector pins or damaged onboard communication chip
• Parameters lost after power cycle: failure of onboard non-volatile memory chip
• Maintenance limitation: original production discontinued, limited spare components and no official firmware upgrade service
