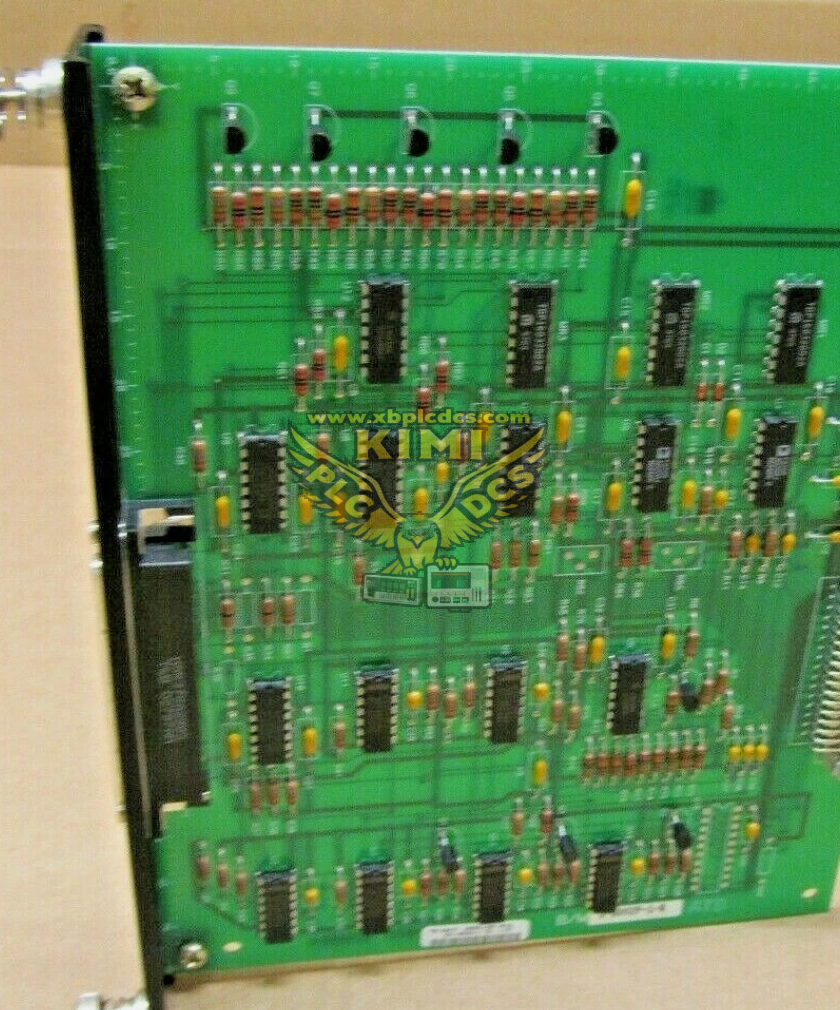

Reliance 0-60063-2 PC Drive Regulator Board

Product Brief Description

The Reliance 0-60063-2 is a PC drive regulator board for Reliance AutoMax SA3100 series distributed power systems. It acts as the core control card for pulse modulated inverter units, regulating voltage, current and frequency output for AC motors. This legacy circuit board has been discontinued by the original manufacturer and is supplied as fully tested surplus or refurbished spare parts for repairing and upgrading existing industrial drive equipment.

Product Features

• Precise regulation of output voltage, current and frequency for AC inverter control
• Processes speed reference commands and motor feedback signals for closed-loop control
• Built-in multi LED indicators for power status, operation and fault diagnosis
• High-speed pulse modulation logic to generate drive signals for power semiconductor devices
• Over-current, over-voltage and over-temperature protection logic integrated on board
• Standard plug-in rack mount design, easy installation and replacement
• Industrial anti-interference PCB design, stable operation in heavy-duty factory environments
• Compatible with SA3100 power modules within the Reliance AutoMax DPS platform

Application Scenarios

• Reliance AutoMax SA3100 distributed power inverter drive systems
• Metal rolling mills, extrusion lines and heavy industry AC motor speed control
• Paper mills, mining and cement plant heavy-duty drive cabinets
• Large fans, water pumps and long conveyor variable speed control systems
• Legacy industrial automation overhaul and emergency spare replacement
