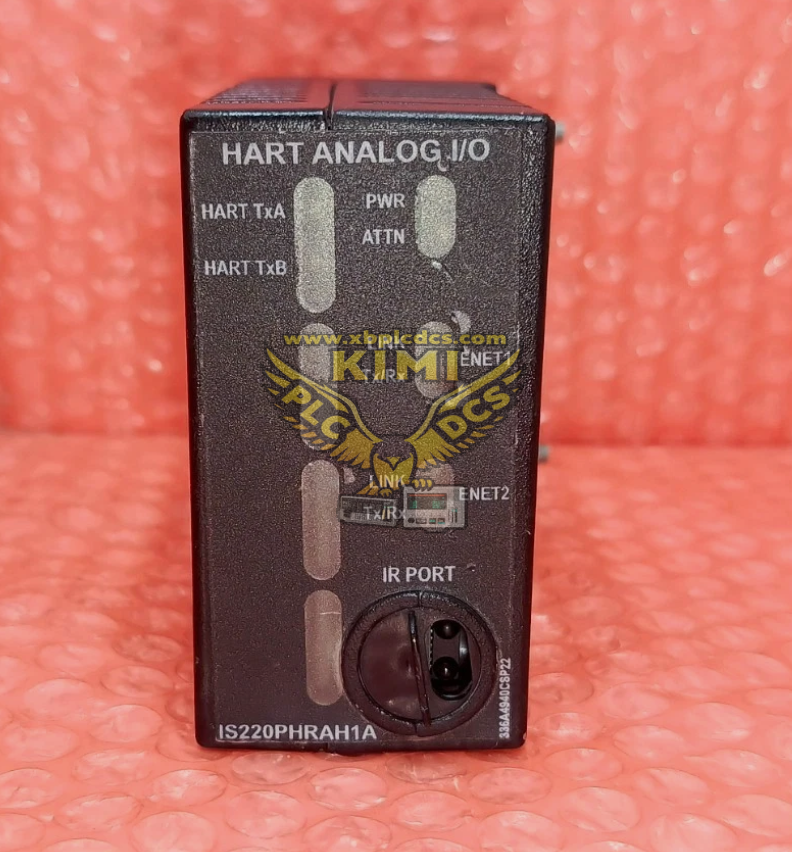

GE IS220PHRAH1A HART Analog I/O Pack for Mark VIe Speedtronic Turbine Control System

Product Description

The IS220PHRAH1A is a conformal‑coated intelligent HART analog I/O pack designed by GE for the Mark VIe distributed turbine control system. It provides 10 analog input channels and 2 analog output channels, supporting 4‑20mA / 0‑10V signals and HART protocol communication with smart field transmitters. Equipped with dual redundant 100Mbps IONet Ethernet ports, the module supports simplex and TMR triple‑modular redundant configurations. Its coated circuit board can resist dust, humidity and chemical contamination for long‑term stable operation in power plant cabinets with vibration and strong electromagnetic interference. It is widely used as spare replacement hardware for gas and steam turbine control racks.

Product Functions

• High‑precision acquisition of 10‑channel analog signals from pressure, flow and level transmitters, with built‑in signal conditioning and noise filtering
• 2 analog output channels output 4‑20mA control signals to positioners and regulating valves for closed‑loop process control
• Support HART digital communication to read smart transmitter diagnostic data, device status and extended process variables
• Dual IONet Ethernet ports transmit real‑time measurement values and receive control commands from Mark VIe main controllers
• Detect channel open‑circuit, short‑circuit and over‑range faults and upload diagnostic alarms to the turbine control node
• Front‑panel LED indicators display power supply, network link, running status and fault warning information for on‑site maintenance
• Complete onboard hardware self‑diagnosis for A/D and D/A circuits, Ethernet transceivers and onboard power supply failures

Application Scenarios

• Gas turbine and steam turbine Mark VIe control cabinets in thermal power combined‑cycle power plants
• Generator excitation control racks and plant BOP auxiliary system process parameter monitoring
• Off‑shore oil & gas platform turbine and large compressor process monitoring and regulation systems
• Natural gas pipeline compressor skids and petrochemical large rotating machinery control cabinets
• Wind farm distributed control systems with HART smart instrument connection requirements
• Spare replacement and technical retrofit of aging GE Mark VIe analog I/O control hardware

Common Problems

• Unstable or drifting analog readings：aging A/D converter chips, degraded reference circuits, poor cable shielding or ground‑loop interference
• Loss of HART digital communication：incorrect HART address setting, field instrument failure, damaged signal wiring or internal HART transceiver fault
• Intermittent IONet network disconnection：oxidized RJ45 connectors, aging network cables, loose terminals or network chip performance degradation
• Individual channel open‑circuit or short‑circuit alarm：field transmitter damage, corroded wiring terminals or burned‑out input isolation circuit
• Module cannot be recognized by Mark VIe controller：wrong network node address, incompatible firmware version or hidden circuit board damage
• Persistent hardware diagnostic alarm：dust accumulation on PCB, poor cabinet ventilation, overheating and aging electrolytic capacitors
• Analog output out of tolerance or no response：D/A circuit failure, output loop overload or actuator wiring fault
