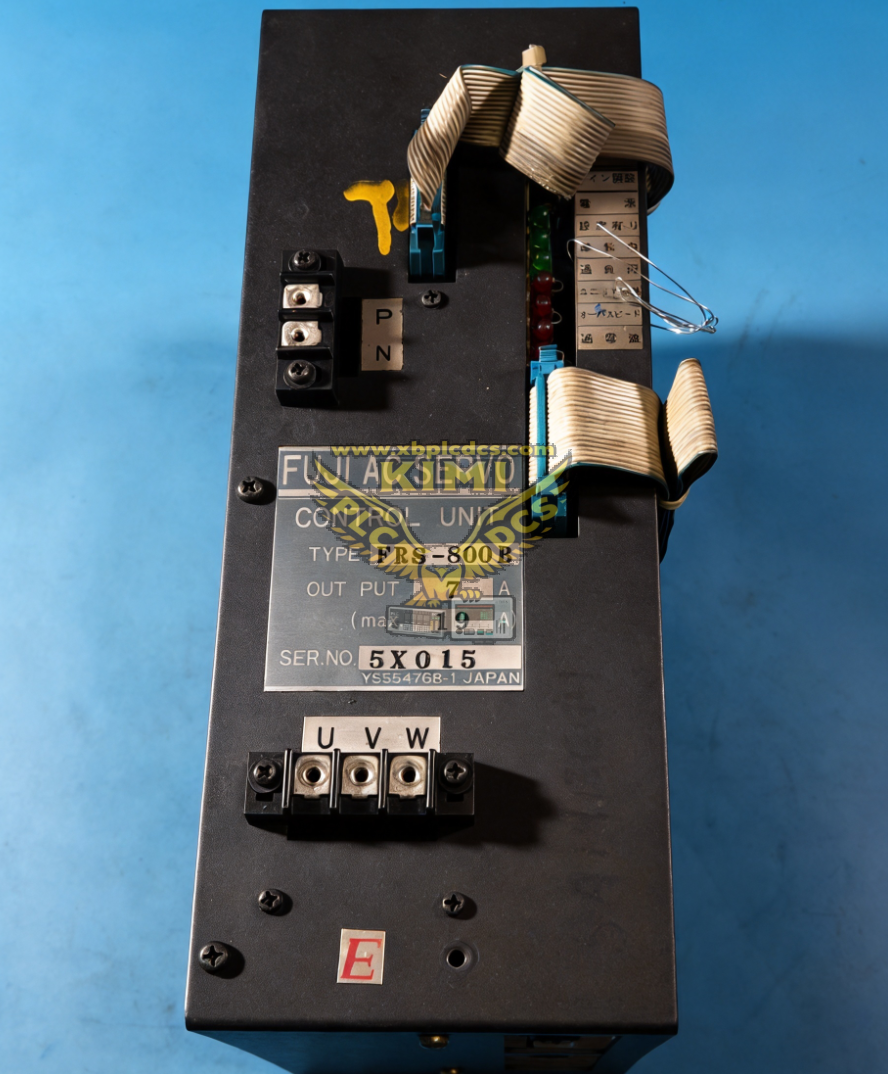

Fuji FRS800B Series Variable Frequency Drive

Product Description

The FRS800B is a compact general‑purpose three‑phase AC variable frequency drive manufactured by Fuji Electric. It adopts sensorless vector control and V/F control algorithms, with built‑in RS485 Modbus‑RTU communication interface, programmable digital and analog I/O terminals. The integrated heat sink and protective coating PCB ensure stable continuous operation in factory environments with dust, vibration and electromagnetic interference. It is widely used for speed regulation and energy‑saving control of fans, pumps and conveyors.

Product Functions

• Realize stepless speed regulation for three‑phase asynchronous motors via sensorless vector control or V/F control
• Multiple protection functions: overload, overcurrent, overvoltage, undervoltage, overheating and short‑circuit protection
• Built‑in RS485 communication port supporting Modbus‑RTU for connection with PLC, DCS and HMI
• 6 programmable digital input terminals, 2 analog inputs and 2 relay alarm output contacts
• Flexible acceleration/deceleration time setting, multi‑step speed operation and frequency upper/lower limit locking
• Real‑time fault code storage and running parameter recording for equipment maintenance analysis
• Soft start function to reduce motor starting impact and achieve energy‑saving operation for variable load equipment

Application Scenarios

• Factory fan, water pump and air compressor energy‑saving speed control systems
• Conveyors, material handling machines and packaging automation production lines
• Chemical, textile, food and beverage processing production equipment
• HVAC air‑conditioning circulating water and ventilation control
• Mechanical processing workshops, printing machinery and small‑size lifting equipment
• Replacement spare drives for aging Fuji FRS800 series inverters

Common Problems

• Overheating alarm：cooling fan aging, heat sink blocked by dust and poor cabinet ventilation
• Overcurrent fault：motor insulation aging, cable short‑circuit or unreasonable acceleration time setting
• Communication intermittent dropout：RS485 cable aging, loose terminals, wrong baud rate or ground loop interference
• Motor speed unstable：load fluctuation, parameter drift or electromagnetic interference on signal wiring
• Power‑on no output：DC bus circuit failure, damaged IGBT power module or control board fault
• Frequent unexpected tripping：grid voltage fluctuation, improper protection threshold or loose power terminals
• Parameter loss after power cycle：faulty control board memory or abnormal power supply circuit
