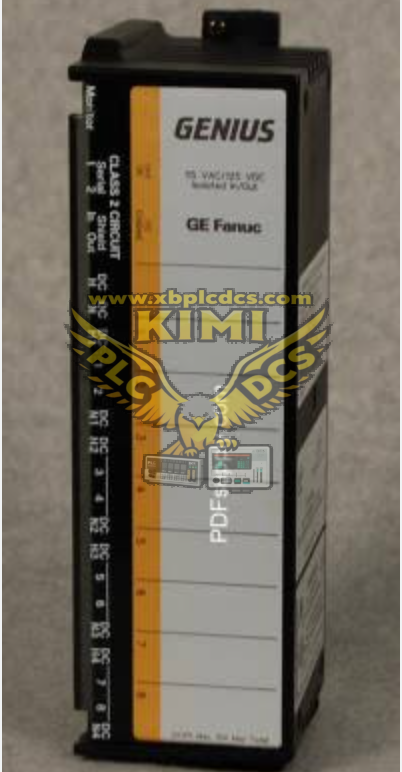

GE Fanuc IC660EBS103 Genius I/O Electronic Assembly

Product Description

IC660EBS103 is an isolated electronic assembly for GE Fanuc Genius distributed I/O blocks. It provides eight individually isolated discrete channels supporting 115 VAC (47‑63 Hz) or 125 VDC field signals, designed to mate with matching Genius terminal base units. The module communicates over the Genius serial bus to GE PLC hosts, implementing galvanic isolation between field circuits and the back‑plane logic circuit. It adopts non‑diagnostic hardware design, consumes approximately 8 W power, and operates within 0 °C‑60 °C ambient temperature for field‑mount distributed control applications.

Product Features

• Eight fully isolated channels, supports both 115 VAC and 125 VDC field signal levels
• Galvanic isolation per‑channel, prevents fault propagation across different field loops
• Genius serial bus interface for distributed I/O communication with GE Fanuc PLC controllers
• Electronic assembly can be hot‑swapped while terminal base remains field‑wired
• LED status indicators for each channel for local on‑site status observation
• Non‑diagnostic version, simplified hardware without short‑circuit or channel fault reporting function
• Operates over frequency range 47‑63 Hz, suitable for global industrial power grids
• Low power consumption around 8 W, wide operating temperature 0 °C ~ 60 °C
• Compatible with corresponding Genius terminal base hardware for field wiring termination
• Rugged industrial construction with high EMC noise immunity for plant‑floor cabinet installation

Application Scenarios

• Distributed discrete signal collection and output for manufacturing and process plant Genius I/O systems
• Field interface for 115VAC /125VDC limit switches, pressure switches, solenoids and relay coils
• Factory assembly lines, material‑handling systems using GE Fanuc Genius distributed control network
• Power plant auxiliary control for high‑voltage auxiliary cabinet discrete signal acquisition
• Retrofit and spare‑part replacement for legacy GE Genius I/O installed base
• Industrial environments requiring channel‑to‑channel isolation to suppress ground‑loop interference

Common Problems & Troubleshooting

• Module cannot communicate on Genius bus: Verify bus termination resistor setting; check Genius bus cable continuity and bus address configuration; confirm no duplicate node addresses on network.
• All channels no response: Check control power supply to I/O block; inspect mechanical seating between electronic assembly and terminal base; clean connector contact pins.
• Individual channel fails to react: Verify field voltage level matches 115 VAC /125 VDC rating; test field wiring open‑circuit or short‑circuit; swap channel to distinguish field fault versus module hardware damage.
• Intermittent channel operation: Check terminal base screw terminals for vibration‑induced loosening; separate Genius bus cable and field power cables; improve cabinet grounding and shielding.
• LED indicator does not toggle with field signal: Confirm correct voltage magnitude and polarity; inspect for contamination or oxidation on terminal base contacts; re‑seat IC660EBS103 electronic unit.
• Confusion between diagnostic / non‑diagnostic version: IC660EBS103 is non‑diagnostic; it cannot report short‑circuit or overload alarms, do not replace with diagnostic variant without project modification.
• Over‑temperature performance degradation: Ensure cabinet ventilation is unobstructed; ambient temperature cannot exceed 60 °C; reduce heat sources nearby the Genius I/O block.
