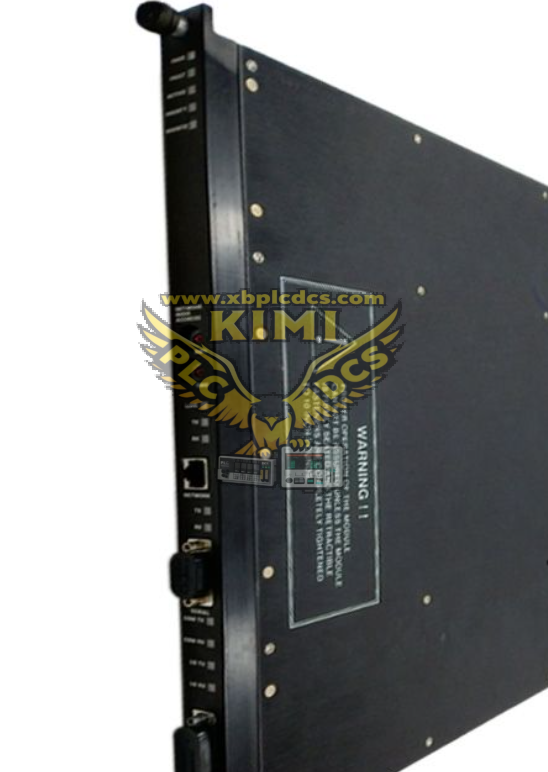

Triconex 9666X Digital Output Termination Assembly for Tricon‑CX SIS

Product Description

9666X is a field termination unit designed for Tricon‑CX TMR digital output modules of Schneider Triconex safety‑instrumented‑system. It acts as the interface between SIS digital output modules and 24 VDC field actuators, solenoid valves, alarm beacons and relay coils. Equipped with Elco multi‑pin connector for ribbon cable connecting to I/O chassis and screw‑clamp field terminals, it provides channel‑level fuse protection, blown‑fuse LED indication, transient surge suppression and load‑monitoring feedback circuit. DIN‑rail mountable, it supports SIL‑3 safety loop wiring for ESD and BMS safety applications within petrochemical, oil‑gas and power‑plant control cabinets.

Product Features

• Termination interface for Tricon‑CX digital output modules, handling 24 VDC field actuator driving loops
• Individual channel fuse protection with visual blown‑fuse LED indicator for fast on‑site fault locating
• Built‑in surge and transient suppression circuits to absorb field‑side voltage spikes and protect SIS output modules
• Load‑feedback monitoring circuit enabling SIS module to detect open‑load, short‑circuit and blown‑fuse conditions
• Elco high‑density ribbon‑cable connector for connection to I/O modules inside 8120X main chassis or 8131X expansion chassis
• Screw‑clamp terminal blocks for secure field‑device wiring; compact DIN‑rail mounting for cabinet installation
• Supports safety‑critical solenoid valve, emergency trip relay and alarm‑device driving loops for SIL‑3 applications
• Wide operating temperature‑40 °C ~ +70 °C, high EMC immunity for heavy‑interference industrial cabinet environment
• Compatible with hot‑swap I/O modules; termination board can remain wired during online I/O card replacement
• Diagnostic status transmitted back to TriStation engineering software for central system alarm management

Application Scenarios

• Emergency Shutdown (ESD) system solenoid‑valve output termination for refinery and petrochemical units
• Burner Management System (BMS) trip‑relay and fuel‑valve drive‑loop wiring for gas‑turbine and boiler protection
• Oil‑gas on‑shore and offshore platform SIS field actuator signal termination cabinets
• Chemical and coal‑chemical plant SIL‑3 safety interlock output loops for trip relays and shutdown devices
• Power‑plant critical unit protection for turbine‑trip, boiler‑safety related digital output field interfaces
• Distributed cabinet termination when SIS main rack is located remotely from field actuators and solenoids

Common Problems & Troubleshooting

• SIS commands output ON but field actuator does not actuate: Check channel fuse status and blown‑fuse indicator; inspect field‑side power supply; verify screw‑terminal tightening; test Elco ribbon‑cable integrity.
• SIS reports short‑circuit or blown‑fuse fault: Disconnect field load to isolate fault; inspect field‑cable short‑to‑ground; replace blown channel fuse with correct rating; check actuator coil internal short‑circuit damage.
• Open‑load alarm reported even with valid field load: Confirm load impedance meets minimum load‑detection requirement; add matched dummy‑load resistor for unused channels; inspect loose field‑wiring terminals.
• Intermittent output actuation failure: Check cabinet‑vibration‑caused loose terminals and Elco connector locking; separate output cables from high‑power motor wiring; improve shielding and cabinet grounding.
• Whole termination assembly without output response: Verify external 24 VDC field‑loop power supply; inspect Elco multi‑pin connector full seating; check ribbon‑cable pin damage or mechanical breakage.
• Surge‑related repeated fuse blow‑out: Install free‑wheeling diode for inductive coil loads; inspect surge‑suppression component integrity; avoid sharing power supply with large inductive equipment.
• Mismatch after spare‑part replacement: Use genuine 9666X termination assembly for Tricon‑CX platform; do not mix‑use legacy Tricon‑V series termination panels; verify ribbon‑cable pin‑out compatibility.
