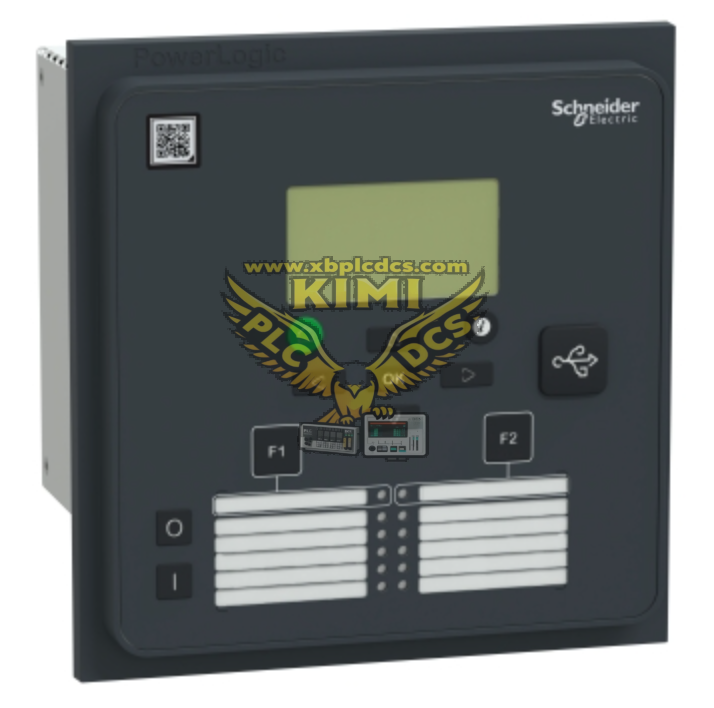

Schneider Electric REL52003 Easergy P3U30 Protection Relay

Product Description

REL52003 is the commercial order code for Schneider Easergy P3U30 multifunction numerical protection relay. It is panel‑mounted for medium‑voltage switchgear, equipped with 3CT+1Io current inputs, 4VT voltage inputs, 16 digital inputs, 8 watchdog‑supported relay outputs and dual RJ45 Ethernet ports. Auxiliary power supply ranges 48‑230 V AC/DC, digital input supports 24‑230 V. This unit integrates protection, metering, control, disturbance recording and event logging, designed for feeder, motor and busbar protection in utility and industrial power systems, complying with IEC and ANSI standards.

Product Features

• Rich protection elements: overcurrent, earth‑fault, directional protection, motor thermal overload, voltage protection, breaker‑failure and arc‑flash protection
• High‑accuracy measurement of current, voltage, power, energy and harmonic distortion parameters
• Hardware resource: 16DI / 8DO with watchdog supervision, dual RJ45 Ethernet communication interfaces
• Local LCD HMI and keypad for onsite parameter checking, setting and fault history review
• Built‑in disturbance recorder, time‑stamped SOE event log for post‑fault root‑cause analysis
• Support protocols: Modbus TCP, IEC 61850, IEC‑60870‑103 for SCADA and DCS interconnection
• Wide auxiliary power: 48‑230 V AC/DC; DI working range: 24‑230 V AC/DC
• Programmable custom logic, auto‑reclose function and flexible interlock configuration
• Configuration and firmware upgrade via Easergy Pro software; non‑volatile memory retains parameters after power loss
• Front‑panel IP54 protection degree for switch‑cabinet installation environment

Application Scenarios

• Medium‑voltage feeder protection in power utility distribution substations
• Large‑capacity motor protection for petrochemical, mining and metallurgy plants
• Busbar protection and switchgear control in industrial power distribution rooms
• Power system protection for data centers and large industrial complexes
• Oil‑gas field and water‑treatment plant medium‑voltage cabinet protection
• Front‑end protection unit connecting to SCADA / DCS remote monitoring platform

Common Problems & Troubleshooting

• No power, HMI screen off: Check 48‑230 V AC/DC auxiliary supply voltage and polarity; inspect cabinet fuse and terminal tightening torque.
• Incorrect measured values: Verify CT/VT secondary wiring; confirm CT/VT ratio setting matches actual transformers; check for short‑circuit or loose terminals on secondary loop.
• Unexpected protection trip: Recheck protection setting thresholds; inspect external digital‑input interlock signals; download disturbance record file to identify real fault source.
• Ethernet communication failure: Inspect RJ45 cable and switch port status; verify IP address, subnet mask and protocol parameter matching; eliminate ground‑loop interference.
• Configuration upload/download failure: Check PC‑relay network connection; confirm Easergy Pro software‑firmware compatibility; release write‑protection permission.
• Breaker local or remote control invalid: Inspect DI/DO channel wiring; verify control permission setting; check breaker auxiliary contact and trip‑coil circuit.
• Device self‑supervision alarm: Perform complete power‑cycle reset; check cabinet ventilation and ambient temperature; replace relay if persistent self‑test fault occurs.
