Bently Nevada 3500/15-07-00-02 Power Supply Module Document

1. Product Description

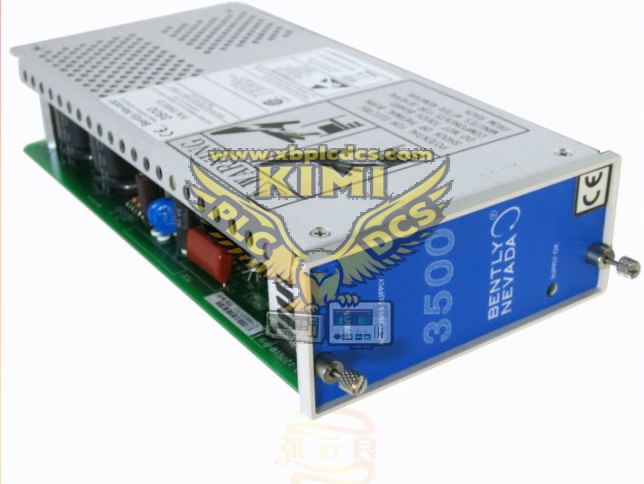

3500/15-07-00-02 is the latest generation low voltage DC power supply module of Bently Nevada 3500 machinery protection rack system, serving as the upgraded replacement for legacy 3500/15-04 series DC power units. The suffix coding breakdown: 07 = New-generation Low Voltage DC input (20–30 VDC), 00 = Single power slot configuration (bottom slot empty, single power supply layout), 02 = ATEX/IECEx + CSA hazardous area certification (Class 1, Zone 2). This half-height hot-swappable rack module is installed in the dedicated left upper power slot of the 3500 rack, converting 20–30 VDC field control power into stabilized isolated internal bus voltage for all vibration, position, relay and communication I/O cards. It integrates upgraded surge suppression, optimized thermal dissipation, and full electrical protection circuits, fully compliant with API 670, CE, UL, CSA and ATEX hazardous location standards, with operating temperature range -20°C ~ +65°C.

2. Core Product Functions

• New-gen wide low DC input conversion: Accepts 20–30 VDC control power, outputs regulated isolated rack bus power with maximum 10A total load capacity for full 15-slot rack configuration.
• Complete multi-layer electrical protection: Overvoltage, undervoltage, reverse polarity, overcurrent, short-circuit and transient surge lockout protection to prevent backplane and monitoring card burnout.
• Hot-swap online maintenance: Module can be inserted or removed while the entire 3500 monitoring rack remains powered, eliminating plant shutdown for power supply replacement.
• Real-time power diagnostic monitoring: Transmits power loss, overload, overheat and internal fault signals to the rack system processor, triggering front panel LED alarms and remote DCS/SCADA fault uploads.
• Enhanced electromagnetic noise isolation: Separates field DC control power from sensitive proximity and velocity sensor signal circuits to reduce measurement interference from industrial grid noise.
• Hazardous area certified design: ATEX/IECEx Zone 2 approval allows direct deployment in explosive gas industrial environments without extra explosion-proof enclosures.
• Optimized thermal management: Improved internal heat sink and airflow channel design to lower module operating temperature under full rack heavy load.

3. Typical Application Scenarios

• Offshore oil & gas platforms: Turbine and centrifugal compressor monitoring racks powered by 24VDC marine battery backup control systems.
• Refinery & petrochemical hazardous zones: High-speed process compressors, reformer blowers and furnace rotating equipment requiring ATEX Zone 2 certified monitoring hardware.
• Thermal power plants: Steam turbine, induced draft fan and boiler feed pump monitoring racks with plant standard 24VDC control power supply.
• Remote unmanned pipeline pumping stations: Booster pump vibration monitoring systems powered by 24V battery bank DC power.
• Chemical processing plants: Explosive process area agitators, turboexpanders and critical rotating machinery protection racks.
• Mining underground ventilation systems: Large exhaust fan monitoring racks using 24VDC intrinsically safe control power.

4. Common Faults & Troubleshooting Issues

4.1 20–30VDC Input Loss Alarm

Symptom: Red fault LED illuminated on front panel, system event log shows "DC Power Input Loss". Root causes: Loose rear terminal block wiring, tripped upstream 24VDC circuit breaker, field DC voltage drops below 20V or exceeds 30V, corroded cable terminals. Solution: Retighten terminal screws, measure field DC supply voltage, clean oxidized contact terminals, replace damaged power cables.

4.2 Overload & Overheat Fault Alarm

Symptom: Module surface temperature rises sharply, intermittent rack channel signal dropouts, persistent overheat alarm. Root causes: Total rack module load exceeds 10A maximum output limit, rack cabinet ventilation vents blocked, ambient operating temperature higher than 65°C, dust accumulation on internal heat sinks. Solution: Reduce quantity of monitoring cards to cut total load, clean rack air filters, add cabinet cooling fans, reserve airflow clearance around rack power slots.

4.3 Hot-Swap Transient Signal Interruption

Symptom: Temporary vibration/position signal loss during online module replacement. Root causes: Bent gold pins on rack backplane connector, improper insertion angle during hot swap, dust and conductive debris on module contact fingers. Solution: Power down rack to straighten damaged pins and clean contact surfaces, strictly follow official hot-swap operation procedure.

4.4 Reverse Polarity Protection Lockout

Symptom: Normal 24VDC input measured, no rack bus power output, fault LED stays red permanently. Root causes: DC power wiring positive/negative reversed during field installation, triggering internal reverse polarity protection latch. Solution: Disconnect module DC input power, correct wiring polarity, reinsert module to reset protection circuit.

4.5 Permanent No Output With Normal DC Input

Symptom: Stable 20–30VDC input supply, zero power delivery to all rack modules, un-cleared fault alarm after power cycle reset. Root causes: Internal DC-DC conversion circuit damage, blown internal safety fuse, failed backplane communication interface. Solution: Isolate the faulty power module from rack, replace with spare 3500/15-07-00-02 unit for continuous monitoring operation.
