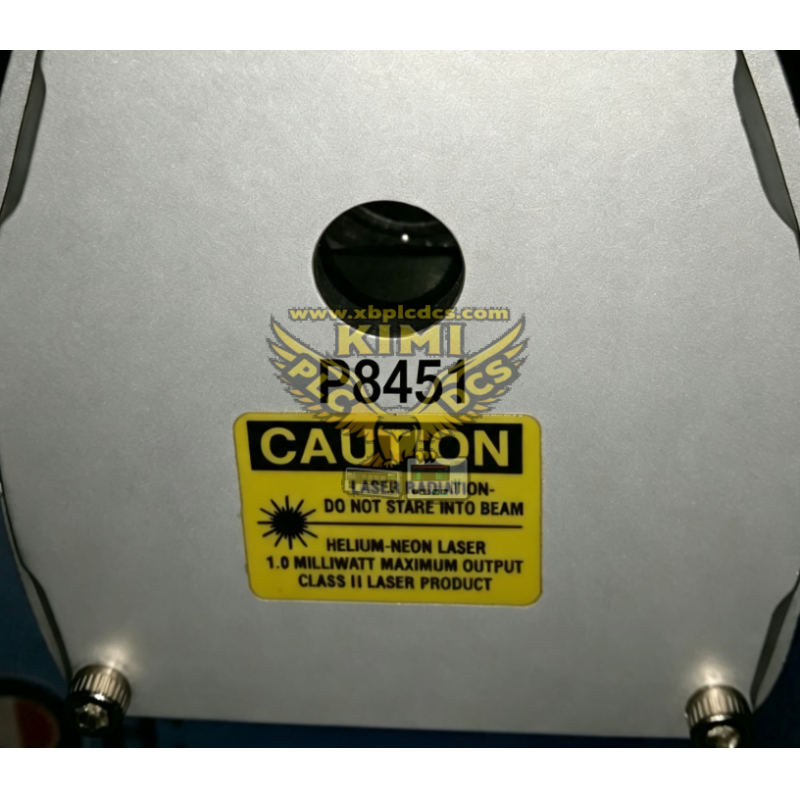

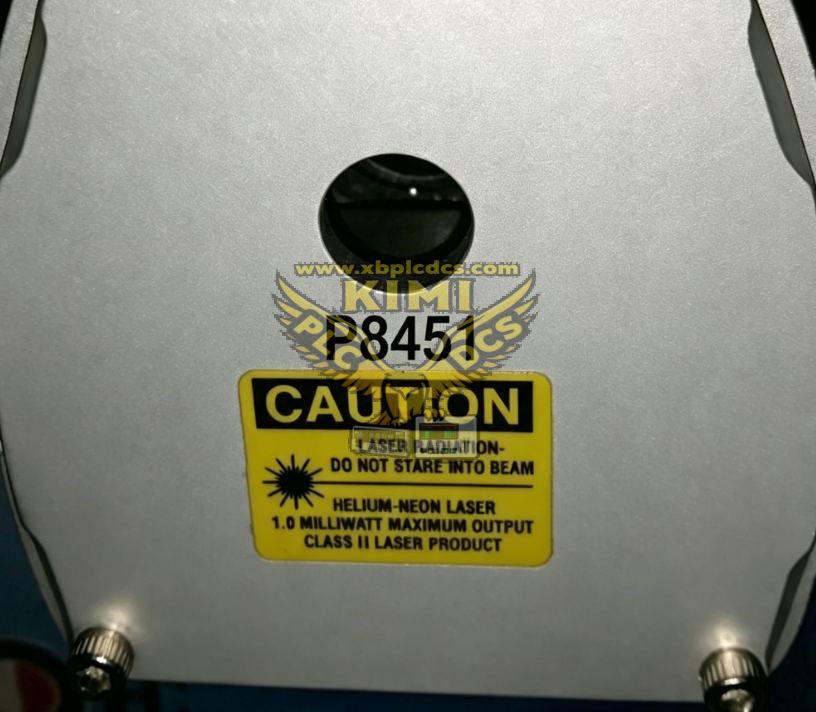

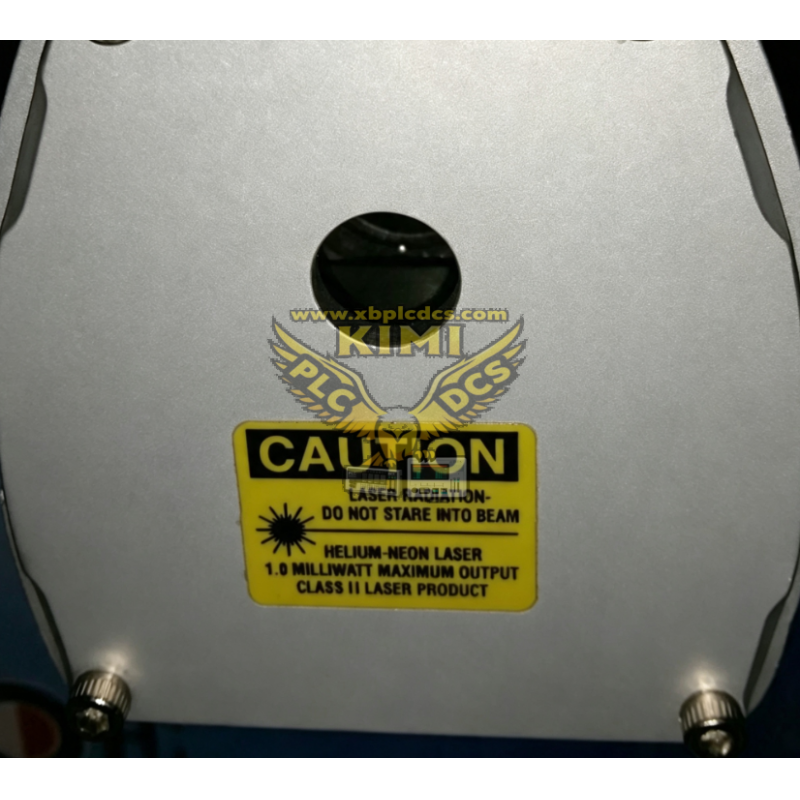

P8451 ZYGO He-Ne Dual-Frequency Laser Interferometer Head

1. Product Description

The P8451 is a compact Zeeman-split dual-frequency Helium-Neon laser head, equivalent to ZYGO ZMI-7705 industrial laser source, designed for nanometer-level heterodyne interferometry displacement measurement. It adopts natural air cooling structure with built-in constant temperature cavity stabilization circuit, Class II laser safety rating, standard 632.8nm red laser output. Equipped with integrated laser power monitoring photodiode and dedicated signal transmission interface, it perfectly matches ZMI 501A signal processing unit to support up to 2-axis synchronous precision position feedback. The aluminum alloy sealed housing resists dust and minor ambient vibration, with standardized mounting holes for fixed installation on precision automation and metrology equipment.

2. Core Product Functions

• Dual-Frequency Heterodyne Laser Output: Generates two orthogonally polarized laser beams with 3.6MHz frequency splitting, converts optical phase difference into linear displacement data without signal saturation, achieves 1.24nm double-pass measurement resolution.
• Cavity Constant Temperature Stabilization: Internal temperature control circuit suppresses wavelength drift caused by ambient temperature fluctuation, guarantees long-term measurement accuracy with frequency stability of 10 ppb per hour.
• Laser Health Real-Time Monitoring: Built-in photodiode continuously detects output laser power; triggers digital fault alarm signal to matched electronics when light attenuation exceeds threshold to avoid invalid measurement.
• Dual-Axis Synchronous Measurement Support: Matches ZMI 501A processing unit to realize simultaneous XY two-dimensional linear displacement, velocity and acceleration data acquisition for precision motion stages.
• Standard Industrial Digital Signal Interface: Outputs laser ready, power normal and fault alarm digital signals to upper motion control system for linkage interlock logic.
• Compact Low Heat Dissipation Design: Only 7W power consumption with natural air cooling, no water cooling required, saves cabinet space and simplifies equipment layout.

3. Typical Application Scenarios

• Semiconductor packaging equipment, dual-axis XY precision wafer positioning stages with nanometer positioning requirement
• Optical metrology labs, coordinate measuring machines (CMM) and linear grating calibration platforms
• High-precision laser processing equipment: laser marking, micro laser cutting motion feedback axes
• Optical component manufacturing, lens grinding and polishing precision feed motion systems
• Precision testing stages for optical lenses, prisms and thin-film coating components
• Maintenance spare replacement for existing ZMI 501A+ZMI-7705 interferometer measurement stations
