RELIANCE Y-3023-2-H00AA Brushless AC Servo Motor--KIMI

Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

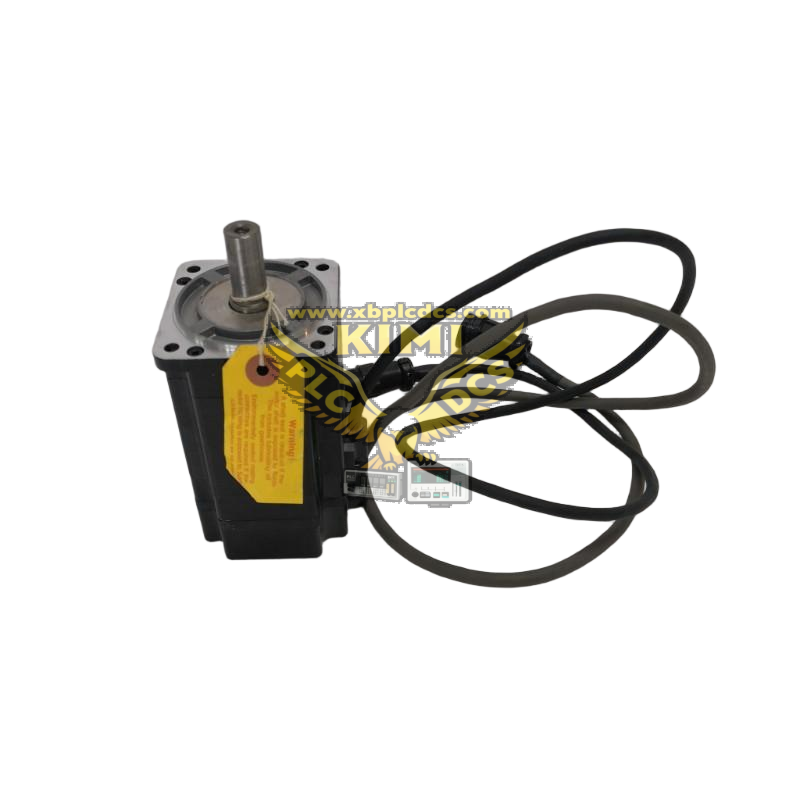

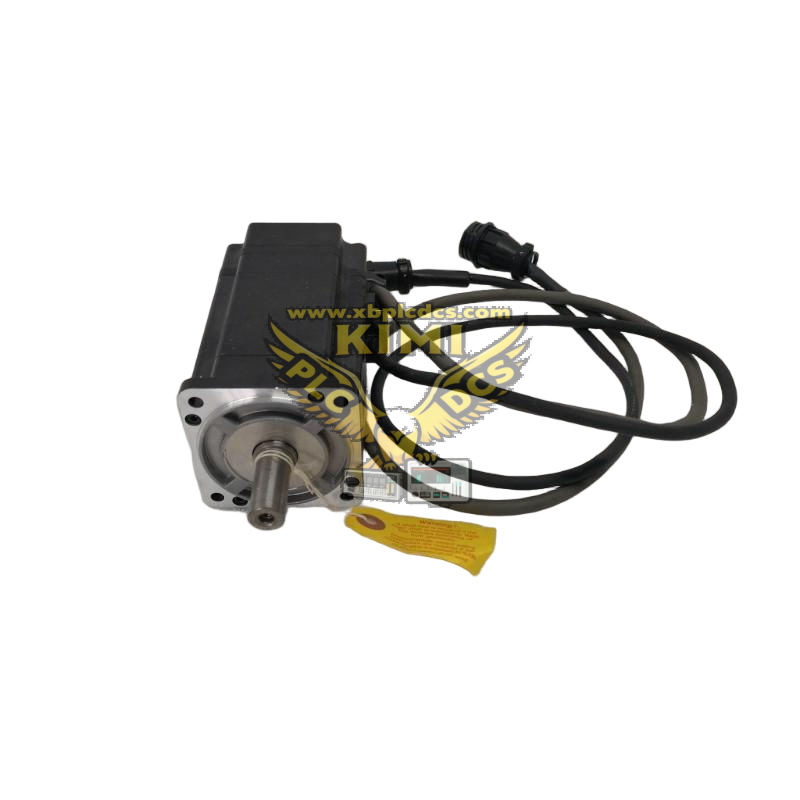

RELIANCE Y-3023-2-H00AA Brushless AC Servo Motor

Y-Series Precision Servo Motor for Industrial Motion Control (Rockwell Automation Legacy)

1. Core Overview

The RELIANCE Y-3023-2-H00AA is a high-precision brushless AC servo motor from the Y-Series (Rockwell Automation legacy, formerly Allen-Bradley), engineered for light industrial motion control requiring accurate positioning, speed regulation and torque management. It operates on 230VAC 3-phase power, delivers 2.5Nm continuous stall torque and 4500 RPM rated speed, with a 2000-line incremental encoder for real-time position feedback, making it ideal for machine tools, packaging machinery, robotics and material handling systems that demand fast dynamic response and reliable long-term operation.

• Core Role: Precision motion control; position/speed/torque regulation for industrial machinery • Key Specs: 230VAC 3-phase; 4500 RPM rated speed; 2.5Nm continuous torque; 7.5Nm peak torque • Model Info: Y-3023-2-H00AA; Y-Series Brushless AC Servo Motor; RELIANCE Electric original • Reliability: IP54 protection; -10°C to 60°C operating temp; brushless design for low maintenance

RELIANCE Y-3023-2-H00AA (5).jpg

2. Motion Performance & Feedback Capabilities

This servo motor offers a 2.5Nm continuous stall torque and 7.5Nm peak torque to handle transient load surges, while the 4500 RPM rated speed supports high-speed automation tasks. The built-in 2000-line incremental encoder provides high-resolution position feedback for closed-loop control, ensuring precise positioning accuracy and fast dynamic response to motion commands. Its brushless construction eliminates brush wear, extending service life and reducing downtime, and the IP54 enclosure protects against dust and water ingress in industrial environments.

• Torque/Speed: 2.5Nm continuous stall torque; 7.5Nm peak torque; 4500 RPM rated speed • Feedback: 2000-line incremental encoder; closed-loop position/speed control • Design: Brushless AC architecture; IP54 protection class; IEC metric mounting flange • Response: Fast dynamic response; smooth low-speed operation; low cogging torque

RELIANCE Y-3023-2-H00AA (4).jpg

3. Drive Integration & Installation

The Y-3023-2-H00AA integrates seamlessly with Rockwell Automation Kinetix servo drives (e.g., Kinetix 5700/5500) via standard 3-phase power and encoder feedback connections, supporting IEC 61800-7 motion control profiles for easy setup. It features a standard IEC metric flange for direct mounting to machine shafts, with screw-terminal power/feedback wiring for secure field connections. The motor’s compact design fits tight machine spaces, and its brushless construction reduces long-term maintenance needs, making it suitable for 24/7 industrial operation in packaging, robotics and CNC machining.

• Drive Compatibility: Rockwell Kinetix 5700/5500 servo drives; standard 3-phase power + encoder feedback • Mounting: IEC metric flange; direct shaft coupling; no brake (standard configuration) • Wiring: Screw-terminal power (230VAC 3-phase) and encoder feedback (2000-line) • Maintenance: Brushless design; sealed bearings; IP54 for harsh industrial environments

RELIANCE Y-3023-2-H00AA (3).jpg

Typical Applications & Industrial Compliance

Key Applications: CNC machine tools, packaging equipment, robotic arms, material handling systems, printing machinery, textile production lines.

Motion Control Uses: Precision positioning, synchronized motion, speed regulation, torque control for variable loads.

Compliance: CE/UL certified; RoHS compliant; industrial EMC standards (IEC 61000) for noise immunity.

Spare Part Grade: RELIANCE original genuine motor; factory-tested for servo drive compatibility; industrial-grade durability.

RELIANCE Y-3023-2-H00AA (2).jpg

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders

Technical Documentation | RELIANCE Y-3023-2-H00AA | Y-Series Brushless AC Servo Motor for Industrial Motion Control
