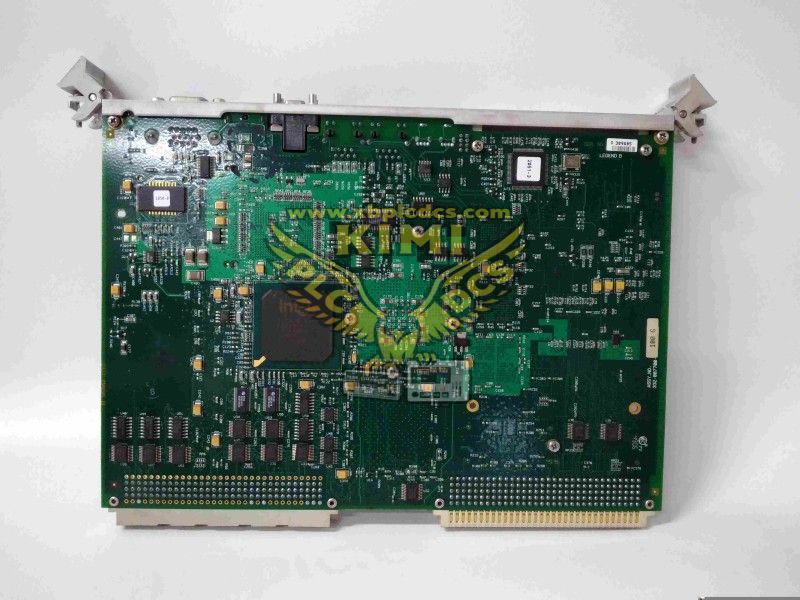

GE/VMIC VMIVME-7700-111000 6U VMEbus Single Board Computer (SBC)--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
GE/VMIC VMIVME-7700-111000 6U VMEbus Single Board Computer (SBC)
ULV Celeron Processor-Based Embedded Controller for Industrial & Aerospace VME Systems
1. Product Overview
The GE/VMIC (Abaco Systems) VMIVME-7700-111000 is a 6U single-slot VMEbus Single Board Computer (SBC) powered by an Intel Ultra Low Voltage (ULV) Celeron processor, integrated with the Intel 815E chipset and a 100MHz front-side bus. It features a transparent PCI-to-VMEbus bridge, supporting VMEbus Specification Rev. C.1 and VME64 mode, enabling it to serve as a system controller or peripheral CPU in multi-CPU VME systems. With passive cooling, abundant I/O interfaces, optional PMC expansion, and robust environmental resistance, the board excels in industrial control, aerospace data processing, automated test systems, and process monitoring. It supports multiple operating systems including Windows and Linux, delivering reliable embedded computing performance for harsh industrial environments with low power consumption and stable operation.
2. Key Technical Specifications
• Brand & Model: GE/VMIC (Abaco Systems) VMIVME-7700-111000
• Product Type: 6U VMEbus Single Board Computer (ULV Celeron Processor)
• Processor: Intel ULV Celeron (400MHz/650MHz, Model-Dependent)
• Chipset: Intel 815E
• Front-Side Bus: 100MHz
• Memory: Up to 1GB SDRAM, 32KB Non-Volatile SRAM, Optional 1GB Bootable Flash
• Storage: ATA-100 IDE (Dual Channels)
• Graphics: 64-bit AGP SVGA Video Accelerator
• VME Interface: VMEbus Rev. C.1, PCI-to-VME Bridge, VME64 Mode Supported
• I/O Interfaces: 2x Serial (RS-232), 1x Parallel, 1x 10/100 Ethernet, 2x USB 1.1, IDE, PMC Site (Optional)
• Timers: 2x 16-bit, 2x 32-bit Programmable Timers
• Power Requirements: +5VDC (Max 4A), ±12VDC (Max 0.5A)
• Cooling: Passive Cooling (No Fan)
• Form Factor: 6U VMEbus (233mm × 160mm × 28mm), Single Slot
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Storage Temperature: -55°C to +90°C (-67°F to +194°F)
• Relative Humidity: 5% - 95% (Non-Condensing)
• Weight: Approx. 450g
• Certification: CE, UL, MIL-STD-202
3. Core Features
• ULV Celeron Performance: Low power consumption with sufficient computing power for embedded control tasks.
• PCI-to-VME Bridge: Transparent bus conversion for seamless multi-CPU system integration.
• Passive Cooling: Fanless design enhances reliability in dusty/vibration-prone industrial settings.
• Rich I/O & Expansion: Multiple serial/parallel/Ethernet/USB ports, optional PMC site for custom I/O.
• VME64 Compliance: Supports 64-bit data transfer for high-bandwidth VMEbus applications.
• Multi-OS Support: Compatible with Windows XP/2000, Linux, VxWorks for flexible software deployment.
• Non-Volatile Storage: 32KB SRAM and optional flash ensure data retention during power loss.
• Robust Environmental Rating: Operates reliably in extreme temperatures and harsh conditions.
4. Typical Applications
• Industrial Automation: DCS System Controllers, Factory Floor Process Monitoring, PLC Integration.
• Aerospace & Defense: Avionics Data Processing, Flight Simulation, Weapon System Control.
• Test & Measurement: Automated Test Benches, High-Speed Data Acquisition System Control.
• Telecommunications: Network Equipment Control, Signal Processing for Communication Systems.
• Energy: Power Grid Monitoring, Turbine Control Systems, Substation Automation.
• Transportation: Railway Signaling Systems, Vehicle Test Equipment, Marine Vessel Control.
5. Installation & Maintenance
Installation Steps
• Mounting: Insert into a 6U VMEbus chassis single slot; secure with ejector levers.
• Power Connection: Connect +5VDC and ±12VDC power as per VMEbus backplane pinout.
• I/O Wiring: Attach serial/parallel/Ethernet/USB cables to front-panel connectors.
• Configuration: Set VMEbus address via jumpers; install OS and device drivers.
• PMC Expansion: Install optional PMC module (if needed) and configure via system software.
Maintenance Tips
• Cooling Check: Ensure chassis ventilation to maintain passive cooling efficiency.
• Memory/Storage: Periodically back up non-volatile SRAM and flash data.
• OS Updates: Keep operating system and drivers updated for system stability.
• ESD Protection: Use anti-static gear when handling to prevent component damage.
Technical Document | GE/VMIC VMIVME-7700-111000 | 6U VMEbus SBC | ULV Celeron Embedded Controller
