HIMA Z7138/3330/C5 8‑Channel SIL 3 Safety Digital Output Module--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

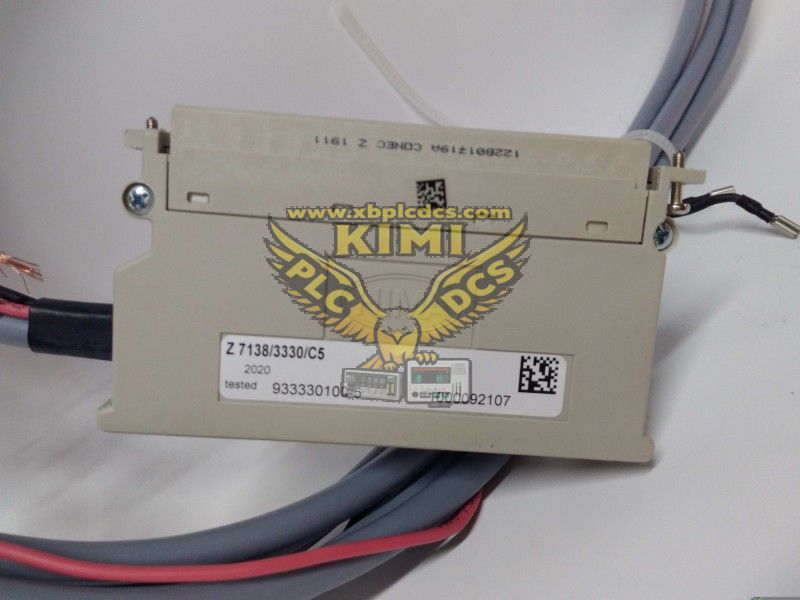

HIMA Z7138/3330/C5 8‑Channel SIL 3 Safety Digital Output Module
Safety‑Related Digital Output Module for HIMA F3330 I/O System, SIL 3 Certified
1. Product Overview
The HIMA Z7138/3330/C5 is an 8‑channel safety digital output module designed for HIMA safety instrumented systems (SIS), fully compatible with the F3330 I/O module series. It achieves SIL 3 safety integrity level certification, supporting resistive and inductive loads up to 500 mA (12 W) and lamp loads up to 4 W. With integrated safety shutdown, safe isolation, and comprehensive diagnostic functions, it is ideal for safety‑critical industrial processes such as emergency shutdown (ESD), safety interlock, and hazard prevention in oil & gas, chemical, power generation, and other high‑risk industries, ensuring reliable load control and rapid fault response.
2. Key Technical Specifications
• Product Type: 8‑Channel SIL 3 Safety Digital Output Module (Resistive/Inductive Load)
• Brand & Model: HIMA Z7138/3330/C5 (F3330 Series Compatible)
• Number of Channels: 8 Independent Safety Output Channels
• Safety Integrity Level: SIL 3 (IEC 61508 Certified)
• Max. Load Current: 500 mA per Channel (Resistive/Inductive, 12 W Max. Power)
• Lamp Load Range: 4 W Max. (Up to 10 W with Specific Configuration)
• Supply Voltage: 20‑32 Vdc (24 Vdc Nominal, L‑ Supply Dependent)
• Internal Voltage Drop: ≤ 2 V (At 500 mA Load)
• Line Resistance (In + Out): Max. 11 Ohm
• Short‑Circuit Current: 0.75‑1.5 A (Short‑Circuit Proof Design)
• Leakage Current: Max. 350 µA per Channel
• Operating Temperature: -25°C to +60°C (-13°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 5% - 95% RH (Non‑Condensing)
• Protection Class: IP20 (Module Chassis Mount)
• Dimensions (L×W×H): 12.5 × 8.5 × 22.5 cm (4.9 × 3.3 × 8.9 in)
• Weight: 0.42 kg (0.93 lbs)
• Mounting: HIMA I/O Rack Dedicated Slot (Plug‑in Installation)
• Certifications: IEC 61508 (SIL 3), CE, UL, ATEX/IECEx (Hazardous Area Compliance)
3. Core Features
• SIL 3 Certification: Complies with IEC 61508 for Safety‑Critical Applications (Requirement Class AK 1‑6).
• 8 Independent Channels: Supports Individual Load Control & Independent Fault Isolation.
• Integrated Safety Shutdown: Automatically Cuts Off Outputs on L‑ Supply Break or Fault Detection.
• Safe Isolation: Channel‑to‑Channel & Channel‑to‑Backplane Galvanic Isolation.
• Short‑Circuit Proof: Robust Design Withstands Short‑Circuit Conditions (0.75‑1.5 A Current Range).
• Diagnostic Capabilities: Signal Read‑Back, Undervoltage Tripping, and Walking‑Bit Test for Fault Detection.
• Parallel Operation: Outputs Can Be Paralleled Without External Diodes (For Higher Load Capacity).
• LED Status Indicators: Front‑Panel LEDs for Channel On/Off, Module Health, and Power Status.
4. Typical Applications
• Safety Instrumented Systems (SIS): Emergency Shutdown (ESD), Fire & Gas (F&G) System Actuator Control.
• Process Industry: Chemical, Oil & Gas, Refinery Safety Valve & Solenoid Driver.
• Power Generation: Turbine/Boiler Safety Shutdown & Auxiliary Equipment Control.
• Machinery Safety: Emergency Stop (E‑Stop), Safety Gate Monitoring, and Safe Speed Control.
• Pharmaceutical: Cleanroom Safety Interlock & Process Equipment Safety Shutdown.
• Transportation: Railway Signaling System & Offshore Platform Safety Control.
5. Installation & Maintenance
• Mounting: Plug‑in to HIMA I/O Rack Dedicated Slot (No Tools Required, Compatible with F3330 Series).
• Wiring: 2‑Wire Field Connections (Follow L‑ Supply Polarity for Safety Shutdown Function).
• Configuration: Set Load Type (Resistive/Inductive/Lamp) & Diagnostic Parameters via HIMA Programming Software.
• Maintenance: Max. 10 Output Modules with Nominal Load per I/O Rack; Replace Faulty Channels via Hot‑Swapping.
• Troubleshooting: Use HIMA Diagnostic Tools to Check Channel Integrity, Short‑Circuit, and Undervoltage Tripping.
• Safety Guidelines: Ensure L‑ Supply Continuity for Safety Shutdown; Follow SIL 3 System Calibration Procedures.
Technical Document | HIMA Z7138/3330/C5 | 8‑Channel SIL 3 Safety Digital Output Module | HIMA Safety Systems
