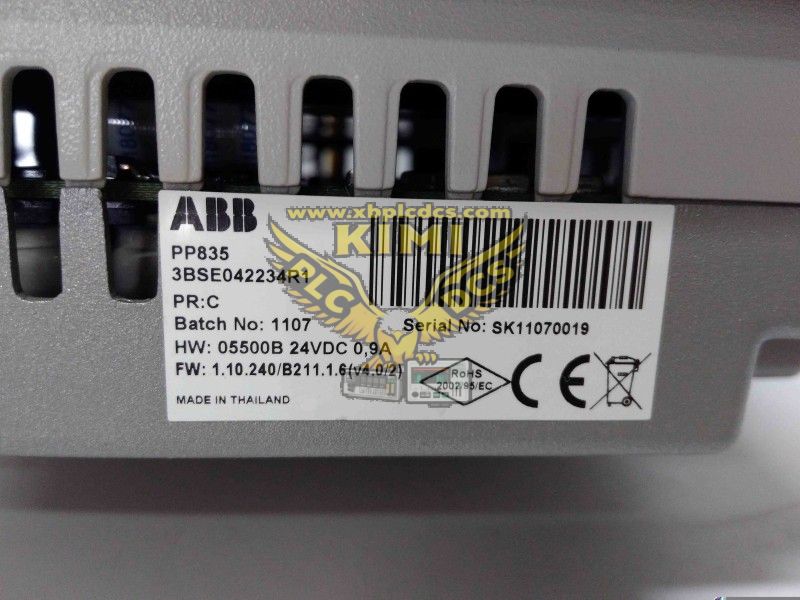

ABB PP835 (3BSE042234R1) 10.4" Color Operator Panel for AC 800M/System 800xA

Product Description

The ABB PP835 (Part Number: 3BSE042234R1) is a rugged 10.4-inch color operator panel designed for seamless integration with ABB AC 800M controllers and System 800xA distributed control systems (DCS). Engineered for harsh industrial environments, this HMI panel features a high-resolution 800x600 TFT color display, resistive touchscreen, and a robust aluminum front bezel with IP66 protection rating. Powered by 24 VDC, it supports multiple communication protocols (PROFIBUS DP, Ethernet/IP, Modbus TCP) and offers redundant power input for maximum uptime. Ideal for process control applications in oil & gas, chemical, power generation, and manufacturing industries, the PP835 provides intuitive operator interaction, real-time process visualization, and reliable system monitoring in extreme operating conditions.

Key Functions

The PP835 operator panel delivers intuitive, reliable human-machine interaction for industrial control systems. Key functions include: 10.4-inch TFT color display (800x600 resolution) with backlight (50,000-hour lifespan) for clear process visualization; resistive touchscreen (multi-touch compatible) for intuitive operation; robust IP66 front protection against dust and water ingress; redundant 24 VDC power input (18-30 VDC range) for high availability; support for industrial communication protocols (PROFIBUS DP V1, Ethernet/IP, Modbus TCP, OPC UA); integrated diagnostics for display, touchscreen, and communication status; aluminum front bezel with NEMA 4X/IP66 rating for harsh environments; and seamless integration with ABB AC 800M controllers and System 800xA DCS. The panel also features configurable function keys, backlight dimming, and automatic screen saver for energy efficiency.

Application Scenarios

The ABB PP835 operator panel is deployed in critical industrial process control applications requiring reliable HMI interaction. In oil & gas refineries, it provides real-time monitoring and control of distillation columns, pipeline systems, and storage tanks. For chemical plants, it visualizes reactor process variables, batch control sequences, and safety interlock status. In power generation facilities, it monitors turbine/generator performance, boiler operations, and electrical distribution systems. In manufacturing plants, it controls production lines, robotic systems, and material handling equipment. The panel is also suitable for water/wastewater treatment plants, mining operations, and marine applications—all scenarios where rugged, reliable HMI operation is essential for process control and safety.

Technical Specifications
