Brief Product Description

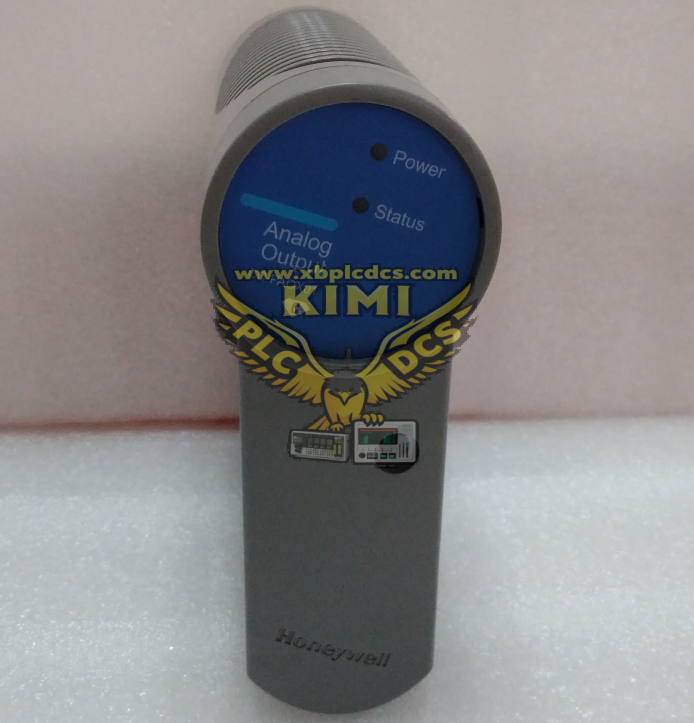

Honeywell CC-PAOX01, part number 51405039-275, is Series C high-density analog output IOM module for Honeywell Experion PKS C300 controller. It features 16 channels of 4-20mA analog output without HART protocol capability. It converts digital control setpoints from C300 controller into 4-20mA analog signals for conventional control valves and actuators. It must be paired with matched IOTA terminal assemblies for field wiring termination. It adopts high-precision D/A conversion, galvanic isolation between field circuits and backplane bus, surge protection and built-in filtering to stabilize output signals. Per-channel self-diagnosis monitors open circuit, short circuit, loop failure and module hardware faults. Per-channel fail-safe mode can be configured to hold last value or go to predefined safe state. Fully tested surplus and refurbished Honeywell CC-PAOX01 (51405039-275) modules are available for legacy Experion PKS system maintenance, spare replacement and plant retrofit projects.

Core Product Functions

• 16-channel high-density non-HART analog output module for Honeywell Experion PKS C300 Series C I/O system
• Output 4-20mA analog control signals for conventional control valves and modulating actuators
• No HART protocol support, cannot read diagnostic information from HART smart valve positioners
• Works with corresponding IOTA terminal assemblies for field wiring termination and loop connection
• High accuracy D/A conversion, galvanic isolation and noise filtering for stable analog output
• Per-channel self-diagnosis for wire break, short circuit, analog loop abnormality and module faults
• Receives PID control setpoints from C300 controller to implement continuous process closed-loop regulation
• Supports configurable per-channel fail-safe state: hold last value or preset safe output value
• Supports hot-swap operation for online rack maintenance without full system shutdown

Application Scenarios

• Legacy Honeywell Experion PKS C300 DCS Series C high density analog output control system
• Thermal power plant boiler and turbine conventional regulating valve control
• Petrochemical, refinery continuous process closed-loop control with standard 4-20mA actuators
• Oil & gas, pulp & paper plant traditional analog control loop output application
• Metallurgy, water treatment process modulation and continuous regulation control
• Legacy Experion PKS AO module replacement, maintenance and plant retrofits

FAQ (Frequently Asked Questions)

• Q: Output abnormal or valve cannot actuate after installing CC-PAOX01?
  A: Verify IOTA model matches CC-PAOX01, check valve wiring and loop load resistance, confirm output range and fail-safe configuration, inspect backplane contact and shielding grounding.
• Q: Does Honeywell CC-PAOX01 support hot-swap replacement?
  A: Yes, hot swap is supported. Risk assessment and LOTO lockout-tagout must be performed before replacement to avoid unexpected valve movement and process disturbance.
• Q: What is the difference between CC-PAOX01 and CC-PAOH01 / CC-PAON01?
  A: CC-PAOX01 is 16ch non-HART high-density AO; CC-PAOH01 is 8ch HART AO; CC-PAON01 is 8ch non-HART AO.
• Q: What accessories does it need?
  A: It must work with matching IOTA terminal block assemblies for field wiring termination.
• Q: Is Honeywell CC-PAOX01 (51405039-275) available for new DCS projects?
  A: This legacy Experion Series C I/O module is end-of-life for new installations. Only fully tested surplus and refurbished units are supplied for existing DCS system maintenance and retrofits.
