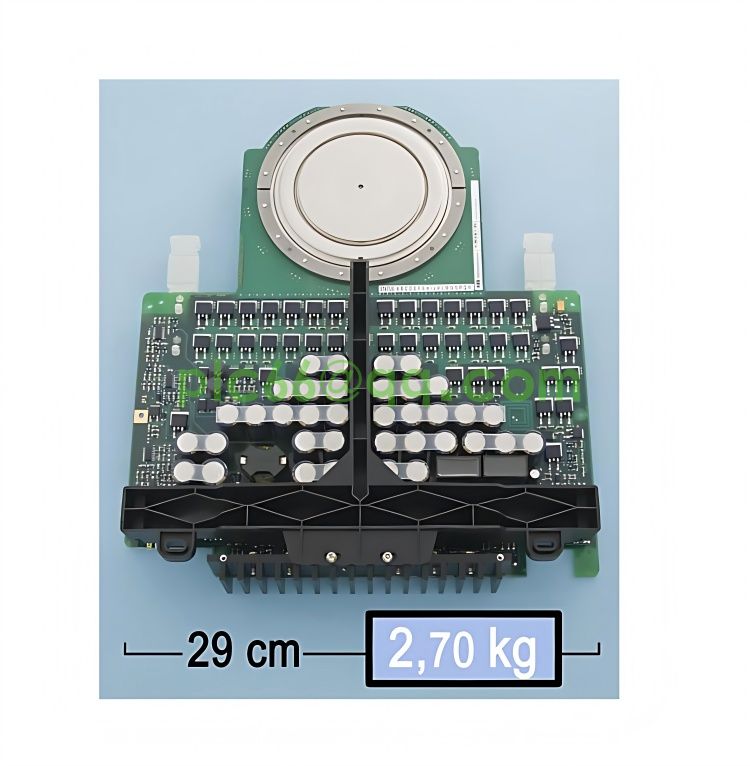

5SHX1960L0005 3BHB016120R0001 is a high-performance RC-IGCT (Reverse Conducting-IGCT) module produced by ABB, which integrates a 91mm silicon chip inside.

RC-IGCT is an advanced power semiconductor device that integrates IGCT (integrated gate commutation thyristor) and anti-parallel diodes on the same silicon wafer.

This compact and efficient design significantly simplifies the topology of the power converter, reduces the need for external components, and greatly enhances the overall reliability of the system.

This module is mainly applied in the demanding high-voltage and high-power power electronics field, such as medium and high-voltage frequency converters, active power filters,

solid-state circuit breakers, and various complex power conversion systems.

产品ID:3BHB016120R0001

ABB型号名称:5SHX 1960L0005, 91mm

目录说明:5SHX 1960L0005, 91mm; RC-IGCT

详细描述:5SHX 1960L0005, 91mm

更换产品ID（OLD）:HB016120R0001

产品净重:2.7 kg

The core advantages of this RC-IGCT module lie in its outstanding power handling capability, optimized switching performance and efficient thermal management ability.

The 91mm large chip size enables it to withstand extremely high currents and voltages, making it suitable for applications with strict requirements for transient currents and voltages.

By integrating anti-parallel diodes, it effectively reduces losses and improves energy efficiency, while simplifying the design of the gate drive circuit. Therefore,

the 5SHX1960L00053BHB016120R0001 module is a key core component in modern power electronic equipment for achieving efficient, compact,

 and highly reliable power conversion and ensuring the stable operation of the system.
