PM864AK01 3BSE018161R1 Redundant Processor Unit-KIMI
- Part number：PM864AK01 3BSE018161R1
- Product Origin：Sweden
- HS CODE：8708299000
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
ABB PM864AK01 3BSE018161R1 Redundant Processor Unit
High-Performance CPU Module for ABB AC 800M & System 800xA DCS
1. Product Overview
The ABB PM864AK01 (3BSE018161R1) is a high-performance redundant processor unit belonging to the ABB AC 800M controller series, serving as the core computing component of the System 800xA distributed control system (DCS). It features a PowerPC processor, dual redundant Ethernet interfaces, and support for 1:1 hardware hot standby redundancy, ensuring zero-interruption operation of critical industrial processes. The kit includes PM864A CPU, TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, memory backup battery, and 4-position power plug, providing a complete and reliable control solution for oil & gas, petrochemical, power generation, and chemical industries.
The ABB PM864AK01 is a key CPU unit in the ABB AC800M control system. It integrates the CPU and power module and is the core of the entire control system.

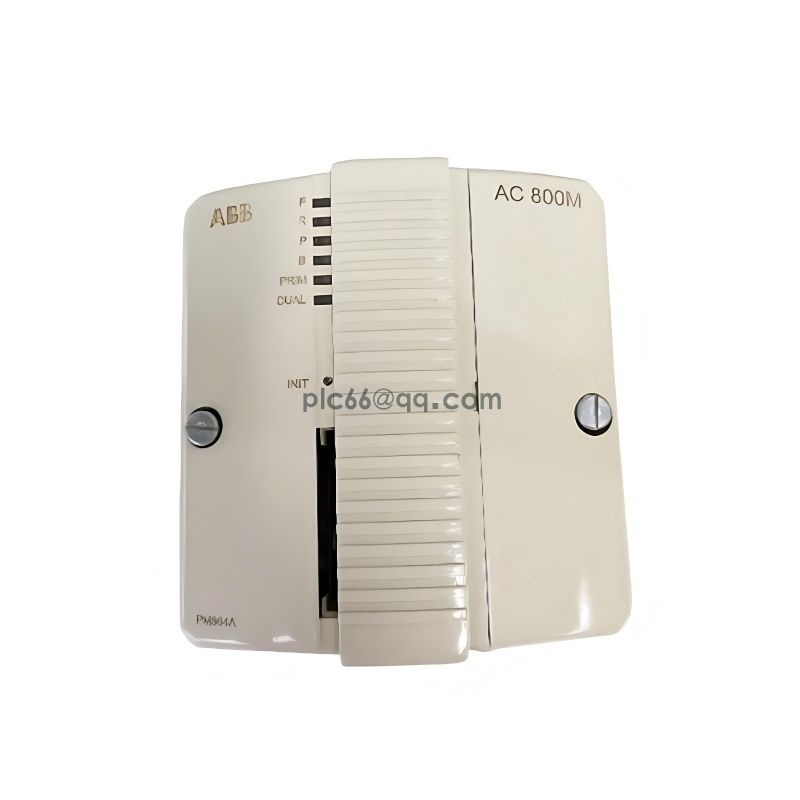

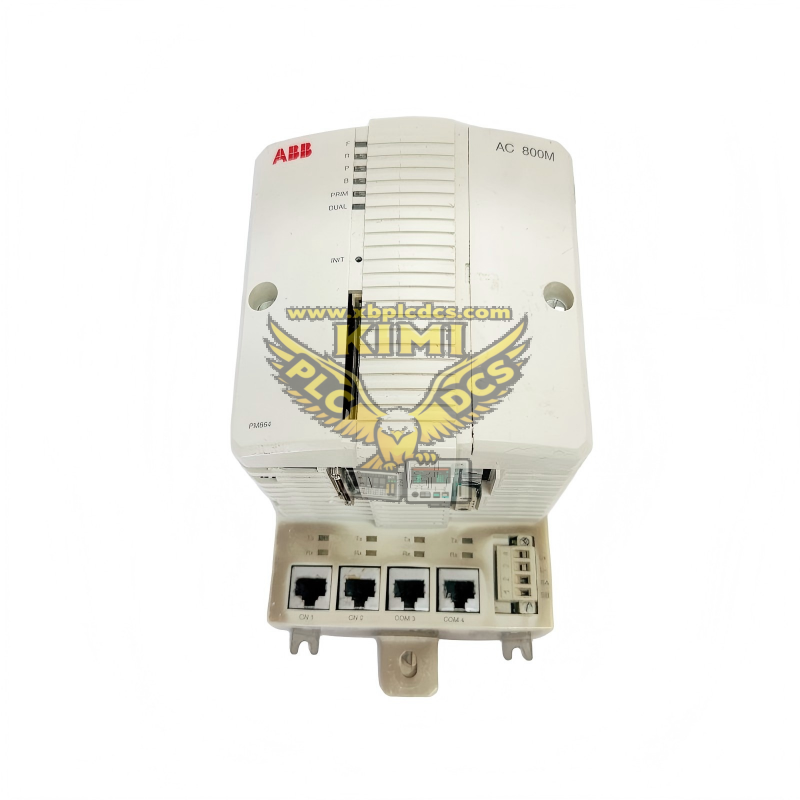

PM864AK01 Processor Unit
Central_Unit
PM864AK01 Processor Unit KitExchange No. EXC3BSE018161R1Package including:-PM864A, CPU-TP830, Baseplate, width =115mm-TB850, CEX-bus terminator-TB807, ModuleBus terminator-TB852, RCU-Link terminator-Battery for memory backup 4943013-6-4 pos Power Plug 3BSC840088R4
Ordering
853710 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading|8535|or 8536, for electric control or the distribution of electricity, including those incorporating instruments or apparatus of Chapter|90, and numerical control apparatus, other than switching apparatus of heading|8517;For a voltage not exceeding 1|000|V
85371091
Dimensions
135 mm
186 mm
119 mm
1.2 kg
Key Specifications
• Model: PM864AK01 | Ordering Number: 3BSE018161R1 | Brand: ABB | Series: AC 800M / System 800xA
• Type: Redundant Processor Unit Kit for Distributed Process Control
• Processor: 400MHz PowerPC 604e, optimized for industrial real-time control
• Memory: 512MB SDRAM (real-time data/tasks), 256MB Flash (firmware/configuration)
• Redundancy: 1:1 dual redundant hot standby, switchover time<100ms, no process interruption
• Programming Standard: IEC 61131-3 (LD, FBD, ST, IL, SFC)
• Communication Interfaces: 2 x 10/100Mbps Ethernet (CN1/CN2), 2 x RS-232C serial ports (COM3/COM4)
• Supported Protocols: TCP/IP, Modbus TCP/IP, OPC UA, PROFIBUS DP (via CI modules)
• Power Supply: 24VDC (18-32VDC wide range), typical power consumption: 25W
• Operating Temperature: 0°C to +55°C; Storage Temperature: -40°C to +85°C
• Humidity: 10-95% (non-condensing); Vibration Resistance: 5-150Hz, 1g
• Protection Class: IP20 (module); MTBF: >200,000 hours
• Dimensions: 115mm (width) × 150mm (depth) × 80mm (height); Weight: 1.2kg
• Compatibility: AC 800M racks (TP867), S800 I/O modules, System 800xA engineering tools
2. Core Features
• High-Performance Processing: 400MHz PowerPC CPU enables fast execution of complex control algorithms (PID, MPC, cascade control)
• Dual Redundant Hot Standby: 1:1 redundant configuration with<100ms switchover time, ensuring continuous operation during fault
• Complete Kit Configuration: Includes all necessary components for quick deployment and integration
• Standardized Programming: IEC 61131-3 compliance for flexible and easy program development and maintenance
• Multi-Protocol Communication: Seamless connection with fieldbus and industrial Ethernet, easy system integration
• Real-Time Multi-Tasking: Preemptive real-time operating system, ensuring real-time performance of critical control tasks
• Industrial-Grade Reliability: 0°C to +55°C operating temperature, vibration/shock resistance, MTBF over 200,000 hours
• Online Maintenance: Hot-swappable design, module replacement without system shutdown
YMGK Purchase Information
This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.
One-Stop Global Industrial Product Procurement
- Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
- Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
- Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
- Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
- Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
For additional inquiries, reach out to us at any time.
All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders
3. Typical Applications
• Oil & Gas: Offshore platform process control, pipeline transportation, refinery production line automation
• Petrochemical: Reactor temperature/pressure control, distillation unit optimization, batch process management
• Power Generation: Thermal power plant DCS control, gas turbine monitoring, renewable energy grid integration
• Chemical Manufacturing: Hazardous material handling, pressure relief interlocks, continuous process automation
• Pulp & Paper: Paper machine speed control, chemical dosing, quality monitoring systems
4. Installation & Maintenance
Installation: Mount on AC 800M standard rack (TP867); Connect 24VDC power supply; Wire Ethernet and serial cables; Complete hardware configuration via 800xA Engineering Tool; Set up redundant parameters for dual-redundant mode.
Maintenance: Daily – Check LED status (Power:Green, Run:Green, Sync:Amber, Fault:Red); Weekly – Verify CPU load, memory usage and communication status; Annual – Inspect module connections, clean dust, update firmware and 800xA software.
Safety Notes: Use ESD wrist strap during handling and installation; De-energize power for initial wiring (hot-swappable for later replacement); Follow ABB safety guidelines for redundant system configuration and testing.
