The code MSLC-2 8440-1977 identifies a Master Synchronizer and Load Control module manufactured by Woodward. This device is a critical component in power generation systems, particularly for managing multiple generators and their interaction with a utility grid.

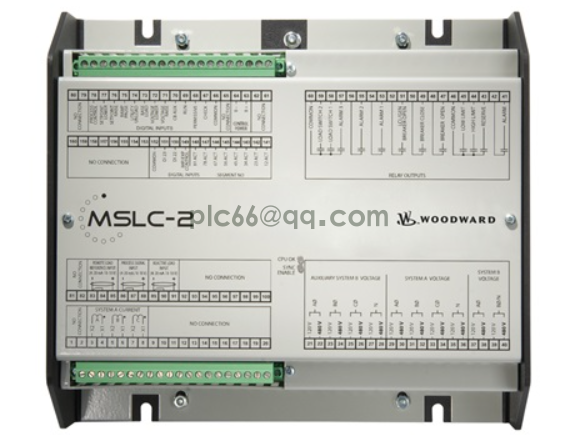

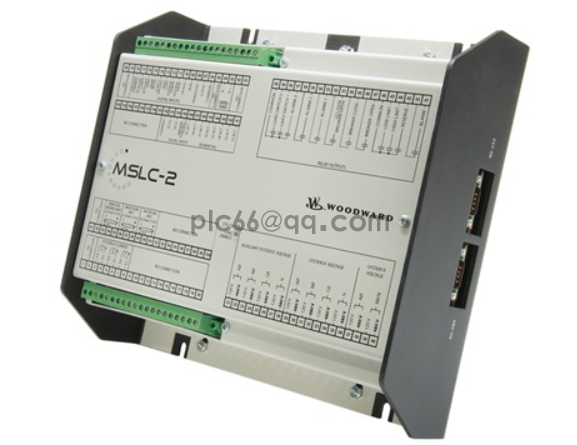

English: Woodward MSLC-2 8440-1977 Master Synchronizer and Load Control

The Woodward MSLC-2 (Master Synchronizer and Load Control) with part number 8440-1977 is a sophisticated, microprocessor-based control unit designed for three-phase electric power generation sites. It functions as a master controller, typically working in conjunction with Woodward's DSLC-2 (Digital Synchronizer and Load Control) units to manage the synchronization, load sharing, and overall power flow of multiple generators, often involving utility grid interactions.

Key Features and Functions:

• Master Control for Power Systems: The MSLC-2 provides high-level control for complex power systems, enabling precise paralleling and load control for up to 32 generators when combined with DSLC-2 units.

• Synchronization and Load Sharing: It facilitates seamless synchronization of generators with each other and with the utility grid, ensuring bumpless load transfers. It also manages load sharing between generators and controls import/export power levels with the utility.

• Utility/Intertie Management: The MSLC-2 is crucial for controlling intertie breakers between generator groups or between a power plant and the utility grid, ensuring stable and coordinated power exchange.

• Communication: It utilizes a dedicated Ethernet communication network for seamless communication with DSLC-2 units, allowing for comprehensive monitoring and control across the power system. A second Ethernet port typically provides customer remote control and monitoring capability using Modbus TCP, facilitating easy integration with DCS (Distributed Control Systems) and PLCs (Programmable Logic Controllers). It also supports Modbus RTU via an RS-485 port.

• Input/Output: The 8440-1977 variant specifically features 1A CT (Current Transformer) Inputs and operates on a power supply of 8 to 40 VDC (typically 12/24 VDC).

• Flexible Operation: It can operate in strictly synchronizer mode and supports 3-phase, 4-wire wiring configurations.

• Applications: Commonly used in industrial, utility, and marine power generation applications where precise control and coordination of multiple generators are required.

中文：伍德沃德 (Woodward) MSLC-2 8440-1977 主同步器和负荷控制器

伍德沃德 (Woodward) MSLC-2 (主同步器和负荷控制器) 部件号为 8440-1977，是一款先进的、基于微处理器的控制单元，专为三相发电厂设计。它作为主控制器，通常与伍德沃德的 DSLC-2 (数字同步器和负荷控制器) 单元配合使用，管理多个发电机的同步、负荷分配以及整体电力流，通常涉及与公用电网的互动。

主要特点和功能：

• 电力系统主控： MSLC-2 为复杂的电力系统提供高级控制，与 DSLC-2 单元结合使用时，可实现多达 32 台发电机的精确并联和负荷控制。

• 同步和负荷分配： 它促进发电机之间以及发电机与公用电网之间的无缝同步，确保无扰动负荷转移。它还管理发电机之间的负荷分配，并控制与公用电网的进出口电力水平。

• 公用/联络管理： MSLC-2 对于控制发电机组之间或发电厂与公用电网之间的联络断路器至关重要，确保稳定协调的电力交换。

• 通讯： 它利用专用的以太网通信网络与 DSLC-2 单元进行无缝通信，从而实现对电力系统的全面监控和控制。第二个以太网端口通常通过 Modbus TCP 提供客户远程控制和监控功能，便于与 DCS（分布式控制系统）和 PLC（可编程逻辑控制器）集成。它还支持通过 RS-485 端口的 Modbus RTU。

• 输入/输出： 8440-1977 型号特别配备 1A CT（电流互感器）输入，并采用 **8 至 40 VDC（通常为 12/24 VDC）**的电源供电。

• 灵活操作： 它可以在严格的同步器模式下运行，并支持三相四线制接线配置。

• 应用： 广泛应用于工业、公用事业和船舶发电领域，需要精确控制和协调多台发电机的情况
