The code IC697CPX928-FE refers to a Central Processing Unit (CPU) module from the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) family. This module acts as the "brain" of the PLC, designed to execute user programs for controlling industrial machines, processes, and material handling systems.

English: GE Fanuc IC697CPX928-FE Central Processing Unit (CPU) Module

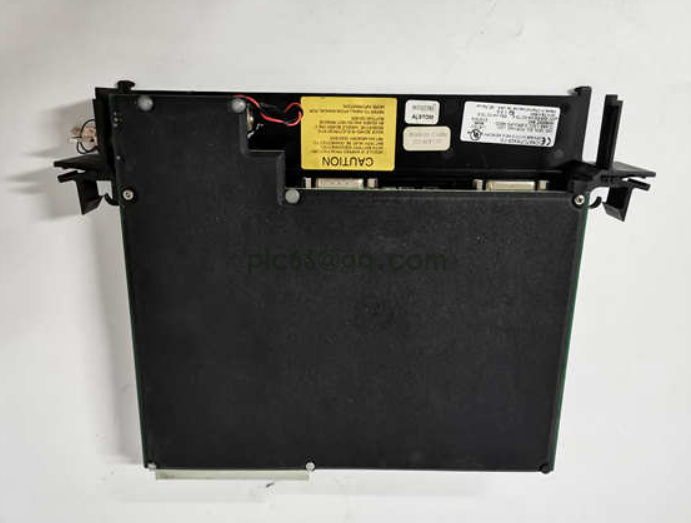

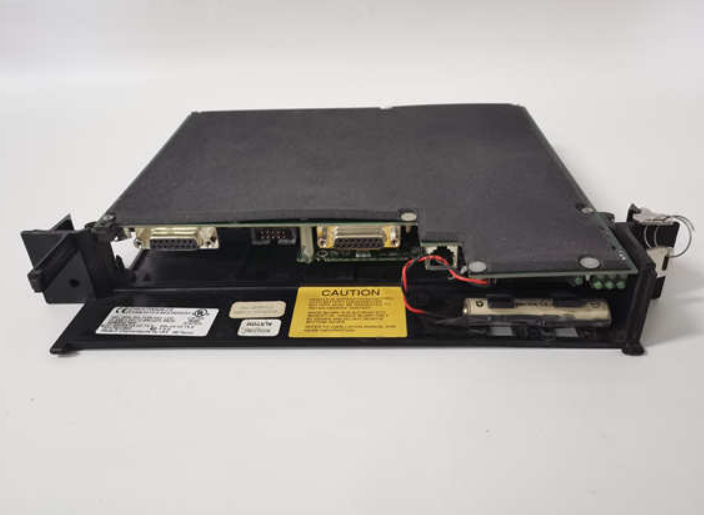

The GE Fanuc IC697CPX928-FE is a single-slot Central Processing Unit (CPU) module within the Series 90-70 PLC system. This CPU is engineered for robust industrial control, providing the processing power necessary for real-time automation tasks. The "-FE" suffix generally indicates a specific revision or feature set for this model.

Key Features and Specifications:

• Processor: It's driven by a 96MHz 80486DX4 microprocessor, offering high-speed processing with a typical scan rate of 0.4 µs per Boolean function, ensuring quick response times in critical applications.

• Memory: The module comes with 6MB of battery-backed RAM for storing user programs, configuration data, and register values. Additionally, it has 256KB of non-volatile user flash memory for CPU firmware and extra data storage.

• Communication Ports: It includes several built-in serial ports for versatile connectivity:

• One RS232 serial port

• Two RS485 serial ports

• One Factory Reset portThese ports support various protocols like SNP (Slave), Break-Free SNP (Slave), SNPX, and RTU, enabling communication with programming software, Human-Machine Interfaces (HMIs), and other devices.

• I/O Capacity: The IC697CPX928-FE can manage a substantial number of inputs and outputs, supporting up to 12,000 I/Os (any mix of discrete and analog) and up to 8,000 analog I/Os. It also handles 32-bit floating-point data for complex calculations.

• Software Configuration: This CPU module is configured entirely through software, eliminating the need for physical jumpers or DIP switches for hardware parameter settings, simplifying setup.

• Status Indicators: Seven LED indicators on the front panel provide real-time status updates, which are helpful for diagnostics and troubleshooting.

• Robust Design: Built for demanding industrial environments, it offers reliable performance. In some conditions, it might require forced air cooling (e.g., a 70 CFM fan) to maintain its operating temperature.

中文：GE Fanuc IC697CPX928-FE 中央处理单元 (CPU) 模块

GE Fanuc IC697CPX928-FE 是 GE Fanuc Series 90-70 可编程逻辑控制器 (PLC) 系统中的一个中央处理单元 (CPU) 模块。该模块是 PLC 的“大脑”，旨在执行用户程序，用于控制工业机器、过程和物料搬运系统。其中，“-FE”后缀通常表示该型号的特定修订版本或功能集。

主要特点和规格：

• 处理器： 它由一个 96MHz 80486DX4 微处理器 驱动，可为工业应用提供高速处理能力。其典型扫描速率为每布尔函数 0.4 微秒，确保关键应用中的快速响应时间。

• 内存： 该模块包含 6MB 的电池备用 RAM，用于存储用户程序、配置数据和寄存器值。此外，它还有 256KB 的非易失性用户闪存，用于存储 CPU 固件和额外的用户数据。

• 通信端口： 它内置了多个串行端口，可实现多功能连接：

• 一个 RS232 串行端口

• 两个 RS485 串行端口

• 一个 Factory Reset 端口这些端口支持 SNP（从站）、无中断 SNP（从站）、SNPX 和 RTU 等多种协议，可实现与编程软件、人机界面 (HMI) 和其他设备的灵活连接。

• I/O 容量： IC697CPX928-FE 可以处理大量的输入和输出，支持多达 12,000 个 I/O（离散量和模拟量任意组合） 和多达 8,000 个模拟量 I/O。它还支持 32 位浮点数据，用于复杂计算。

• 软件配置： 该 CPU 模块完全通过编程软件进行配置，无需物理跳线或 DIP 开关进行硬件参数设置，简化了设置过程。

• 状态指示灯： 前面板上的七个 LED 指示灯 提供实时状态更新，有助于诊断和故障排除。

• 坚固设计： 它专为严苛的工业环境而设计，提供可靠的性能。在某些条件下，它可能需要强制风冷（例如，70 CFM 风扇）以保持其工作温度。
