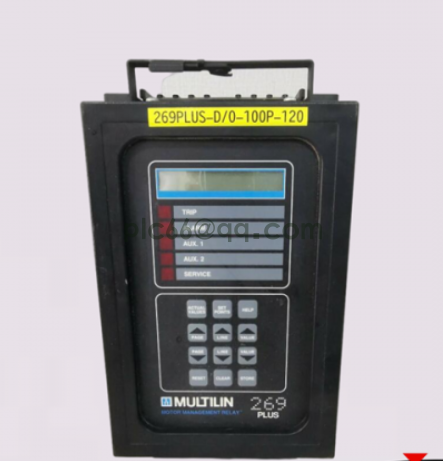

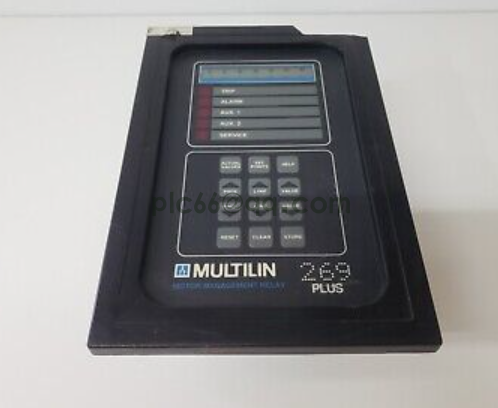

The 269PLUS-100P-120 is an Allen-Bradley (Rockwell Automation) Motor Protection Relay, part of the MPR-Plus family. It is designed to provide comprehensive protection, control, and monitoring for motors in industrial applications.

English Description

The Allen-Bradley 269PLUS-100P-120 is a MPR-Plus Motor Protection Relay. This device is a sophisticated electronic relay that offers advanced capabilities beyond traditional thermal overload relays, providing robust protection and detailed diagnostic information for electric motors. It is commonly used in various industrial environments to safeguard motors from conditions like overcurrent, undervoltage, phase imbalance, and high temperature.

Key features and characteristics of the 269PLUS-100P-120 include:

• Product Family: MPR-Plus (Motor Protection Relay Plus).

• Current Range: The "100P" in the part number indicates a 100 Ampere (A) primary current rating. This specifies the maximum current it can directly monitor.

• Control Power Voltage: The "120" in the part number signifies a 120V AC (Alternating Current) control power voltage. This is the voltage required to power the relay itself.

• Protection Functions: The MPR-Plus family provides a wide array of protection features, including:

• Thermal Overload Protection (Class 5-30): Protects the motor from overheating due to sustained overcurrent.

• Phase Loss/Imbalance Protection: Detects missing phases or significant voltage/current imbalances that can damage the motor.

• Stall Protection: Protects against motor damage during locked rotor conditions.

• Undercurrent/Overcurrent Protection: Monitors for loads that are too low or too high.

• Jam Protection: Detects conditions where the motor is overloaded to the point of stalling or near-stalling.

• Ground Fault Protection: Protects against electrical shock and equipment damage caused by current leakage to ground.

• Under/Over Voltage Protection: Safeguards the motor from voltage fluctuations.

• Power Factor Monitoring: Can monitor the power factor of the motor.

• Communication: Typically supports communication protocols such as Modbus RTU or DeviceNet, allowing for integration into larger control systems (PLCs, DCS) for remote monitoring, control, and data acquisition.

• Display and Keypad: Features a built-in liquid crystal display (LCD) and keypad for local programming, status viewing, and diagnostic data retrieval.

• Diagnostic Information: Provides extensive diagnostic data, including trip history, motor operating parameters (current, voltage, power factor), and event logs, aiding in troubleshooting and predictive maintenance.

• Mounting: Designed for direct mounting to contactors or stand-alone mounting on DIN rails or panels.

• Applications: Widely used in pump control, fan control, conveyor systems, compressor control, and other applications where reliable motor protection and detailed operational insights are crucial.

中文描述

269PLUS-100P-120 是 艾伦-布拉德利 (罗克韦尔自动化) 生产的电机保护继电器，属于 MPR-Plus 系列。它旨在为工业应用中的电机提供全面的保护、控制和监控。

主要特点和功能

艾伦-布拉德利 269PLUS-100P-120 是一款 MPR-Plus 电机保护继电器。这是一种复杂的电子继电器，提供超越传统热过载继电器的先进功能，为电机提供强大的保护和详细的诊断信息。它通常用于各种工业环境中，以保护电机免受过电流、欠压、相不平衡和高温等情况的损害。

269PLUS-100P-120 的主要特点和功能包括：

• 产品系列： MPR-Plus（电机保护继电器增强型）。

• 电流范围： 部件号中的“100P”表示100 安培 (A) 的一次电流额定值。这指定了它可以直接监控的最大电流。

• 控制电源电压： 部件号中的“120”表示120V 交流 (AC) 控制电源电压。这是继电器本身所需的供电电压。

• 保护功能： MPR-Plus 系列提供了广泛的保护功能，包括：

• 热过载保护（5-30 级）： 保护电机免受持续过电流导致过热的损害。

• 缺相/相不平衡保护： 检测缺相或可能损坏电机的显着电压/电流不平衡。

• 堵转保护： 保护电机在转子锁死条件下免受损坏。

• 欠流/过流保护： 监测过低或过高的负载。

• 卡滞保护： 检测电机过载至堵转或接近堵转的状态。

• 接地故障保护： 防止因电流泄漏到地而导致的触电和设备损坏。

• 欠压/过压保护： 保护电机免受电压波动的损害。

• 功率因数监测： 可以监测电机的功率因数。

• 通信： 通常支持 Modbus RTU 或 DeviceNet 等通信协议，允许集成到更大的控制系统（PLC、DCS）中，用于远程监控、控制和数据采集。

• 显示和键盘： 配备内置液晶显示屏 (LCD) 和键盘，用于本地编程、状态查看和诊断数据检索。

• 诊断信息： 提供广泛的诊断数据，包括跳闸历史、电机运行参数（电流、电压、功率因数）和事件日志，有助于故障排除和预测性维护。

• 安装： 设计用于直接安装到接触器或独立安装在 DIN 导轨或面板上。

• 应用： 广泛应用于泵控制、风扇控制、输送系统、压缩机控制以及其他需要可靠电机保护和详细运行洞察的关键应用。
