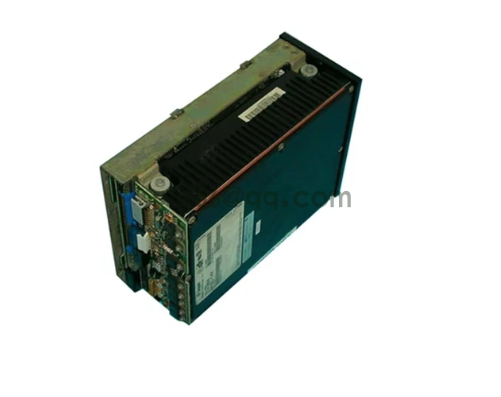

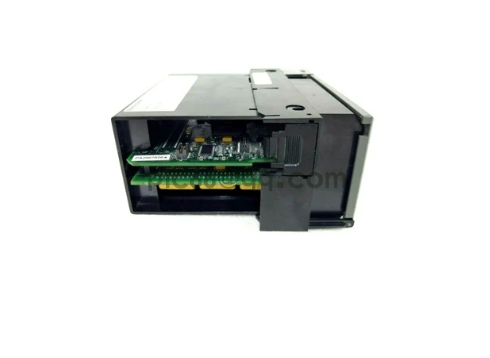

The Honeywell FS-CPCHAS-0002 is a chassis for a control processor, primarily used within Honeywell's industrial automation systems, specifically the Experion PKS Distributed Control System (DCS) and the Safety Manager System (SMS).

English Description

The Honeywell FS-CPCHAS-0002 is a robust and essential component for housing and connecting control processor modules in industrial control environments. It provides the physical and electrical infrastructure necessary for the operation of critical control systems.

Key features and characteristics of the FS-CPCHAS-0002 include:

• Function: It serves as a chassis (or rack) designed to accommodate and provide power and communication for Control Processor (CP) modules. In redundant configurations, it can support dual CP units, ensuring high availability and fault tolerance for critical applications.

• System Compatibility: It is integral to Honeywell's Experion PKS Distributed Control System (DCS) and the Honeywell Safety Manager System (SMS). This indicates its use in demanding process control, emergency shutdown, fire and gas detection, and turbine control systems.

• Capacity: The chassis is designed to house one control processor module in a simplex (non-redundant) setup or two control processor modules for redundant operation. It also typically provides slots for I/O expansion modules and communication expansion modules, allowing for system scalability.

• Robust Construction: Built from rugged steel or similar robust metal, it's designed to withstand harsh industrial environments, ensuring durability and long-term reliability.

• Integrated Power and Communication: The chassis often includes a built-in power supply that provides power to the installed modules and a backplane for high-speed communication between the control processor modules and I/O modules.

• Security Features: Some versions may feature a lockable front door to prevent unauthorized access and enhance security.

• Certifications: Given its use in safety systems, it may be SIL 3 certified for safety-critical applications, ensuring compliance with high safety integrity levels.

• Ease of Maintenance: It often features a QMR (Quick Module Replacement) design, facilitating easy maintenance and reducing downtime.

• Power Supply: Typically powered by a 24 VDC power supply.

• Physical Specifications:

• Dimensions: Approximately 19.7 x 12.2 x 3.5 inches (49.9 x 31.0 x 9.0 cm) or similar, though some sources state 180mm (W) x 132mm (H) x 489mm (D).

• Weight: Varies, but commonly around 8.8 pounds (4.0 kg) or 6 kg.

• Operating Temperature: Typically 32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius).

The FS-CPCHAS-0002 is a foundational element for building reliable and redundant control architectures in complex industrial processes.

中文描述

霍尼韦尔 FS-CPCHAS-0002 是一个控制处理器机箱，主要用于霍尼韦尔的工业自动化系统，特别是 Experion PKS 分布式控制系统 (DCS) 和 Safety Manager 系统 (SMS)。

主要特点和功能

霍尼韦尔 FS-CPCHAS-0002 是一个坚固且必不可少的组件，用于在工业控制环境中容纳和连接控制处理器模块。它为关键控制系统的运行提供必要的物理和电气基础设施。

FS-CPCHAS-0002 的主要特点和功能包括：

• 功能： 它作为一个机箱（或机架），旨在容纳并为控制处理器 (CP) 模块提供电源和通信。在冗余配置中，它可以支持双 CP 单元，从而为关键应用提供高可用性和容错性。

• 系统兼容性： 它是霍尼韦尔 Experion PKS 分布式控制系统 (DCS) 和 霍尼韦尔 Safety Manager 系统 (SMS) 的组成部分。这表明它用于要求苛刻的流程控制、紧急停车系统、火气检测系统和汽轮机控制系统。

• 容量： 该机箱设计用于在单工（非冗余）设置中容纳一个控制处理器模块，或在冗余操作中容纳两个控制处理器模块。它通常还提供用于 I/O 扩展模块和通信扩展模块的插槽，从而实现系统可扩展性。

• 坚固结构： 由坚固的钢材或类似的坚固金属制成，旨在承受恶劣的工业环境，确保耐用性和长期可靠性。

• 集成电源和通信： 该机箱通常包含一个内置电源，为安装的模块供电，以及一个用于控制处理器模块和 I/O 模块之间高速通信的背板。

• 安全特性： 某些版本可能配有可锁定的前门，以防止未经授权的访问并增强安全性。

• 认证： 鉴于其在安全系统中的应用，它可能通过 SIL 3 认证，适用于安全关键应用，确保符合高安全完整性等级。

• 易于维护： 它通常采用 QMR（快速模块更换）设计，便于维护并减少停机时间。

• 电源： 通常由 24 VDC 电源供电。

• 物理规格：

• 尺寸： 大约 19.7 x 12.2 x 3.5 英寸（49.9 x 31.0 x 9.0 厘米）或类似尺寸，尽管一些来源提及 180毫米（宽）x 132毫米（高）x 489毫米（深）。

• 重量： 不同，但通常在 8.8 磅（4.0 公斤）或 6 公斤左右。

• 工作温度： 通常为 32 至 122 华氏度（0 至 50 摄氏度）。

FS-CPCHAS-0002 是在复杂工业过程中构建可靠和冗余控制架构的基础要素
