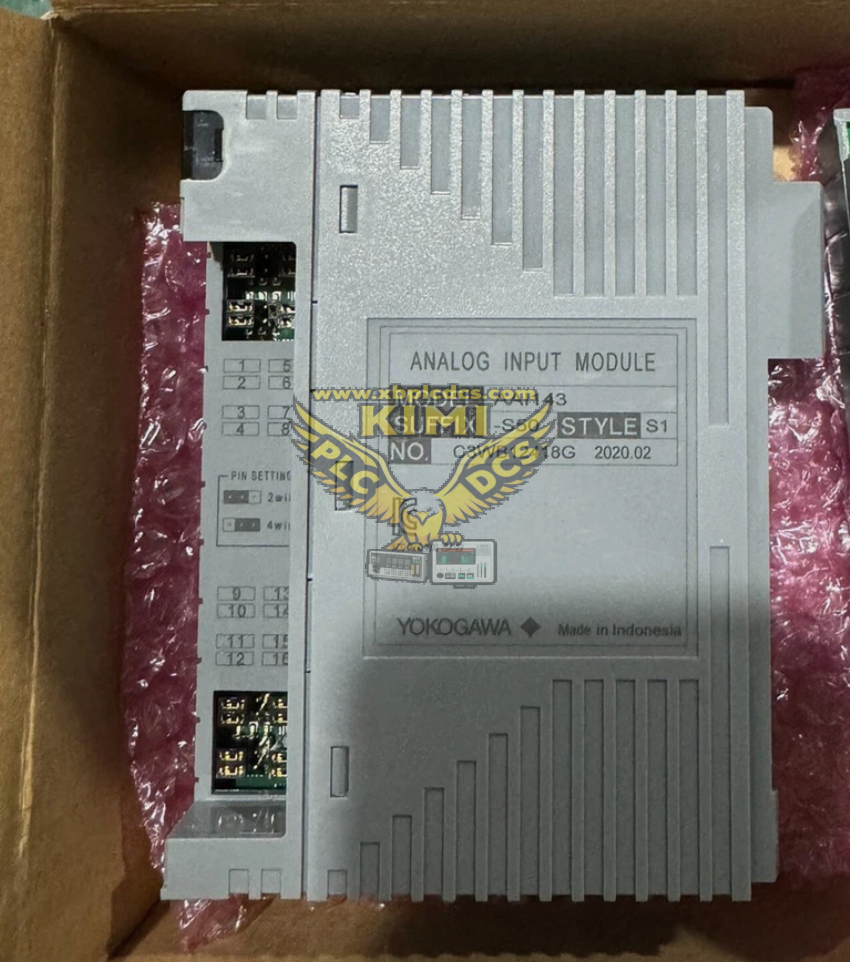

Yokogawa AAI143-S50 is a standard 16-channel galvanically isolated analog input module belonging to the Yokogawa FIO (Field Input/Output) series, fully compatible with CENTUM VP and CENTUM CS3000 distributed control systems. It is designed to collect standard 4–20mA DC current signals from field transmitters including pressure, flow, temperature and level sensors. Each channel features full channel-to-system isolation with 1500VAC dielectric withstand voltage to eliminate ground loop noise and electromagnetic interference in heavy industrial environments. The module adopts 16-bit high-precision A/D conversion with measurement accuracy up to ±16µA, supporting both 2-wire loop-powered transmitters and external 4-wire signal sensors via channel DIP pin configuration. It supports dual redundant hot-backup installation to guarantee uninterrupted data acquisition for critical process loops, with a 10ms fast signal update cycle for high-speed process monitoring. Equipped with pressure-clamp terminal blocks for stable field wiring, conformal coated PCB for dust, humidity and chemical gas resistance, the module operates stably within 0°C ~ +60°C cabinet temperature range, powered by 24VDC rack backplane supply. The S50 version is the basic non-HART variant, while the AAI143-H50 model adds built-in HART communication for intelligent transmitter parameter access. Front-panel LED indicators display module power status, channel fault alarms and communication bus activity for on-site maintenance diagnostics.

• 16 independent isolated channels for synchronous collection of 4–20mA analog process signals from field transmitters
• Full galvanic isolation between each input channel and DCS system backplane to suppress common-mode noise and ground loop interference
• Flexible channel configuration via DIP switches to switch between 2-wire loop supply and external 4-wire transmitter signal modes
• 16-bit high-resolution A/D conversion with ±16µA full-scale accuracy to capture subtle changes in process parameters
• Dual redundant module backup support; automatic seamless switchover without data loss when primary module malfunctions
• Built-in field transmitter loop power supply with over-current short-circuit protection to prevent damage to field sensors
• Comprehensive channel self-diagnosis: open circuit, short circuit, out-of-range signal and internal hardware fault detection
• Fast 10ms signal sampling and update cycle for high dynamic response closed-loop process control
• Front panel multi-status LED indication for power operation, module fault and individual channel abnormal alarm
• Stable data transmission via FIO backplane bus to CENTUM VP/CS3000 control station for real-time PID calculation and HMI display
• Configurable signal filtering to eliminate high-frequency field noise and stabilize fluctuating analog readings
• Standard pressure-clamp terminal wiring interface, compatible with Yokogawa dedicated terminal boards and field cable adapters

• Petrochemical Refineries: Pressure, temperature, flow and liquid level signal acquisition for distillation, cracking and reaction process control loops
• Thermal Power Plants: Boiler drum level, steam pressure, flue gas temperature and feedwater flow monitoring DCS I/O racks
• Oil & Gas Onshore/Offshore Facilities: Pipeline pressure, wellhead flow and tank storage level continuous measurement
• Chemical Fertilizer Plants: Ammonia synthesis reactor temperature, gas flow and catalyst pressure closed-loop monitoring
• Water & Wastewater Treatment: Tank level, chemical dosing flow, pH transmitter and water pressure signal collection
• Metallurgical Steel Mills: Furnace temperature, cooling water flow and rolling mill hydraulic pressure analog signal input
• Pharmaceutical & Fine Chemical Manufacturing: Precision reactor temperature, vacuum and raw material flow monitoring systems
• Legacy Yokogawa DCS Retrofit: Spare replacement analog input module for aging CENTUM CS3000 control cabinets

• Q: AAI143-S50 front fault LED flashes continuously after power on, no analog data uploaded to DCS?
  A: Check loose backplane insertion, abnormal 24VDC rack power supply, short-circuited field transmitter wiring, or damaged module internal A/D circuit; re-seat the module and inspect terminal block wiring short faults.
• Q: Individual channel displays open-circuit alarm even though the field transmitter is working normally?
  A: Verify loose terminal wiring, broken field signal cable, incorrect 2-wire/4-wire DIP switch setting, or excessive loop resistance exceeding module rated range.
• Q: Can AAI143-S50 support HART digital communication with smart transmitters?
  A: No, the S50 version is analog-only; select AAI143-H50 variant if HART multi-drop communication and remote transmitter calibration are required.
• Q: Is hot swapping supported for AAI143-S50 when the FIO rack remains powered on?
  A: Single non-redundant modules cannot be hot swapped. For dual-redundant pairs, the backup card can be replaced online; full rack power-off is mandatory for single module maintenance to avoid bus communication crash.
• Q: Analog readings drift severely with unstable fluctuating values during long-term operation?
  A: Add signal filtering parameters in DCS configuration; separate field signal cables from high-current power cables to reduce EMI; clean dust on module terminals and re-tighten wiring clamps.
• Q: Why does the module fail to recognize 2-wire loop-powered transmitters after wiring?
  A: Confirm corresponding channel DIP switch is set to 2-wire mode; check loop current limit protection triggered by cable short-circuit; verify transmitter resistance compatibility.
• Q: Is Yokogawa AAI143-S50 still in mass production for new DCS projects?
  A: This classic FIO module is still available as standard spare parts; newer compact I/O series are recommended for fully new greenfield construction projects.
