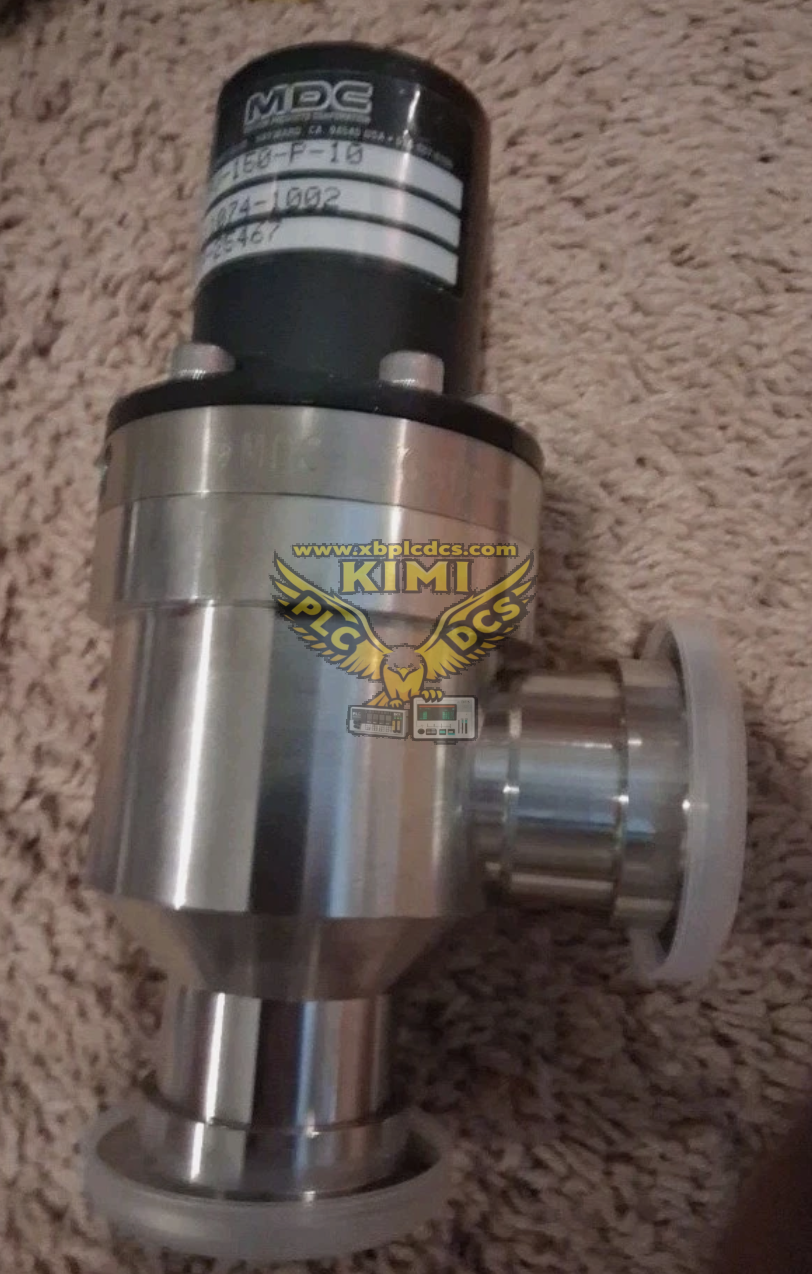

MDC KAV-150-P-10 Pneumatic Vacuum Angle Valve

Product Description

The MDC KAV-150-P-10 is a pneumatically actuated vacuum angle valve designed for high-vacuum process systems. It features stainless steel wetted surfaces, spring-loaded fail-safe closing mechanism, and KF flange connection for vacuum piping. This valve is widely deployed in semiconductor manufacturing, vacuum coating, analytical instruments and research vacuum systems. It is supplied as new surplus or fully tested refurbished spare parts for vacuum equipment maintenance and upgrade projects.

Product Functions

• Control opening and closing of vacuum pipelines for high-vacuum isolation
• Pneumatic air actuation for remote automatic control
• Spring return fail-safe design, valve closes when air supply fails
• Stainless steel body for low outgassing and vacuum compatibility
• Support vacuum pressure isolation between different chambers and pumps
• Optional position feedback switch for valve open/closed status monitoring

Application Scenarios

• Semiconductor thin film deposition and etching vacuum process tools
• Vacuum coating, sputtering and evaporation equipment
• Laboratory high-vacuum test systems and analytical instruments
• Industrial vacuum furnace and degassing processing lines
• Spare replacement and repair of existing MDC KAV series vacuum valve assemblies
