MOOG Animatics SmartMotor SM2315DT-BRKETH Integrated Servo Motor

Product Description

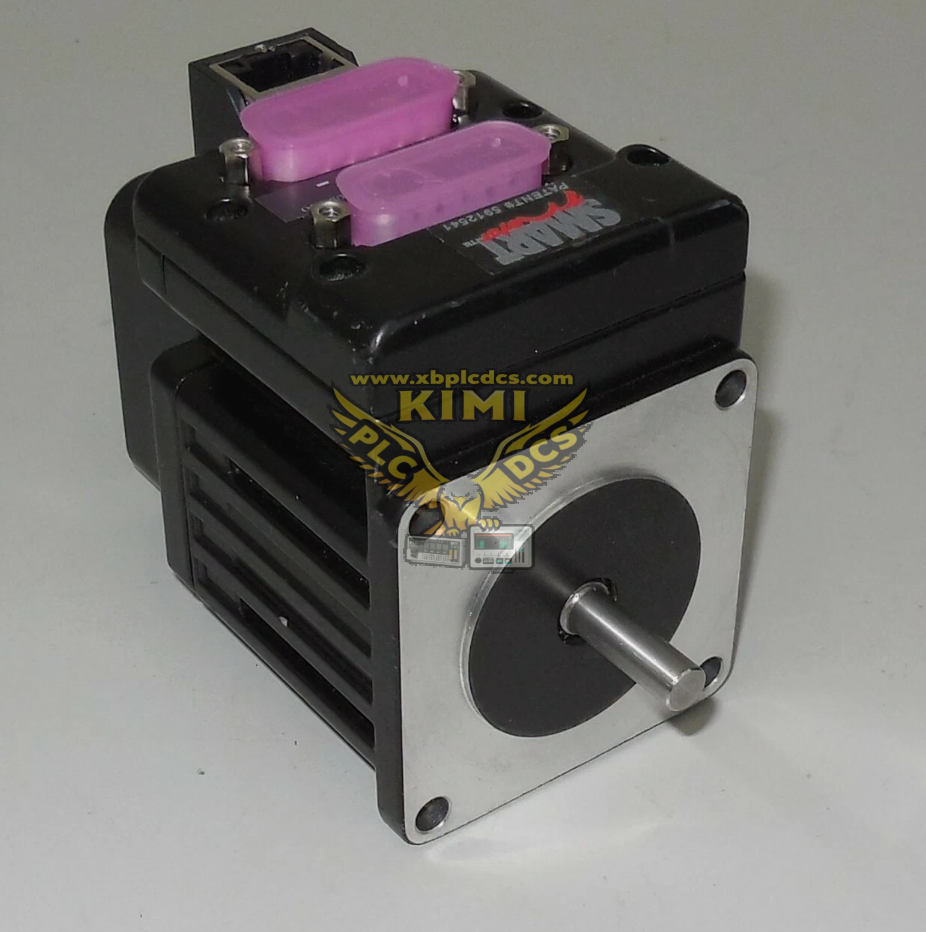

The MOOG Animatics SM2315DT-BRKETH is a NEMA23 frame all-in-one SmartMotor integrated servo drive motor. It integrates brushless motor, high-resolution encoder, servo amplifier, motion controller, Ethernet communication port and built-in electromagnetic brake in one compact unit. It supports independent onboard motion programming via SMI software, and adopts Combitronic™ technology for multi-axis synchronous networking. It runs on 24–48 VDC wide-range power supply and is widely used for precision automated motion control. This legacy servo motor is supplied as new surplus or fully tested refurbished spare parts for packaging, automation machinery and laboratory equipment retrofit.

Product Functions

• Integrated servo solution: motor, encoder, drive and motion controller in single housing
• Built-in electromagnetic brake (BRK) for power-off holding and position locking
• Ethernet interface for host communication, parameter download and real-time motion control
• Support SMI programming software for standalone motion sequence, electronic cam and registration tasks
• Combitronic multi-axis synchronization, multiple motors can coordinate without external PLC
• Onboard digital I/O for trigger signals, sensor input and output control

Application Scenarios

• Packaging machinery, labeling machines and automated assembly stations
• Laboratory automation, test equipment and precision positioning stages
• Material handling, conveyor systems and AGV auxiliary axes
• CNC auxiliary axes, laser processing and pick-and-place automation equipment
• Spare replacement and upgrade of existing Animatics SmartMotor servo systems
