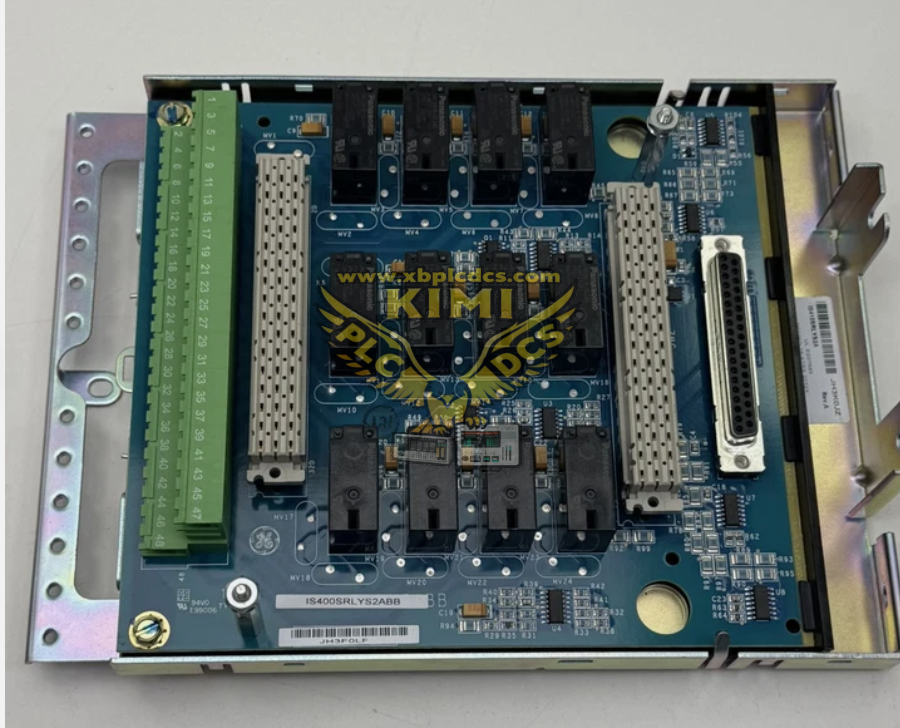

GE IS400SRLYS2A Simplex Relay Output Terminal Board

Product Description

The GE IS400SRLYS2A is a simplex relay output terminal board designed for GE Speedtronic Mark VIe and Mark VIeS safety control systems. It is the base board variant of the IS410SRLYS2A series, supporting optional IS400WROBH1A wetting daughterboard for loop integrity monitoring. It provides 12 Form‑C dry contact relay channels for simplex discrete output control, paired with IS420YDOAS1B I/O pack. It is widely used for turbine auxiliary control and non‑voting safety interlock circuits, serving as a critical spare part for power plant and oil & gas control rack maintenance and retrofit.

Product Functions

• Offer 12 isolated Form‑C dry contact relay outputs for simplex switching control
• Compatible with IS400WROBH1A daughterboard to add contact wetting, fuse and loop fault diagnostics
• Receive output commands from IS420YDOAS1B digital output I/O pack
• Drive solenoid valves, alarm indicators, contactors and auxiliary trip relays
• Galvanic isolation between control logic and field load circuits to protect I/O hardware
• Screw terminal block design for convenient field wiring, testing and channel troubleshooting

Application Scenarios

• Gas turbine and steam turbine Mark VIe / Mark VIeS simplex auxiliary control systems
• Power plant boiler, generator and BOP auxiliary equipment interlock cabinets
• Oil & gas and petrochemical non‑TMR safety and auxiliary alarm control racks
• Burner management, fire and gas auxiliary indication circuits
• Spare replacement and repair of existing GE Speedtronic Mark VIe control racks
