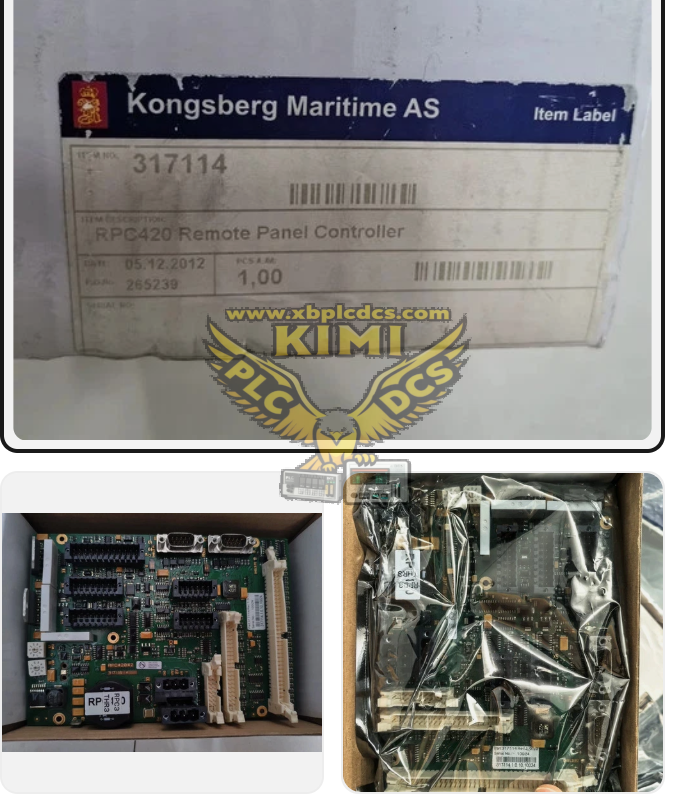

KONGSBERG RPC420 317114 Remote Process Controller

Product Description

RPC420, part number 317114, is a remote process communication processor developed by Kongsberg Maritime for K-CHIEF 500 / K-CHIEF 600 marine integrated automation system. It acts as a local sub-controller and communication gateway in distributed marine control network, managing a cluster of remote I/O modules. Equipped with embedded ARM processor and real-time operating system, it supports dual redundant CAN fieldbus and 10/100Mbps Ethernet interface. Rated power supply is 24VDC ±10%, typical power consumption 8W. With conformal coated PCB, it is built to withstand vibration, humidity and salt fog onboard vessels, IP20 for cabinet installation, and can support up to 256 I/O points by connecting RIO420 series I/O expansion modules.

Key Functions

• Local logic processing and data collection for connected RIO420 remote I/O modules
• Dual redundant CAN bus communication to ensure reliable data transmission with main RCU controller
• Ethernet port for system configuration, data upload and diagnostic access
• Built-in self-diagnosis, watchdog function and fault event logging
• Support marine proprietary communication protocol, TCP/IP and optional OPC UA
• Galvanic isolation on communication ports to suppress electromagnetic interference
• Wide operating temperature range: -25°C ~ +70°C, marine anti-vibration and salt mist resistance

Application Scenarios

• Vessel engine room monitoring and auxiliary machinery control system
• Offshore platform automation, DP dynamic positioning control cabinets
• Ship alarm monitoring system and cargo / ballast control
• Kongsberg K-CHIEF 500 / 600 distributed remote I/O substation
• Marine power management and safety related signal acquisition network

FAQ

Q1: What I/O modules can RPC420 connect to?
A1: It pairs with RIO420 series remote I/O modules, maximum up to 256 I/O points.

Q2: What is the power requirement?
A2: 24VDC ±10%, typical consumption 8W.

Q3: Common fault symptoms?
A3: CAN communication dropout, Ethernet link failure, I/O data loss, watchdog fault alarm.

Q4: Is it suitable for Ex Zone 2?
A4: This unit is installed inside control cabinet; matched I/O modules support Ex Zone 2 application.
