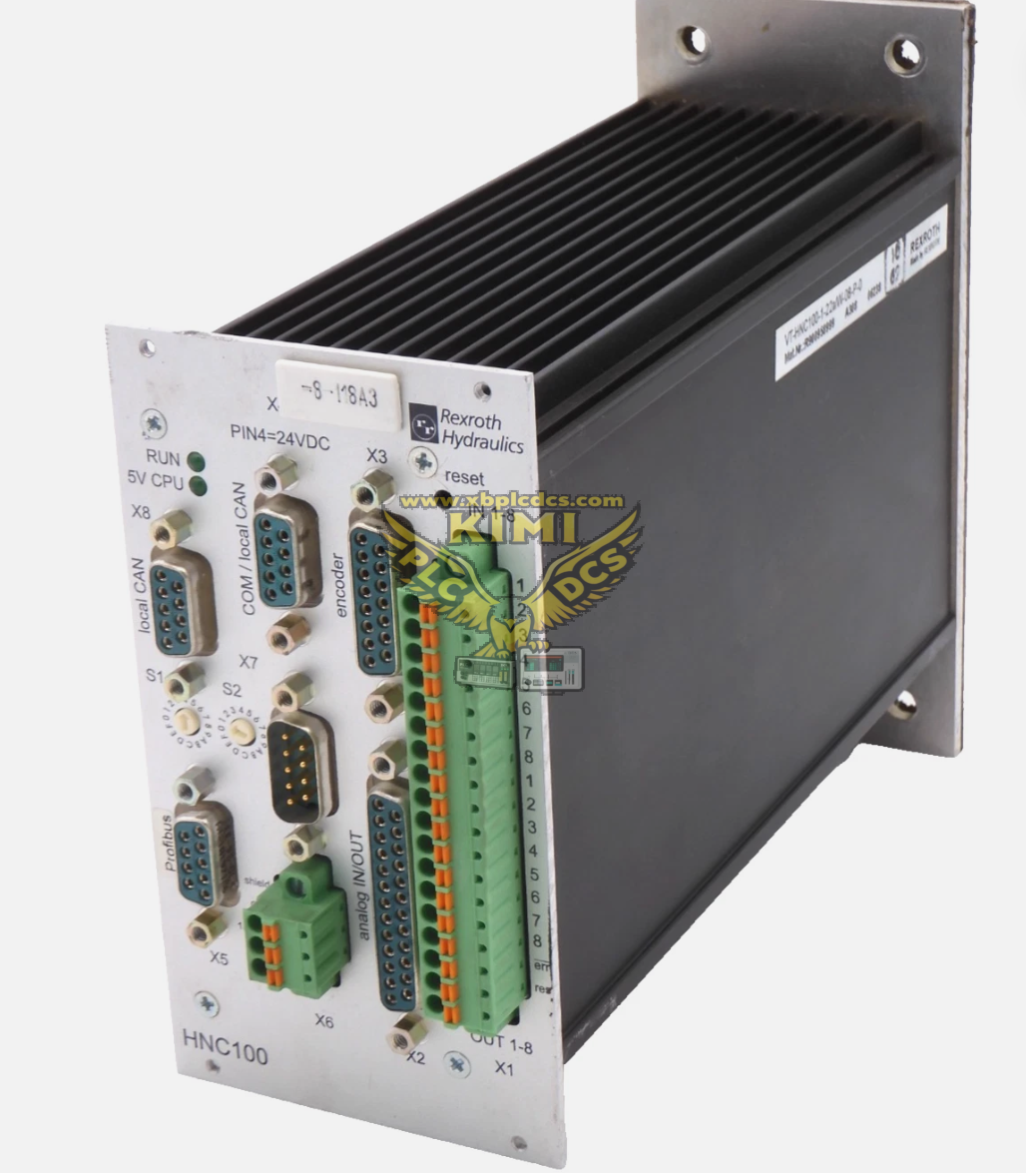

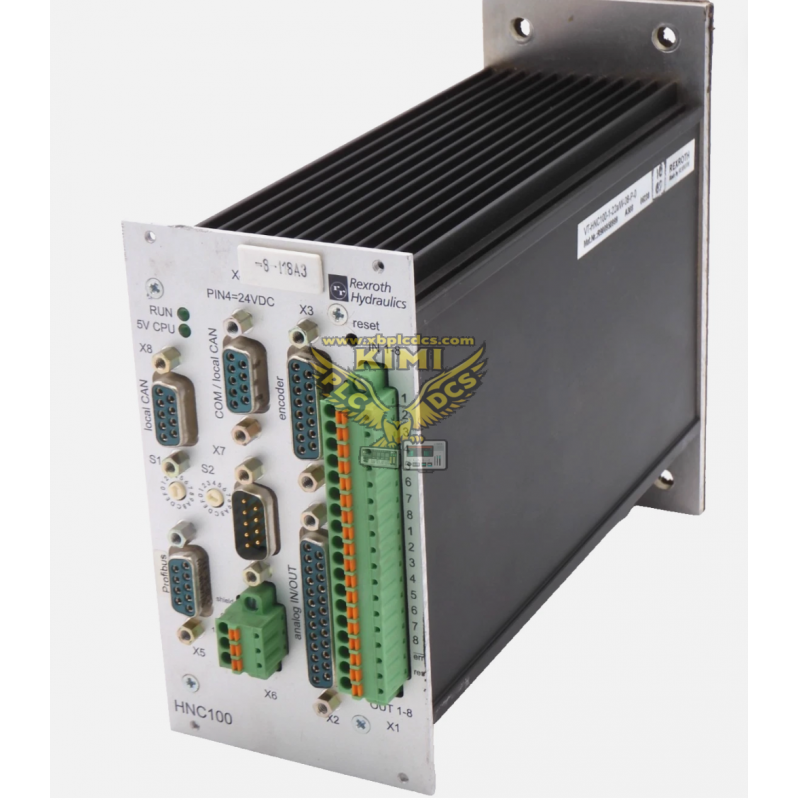

Bosch Rexroth VT-HNC100-2-30/P-I-00/G02 (R901134616) Electro-Hydraulic Digital Axis Controller

Product Brief Description

The Bosch Rexroth VT-HNC100-2-30/P-I-00/G02, part number R901134616, is a high-performance programmable digital NC axis controller for electro-hydraulic closed-loop motion control. As a member of the HNC100 series, it supports multi-axis hydraulic drive control with flexible control modes, NC programming and fieldbus connectivity. Designed for industrial hydraulic machinery, this controller delivers high-precision motion regulation, robust vibration resistance and comprehensive diagnostic capability for heavy-duty automation equipment.

Product Functions

• Multi-mode closed-loop control: position, velocity, pressure and force control, supporting switchable position-pressure hybrid control
• Supports NC programming with G-code, point-to-point positioning, oscillating motion and master-slave axis synchronization
• Analog command output to drive proportional or servo hydraulic valves, accepts feedback from linear transducers, encoders and pressure sensors
• Integrated digital input and output channels for interlock, limit switch and safety signal processing
• Equipped with CAN bus and optional PROFIBUS interface for communication with PLC, HMI and upper automation systems
• Built-in hardware and software diagnostics for sensor faults, valve drive errors, overvoltage and wiring break detection; configured via WIN-PED PC software

Application Scenarios

• Hydraulic press, forging press and metal forming machinery precision motion control
• Plastic injection molding machines, die casting equipment and rubber processing hydraulic axes
• Special machine tools, automated transfer lines and material handling hydraulic systems
• Test benches for hydraulic component fatigue testing and force/displacement simulation
• Heavy-duty industrial automation equipment requiring synchronized multi-axis hydraulic motion
