Brief Product Description

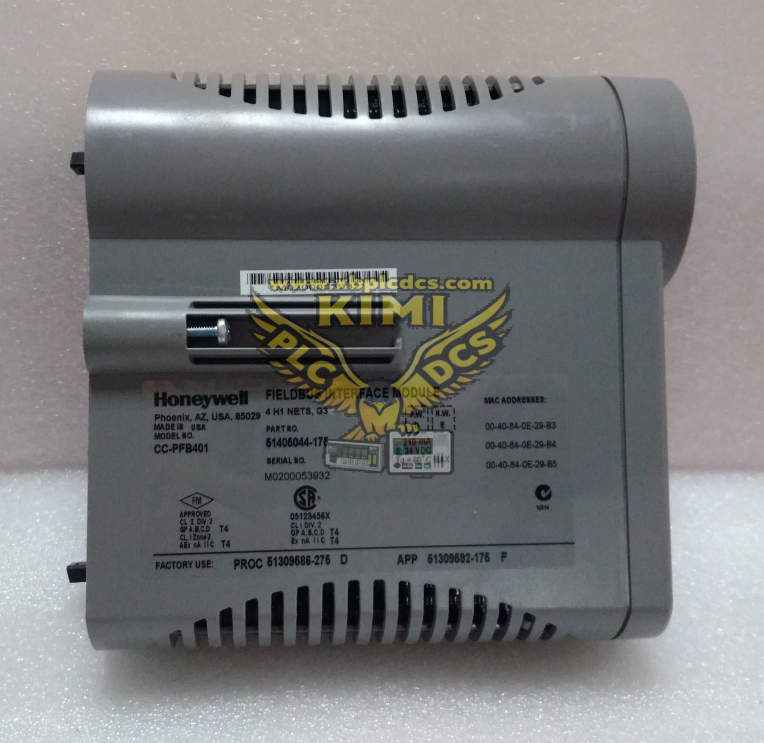

Honeywell CC-PFB401, part number 51405044-175, is the FIM4 FOUNDATION Fieldbus H1 interface module for Honeywell Experion PKS C300 controller Series C rack. It acts as dedicated communication gateway between C300 controller and FOUNDATION Fieldbus H1 field instruments, including smart transmitters, valve positioners and fieldbus analyzers. It provides 4 independent galvanically isolated H1 segments at 31.25 kbps, each segment supports up to 16 fieldbus devices, maximum total 64 field devices. This module offloads fieldbus communication scheduling and device diagnostics from C300 main CPU to protect control deterministic performance. It must be paired with dedicated CC-TFB401 IOTA termination assembly. Powered by chassis backplane 24VDC. Fully tested surplus and refurbished Honeywell CC-PFB401 (51405044-175) modules are available for legacy Experion PKS system maintenance, spare replacement and plant retrofit projects.

Core Product Functions

• 4-segment FOUNDATION Fieldbus H1 interface module (FIM4) for Experion PKS C300 Series C rack
• Bridge communication between C300 controller and FOUNDATION Fieldbus H1 smart field instruments
• 4 isolated H1 links (31.25 kbps), max 16 devices per link, total up to 64 fieldbus instruments
• Works with CC-TFB401 IOTA termination assembly for fieldbus wiring and shielding termination
• Offload fieldbus communication scheduling, device parameter reading and diagnostics from controller CPU
• Supports reading process variables, device alarms, diagnostic information from H1 field devices
• Configurable macrocycle timing for fieldbus communication scheduling
• Module and per-link status LED indicators, built-in self-diagnosis for link faults and communication errors
• Supports hot-swap operation for online rack maintenance without full system shutdown

Application Scenarios

• Legacy Honeywell Experion PKS C300 DCS FOUNDATION Fieldbus instrument integration system
• Thermal power plant smart fieldbus transmitter and H1 valve positioner data acquisition
• Petrochemical, refinery plants widely using FOUNDATION Fieldbus H1 smart instrumentation
• Oil & gas, pulp & paper plant fieldbus device control, parameter access and device diagnostics
• Process sites requiring large amount of FOUNDATION Fieldbus H1 instrument access in C300 rack
• Legacy Experion PKS FIM4 fieldbus interface module replacement, maintenance and plant retrofits

FAQ (Frequently Asked Questions)

• Q: Fieldbus communication failure or instrument offline after installing CC-PFB401?
  A: Verify matched CC-TFB401 IOTA, check fieldbus shield wiring, segment termination resistor, H1 bus power and device address, inspect backplane connection and grounding.
• Q: Does Honeywell CC-PFB401 support hot-swap replacement?
  A: Yes, hot swap is supported. Risk assessment and LOTO lockout-tagout must be performed before replacement to avoid fieldbus link interruption and process disturbance.
• Q: What is the difference between CC-PFB401 and CC-PFB801?
  A: CC-PFB401 is FIM4 with 4 H1 segments; CC-PFB801 is FIM8 with 8 H1 segments for more fieldbus instruments.
• Q: What accessories does it need?
  A: Must be matched with CC-TFB401 IOTA termination assembly for FOUNDATION Fieldbus wiring termination.
• Q: Is Honeywell CC-PFB401 (51405044-175) available for new DCS projects?
  A: This legacy Experion Series C fieldbus interface module is end-of-life for new installations. Only fully tested surplus and refurbished units are supplied for existing DCS system maintenance and retrofits.
