Brief Product Description

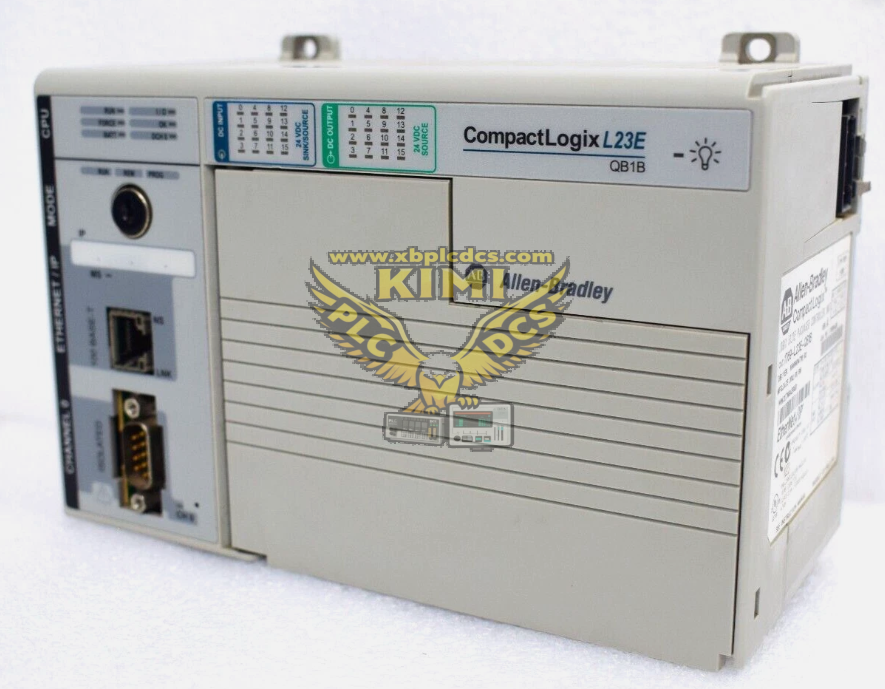

Allen-Bradley 1769-L23E-QB1B is an all-in-one CompactLogix 5323E packaged controller from Rockwell Automation, featuring 512KB user memory and embedded digital I/O. This integrated controller combines processor, power supply, digital I/O, EtherNet/IP and RS232 serial ports in a compact DIN-rail mount housing. It belongs to the Logix control platform and uses RSLogix 5000 programming software for sequential control, motion and PID loop regulation. The unit supports expansion of additional 1769 CompactLogix I/O modules to expand system I/O capacity. Designed for space-limited industrial control cabinets, it delivers reliable continuous operation for small and medium OEM machine control. Fully tested surplus and refurbished Allen-Bradley 1769-L23E-QB1B controllers are available for legacy CompactLogix system maintenance, controller replacement and machine automation retrofit projects.

Core Product Functions

• 512KB user memory for storing control logic, tag data and runtime parameters
• Integrated digital input/output channels for direct connection with field sensors and actuators
• Embedded EtherNet/IP port for communication with HMIs, drives and other Logix controllers
• RS232 serial port for programming connection and serial device communication
• Execute ladder logic, structured text, PID closed-loop control and basic motion instructions
• Supports expansion with additional 1769 CompactLogix I/O modules for system scaling
• Built-in watchdog timer and comprehensive self-diagnosis for controller and I/O faults
• Battery-backed memory to retain program and tag data during power outages
• LED status indicators for power, run, fault and network diagnostic status checking

Application Scenarios

• OEM machinery control: packaging machines, material handling and conveyor systems
• Small to medium factory automation, assembly stations and special-purpose machines
• Water treatment, wastewater and municipal small-scale process control systems
• Food & beverage, pharmaceutical and packaging production line automation
• HVAC, pumping stations and auxiliary equipment control with EtherNet/IP networking
• Legacy CompactLogix packaged controller replacement, maintenance and machine retrofits

FAQ (Frequently Asked Questions)

• Q: Controller fails to enter run mode or reports major fault after installing 1769-L23E-QB1B?
  A: Verify firmware compatibility with project, check memory battery health, inspect I/O wiring and DIN rail grounding, resolve EtherNet/IP network conflict or EMI noise.
• Q: Does Allen-Bradley 1769-L23E-QB1B support hot-swap replacement?
  A: Hot swap is not supported. Back up the control program, cut off power and perform lockout-tagout before replacement to prevent unexpected machine movement and program loss.
• Q: What programming software is used for 1769-L23E-QB1B?
  A: It uses RSLogix 5000 programming software for program editing, download and online monitoring.
• Q: What communication ports does this packaged controller have?
  A: It includes embedded EtherNet/IP port and RS232 serial communication port.
• Q: Is Allen-Bradley 1769-L23E-QB1B available for new automation projects?
  A: This legacy CompactLogix packaged controller is end-of-life for new installations. Only fully tested surplus and refurbished units are supplied for existing automation system maintenance and retrofits.
