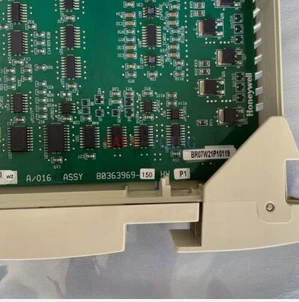

80363969-150 Honeywell MC-PAOY22 16-Channel Analog Output IOP Module

Product Description

80363969-150, also marked as MC-PAOY22, is a 16-channel analog output IOP module manufactured by Honeywell for TDC3000 DCS UCN network. This rack-mounted I/O processor converts digital control commands from the controller into 4-20mA analog signals to drive field control devices. It works with matched FTA field termination assemblies for field wiring connection and provides high precision analog output for closed-loop process regulation.

Product Features & Functions

• 16 independent analog output channels with 4-20mA signal range
• High-precision D/A conversion to translate digital control values into analog current signals
• UCN bus communication to receive control commands from Honeywell Process Manager controller
• LED indicators for module running status, fault alarm and channel diagnosis
• Compatible with dedicated FTA termination assemblies for field instrument wiring
• Supports driving field devices such as control valves, positioners and current indicators
• Rack mount design for installation inside TDC3000 DCS control cabinet rack

Application Scenarios

• Honeywell TDC3000 DCS UCN distributed control system
• Output 4-20mA signals to regulate control valves and actuators
• Petrochemical, chemical, power plant and oil & gas closed-loop process control
• Legacy DCS system maintenance and spare parts replacement
• Refinery and pipeline automatic control projects

FAQ

Q: What is the alternate part number for 80363969-150?
A: The alternate part number is MC-PAOY22, both represent the same 16-channel analog output IOP module.

Q: What output signal does this module provide?
A: It outputs standard 4-20mA analog current signals to operate field control valves and actuators.

Q: Is this Honeywell module still in original production?
A: Honeywell has discontinued this model. Only new old stock, used and refurbished modules are available on the spare parts market.
