Eaton‑Moeller XVS‑440‑57MPI‑1‑1AD HMI‑PLC Product Description

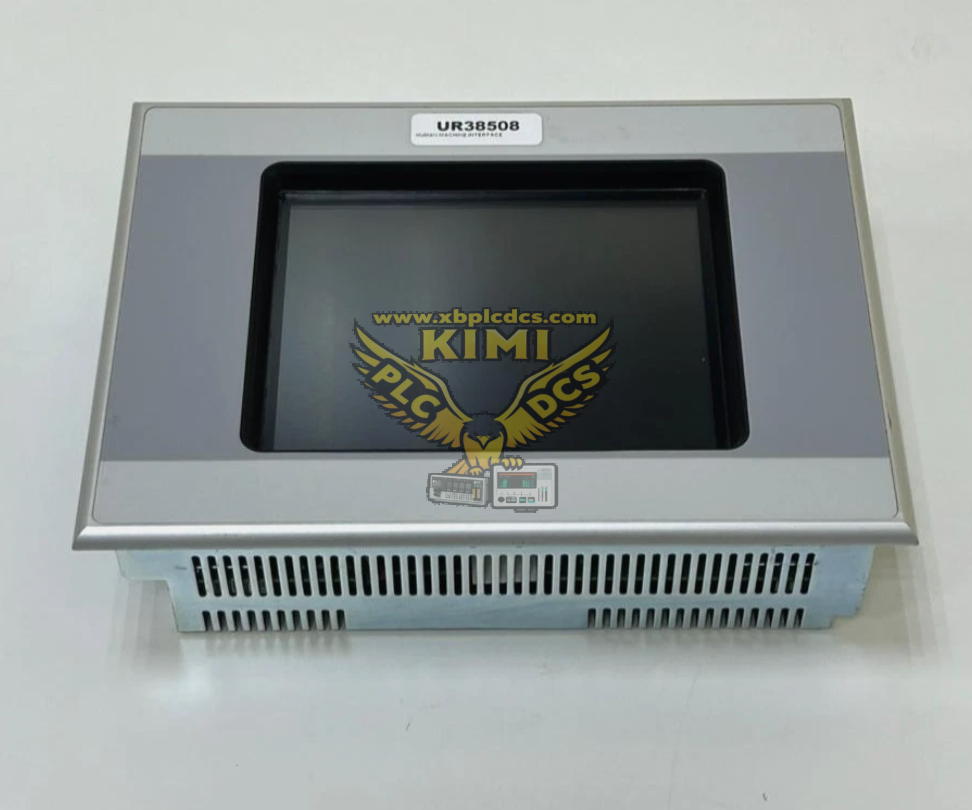

The XVS‑440‑57MPI‑1‑1AD is a compact 5.7‑inch infrared‑touch integrated HMI‑PLC unit within the Eaton‑Moeller XVS400 (Micro Panel‑2) family, manufactured in Switzerland. It runs Windows‑CE embedded OS, combining operator visualization and optional IEC‑61131‑3 PLC runtime in one panel‑mount unit, featuring native MPI‑Profibus interface for direct connection to Siemens S7‑300/400 controllers. This model is discontinued EOL, only available as surplus / refurbished spare stock. Base firmware pre‑loaded; full HMI‑project, PLC logic and communication‑parameters must be downloaded by XSoft‑CoDeSys‑2 (V2.3.9 SP5) engineering software before commissioning. Gross weight approx 1.4 kg.

Product Features

• 5.7‑inch CSTN color‑LCD QVGA 320×240, 256 colors; infrared‑touch screen, anti‑reflective front safety‑glass; supports glove‑operation under dusty‑oily workshop environments.
• Embedded PLC runtime conforming to IEC‑61131‑3 (LD/FBD/ST); PLC‑function requires separate license‑key activation (LIC‑PLC‑MXP‑SMALL); without license it runs only as HMI display unit.
• Interfaces: 10/100 Ethernet‑RJ45, MPI‑Profibus‑DP DB9 port, RS232 serial, USB‑host/device, CompactFlash‑card slot for project storage, backup and firmware upgrade.
• Front‑panel IP65‑NEMA12 rating for cabinet cut‑out mounting; metal housing; 24 VDC supply; conformal‑coated PCB for vibration‑prone industrial‑site; operating‑temperature 0‑60 °C.
• On‑board self‑diagnostics: monitors touch‑controller, bus‑link, internal‑temperature; timestamped fault‑event buffer for post‑failure root‑cause analysis; multi‑colour LED status indicators on front‑panel.
• XVS‑440‑57MPI‑1‑1AD is dedicated hardware variant; hardware‑revision, memory‑mapping and firmware baseline must match original installation; cannot freely swap‑in with‑1‑10 suffix variant without full‑project‑validation test.
• Pre‑installed Windows‑CE system; after download project, must execute Create boot project online, otherwise program will get lost after power‑cycle.

Application Scenarios

• Packaging‑machinery, printing‑equipment compact local operator‑control‑station, communicating with Siemens S7‑300/400 via MPI‑bus.
• Water‑treatment‑plant, material‑handling‑system small‑stand‑alone automation control‑panel spare‑part‑replacement.
• OEM‑machinery original‑equipment retrofits for existing production‑lines equipped with aging XVS400‑5.7” hardware.
