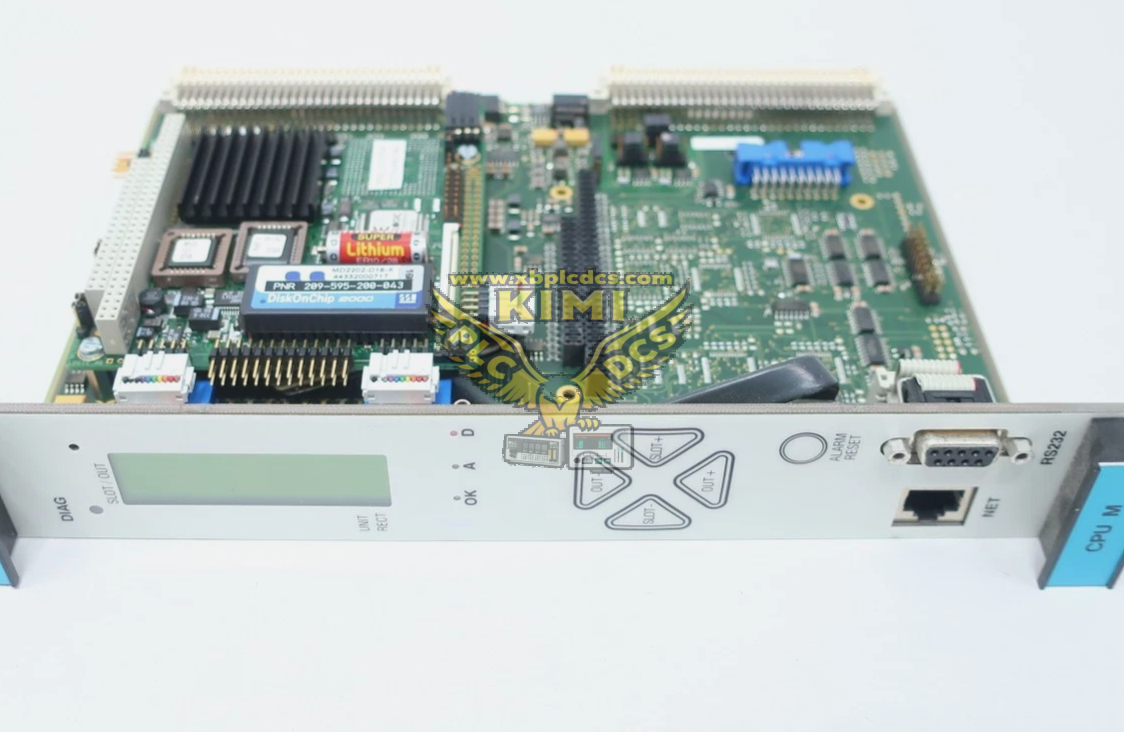

Meggitt‑Vibro‑Meter VM600 CPUM 200‑595‑074‑122 Product Description
The VM600 CPUM, part‑number 200‑595‑074‑122, is the rack central‑processing unit for Meggitt Vibro‑Meter VM600 machinery‑protection system (MPS) conforming to API 670 standard. It acts as rack master controller, coordinating all monitoring cards (MPC4, AMC8) via back‑plane VME‑bus, performing real‑time vibration / shaft‑displacement data processing, protection‑logic execution, alarm‑event logging and plant‑system communication. Front‑panel LCD and status‑LEDs support local status viewing and alarm reset. Hardware originates from Switzerland; base firmware pre‑loaded, but rack‑specific monitoring‑configuration must be downloaded by VM600‑MPS engineering software before commissioning.
Product Features
- Rack master CPU for VM600 machinery‑protection rack; manages MPC4 protection‑cards and AMC8 measurement‑cards, acquires vibration, axial‑displacement, speed signals from rotating‑machinery transducers.
- Deterministic protection‑logic processing: executes alarm / danger threshold judgement, trip‑logic, event‑history and disturbance‑data recording for post‑trip root‑cause analysis.
- Onboard interfaces: Ethernet TCP/IP (Modbus‑TCP), RS485/RS232 serial port; data gateway to DCS / SCADA systems for remote monitoring and status acquisition.
- Front‑panel LCD display, multi‑colour status‑LEDs (OK / Alert / Danger), physical alarm‑reset push‑button for full‑rack latch‑alarm clearing; local diagnostic status visualisation.
- Eurocard plug‑in module, powered by rack back‑plane; operating temperature 0‑60 °C; conformal‑coated PCB for industrial harsh‑EMI environment; CE‑IEC‑61000‑6‑2 EMC certification.
- 200‑595‑074‑122 is dedicated part variant; hardware revision and firmware baseline must match original rack configuration; cannot freely swap with other CPUM part‑number variants without software‑validation.
- Pre‑installed base firmware; full rack‑configuration, transducer‑setup, alarm‑threshold parameters shall be downloaded by VM600‑MPS software after hardware replacement.
Application Scenarios
- Power‑plant steam‑/gas‑turbine TSI system, turbine‑generator shaft vibration and thrust‑position monitoring cabinets complying with API670.
- Petrochemical refinery large centrifugal‑compressor machinery‑protection and condition‑monitoring racks.
- Off‑shore platform rotating‑equipment monitoring for gas‑compressors, large pumps and blowers.
- Heavy‑industry metallurgy large turbo‑machinery protection‑system spare‑part‑replacement and retrofit‑maintenance projects.
- Retrofit‑service for existing VM600 racks equipped with aging CPUM modules.
Frequently Asked Questions
A1: Different part‑numbers represent different hardware‑revisions and firmware baselines. Mechanical form‑factor is identical, but direct swap‑in risks parameter‑mismatch and protection‑logic malfunction. Must cross‑check rack project‑file and perform full‑commissioning test.
A2: No. Base‑firmware pre‑loaded. Need to download complete VM600‑MPS project‑configuration including transducer‑parameters, alarm‑thresholds and communication‑settings; perform signal‑loop‑verification before machinery putting‑into‑service.
A3: Check rack back‑plane integrity, RPS6U rack‑power‑supply output‑stability, front‑panel diagnostic‑LED status, MPC4/AMC8 card insertion‑condition, Ethernet‑cable health and downloaded project‑configuration consistency.
A4: Mechanically hot‑swap capable. But CPUM governs critical machinery‑protection‑tripping logic. Strictly follow plant safety‑procedure; block protection‑trip outputs before module‑replacement to avoid unplanned turbine‑trip event.
A5: Anti‑static wrist‑strap mandatory for servicing. Avoid mechanical‑shock impact. Store within dry low‑humidity environment; retain original anti‑static packaging for spare‑part preservation.
