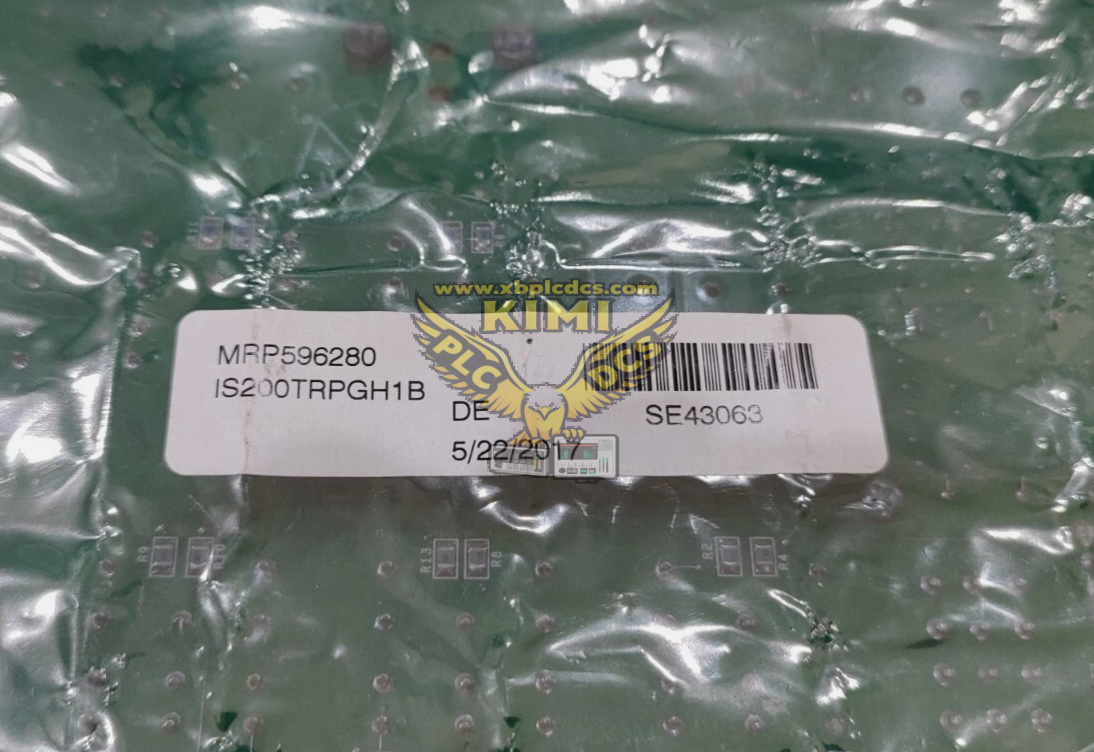

GE IS200TRPGH1BDE Product Description

The IS200TRPGH1BDE is a conformal‑coated negative‑leg trip return termination board for GE Speedtronic Mark VI / Mark VIe turbine safety control systems. Working in pair with IS200TREGH1BEC positive trip board, it completes the full emergency trip solenoid circuit by providing negative return path for trip solenoids. This rack‑mount safety PCB integrates isolation relays, MOV surge suppression and pluggable field terminals, implementing 2‑out‑of‑3 TMR voting logic together with VPRO overspeed packs. It monitors trip‑loop health status and feeds diagnostic data back to turbine controllers via IONet bus. Conformal coating protects circuit traces from moisture, dust and corrosive air inside power‑plant control cabinets for long‑term reliable safety‑circuit operation.

Product Features

• Negative‑side return termination board, paired with IS200TREGH1BEC to form complete emergency solenoid drive loops
• Multiple onboard isolation relays for three independent turbine trip solenoid circuits with circuit‑segment fault isolation
• MOV surge suppression components protecting trip circuits from voltage transients and electrical noise interference
• Pluggable 48‑point screw terminal blocks for convenient field wiring, testing and maintenance operations
• Supports triple‑modular redundant (TMR) 2oo3 safety voting logic with VPRO overspeed processor packs
• Transmits trip‑loop hardware status and fault diagnostics to main controllers over IONet field communication bus
• Full conformal‑coated PCB construction, anti‑corrosion, anti‑humidity for harsh power‑plant cabinet environments
• Standard plug‑in rack‑mount design, compatible with Mark VI / Mark VIe backplane for simplex and TMR safety racks

Application Scenarios

• GE Mark VI / Mark VIe gas turbine emergency trip safety subsystems in power generation plants
• Steam‑turbine and combined‑cycle power‑plant ESD emergency‑shutdown protection circuits
• Utility power‑plant main unit safety interlock and overspeed protection hardware loops
• Captive industrial power‑plant turbine‑generator safety‑system spare‑part replacement and retrofit projects
• Oil‑gas and petrochemical facility turbine‑driven equipment safety control cabinets
• Co‑generation plant high‑reliability turbine protection and emergency shutdown systems
• Independent overspeed protection platform hardware for large turbine‑generator sets
