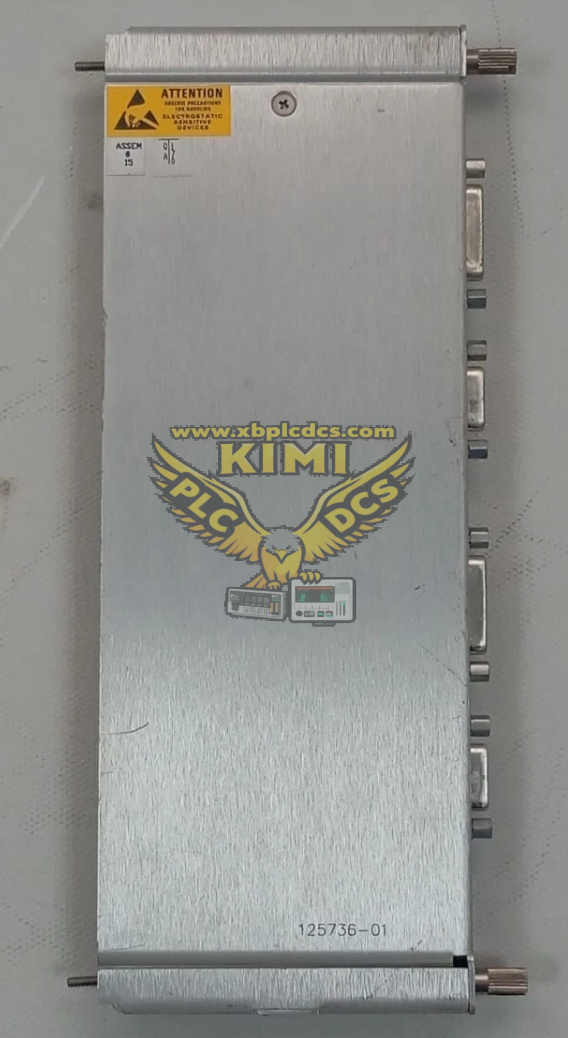

Bently Nevada 125736-01 Relay Output Module

Product Brief Description

The Bently Nevada 125736-01 is an industrial-grade relay output module purpose-built for the Bently Nevada 3500 machinery protection system, fully compliant with API 670 global turbomachinery protection standards. Designed for 24/7 continuous operation in the harshest heavy industrial environments, it provides reliable hardwired alarm and trip signal output for critical rotating equipment, acting as the final execution layer to trigger safety interlock actions when abnormal machinery conditions are detected.

Core Features & Functions

• Provides multiple independent configurable relay channels, supporting custom mapping of vibration, speed, displacement and other monitoring parameters to corresponding alarm or trip states
• Each relay supports high-capacity load switching, compatible with standard industrial PLC interlock circuits, on-site indicator lights and external alarm systems
• Built-in intelligent self-diagnostic function automatically detects relay coil anomalies, contact wear and internal module hardware faults, and uploads fault alerts to the 3500 system host
• Industrial-level electromagnetic interference resistance design ensures stable and reliable contact action even in high-noise power plant and refinery field environments
• Hot-swappable rack-mount design allows on-site replacement without shutting down the entire 3500 monitoring system, drastically reducing unplanned maintenance downtime

Common Application Scenarios

• Steam turbine and generator protection interlock systems in thermal power plants
• Centrifugal compressor safety trip control in oil & gas refineries and petrochemical facilities
• Large pump and fan abnormal condition alarm systems in metallurgy and mining sites
• Critical rotating machinery protection interlock in chemical processing plants
• Turbine machinery safety protection systems for nuclear power stations
