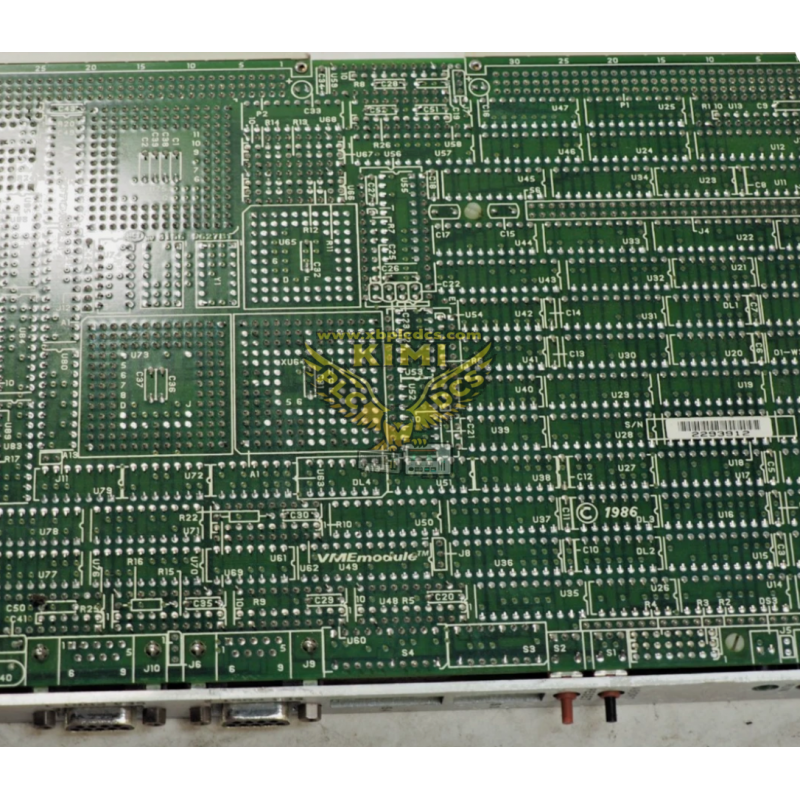

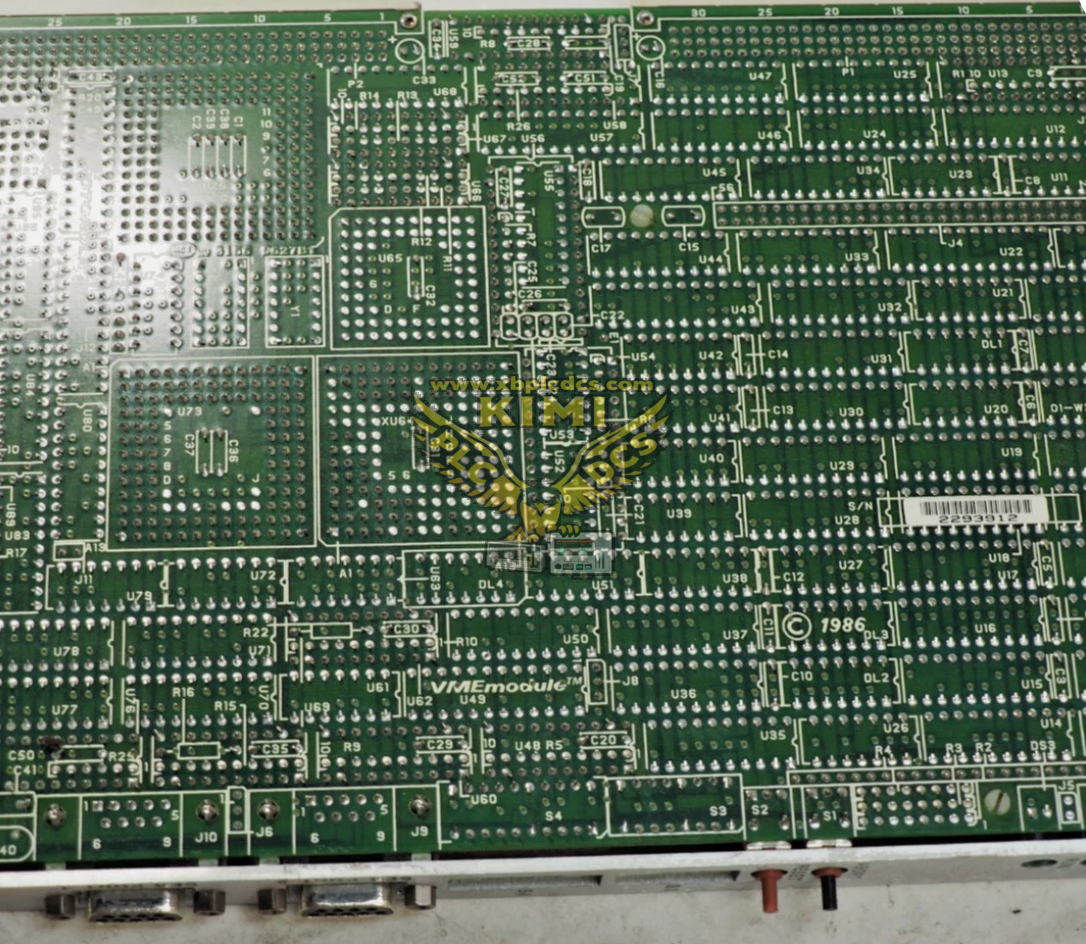

MOTOROLA 01-W3914B VME CPU Controller Board

Product Brief Description

MOTOROLA 01-W3914B is a double-high VMEbus single-board computer designed for the MVME177 series embedded control systems, powered by Motorola 68060 processor. It acts as the main central processing board for legacy industrial VME racks, responsible for real-time computing, program execution, data processing and bus master communication. This obsolete industrial board is widely used for repairing old automation systems. We supply fully tested surplus and refurbished units for existing VME platform maintenance.

Product Features

• Equipped with Motorola MC68060 high-performance 32-bit processor for real-time industrial control tasks
• Full VMEbus A32/D32 master/slave function, supporting high-speed data transmission across backplane
• Onboard DRAM and battery-backed NVRAM, integrated real-time clock with battery backup
• Built-in multiple interfaces: RS232 serial port, SCSI and Ethernet via transition module
• Industrial temperature range from 0℃ to +55℃, with EMC shielding and anti-vibration PCB design
• 6U Eurocard form factor, compatible with standard VME chassis and backplane
• Refurbished boards undergo full functional test, memory check and communication verification before shipment

Application Scenarios

• MVME177 series VMEbus industrial embedded control systems
• Metallurgy, power generation, pulp and paper manufacturing process control
• Legacy robotic controllers and industrial machine automation equipment
• Military and aerospace test measurement systems based on VME standard
• Old industrial system overhaul, main CPU board replacement and spare backup
