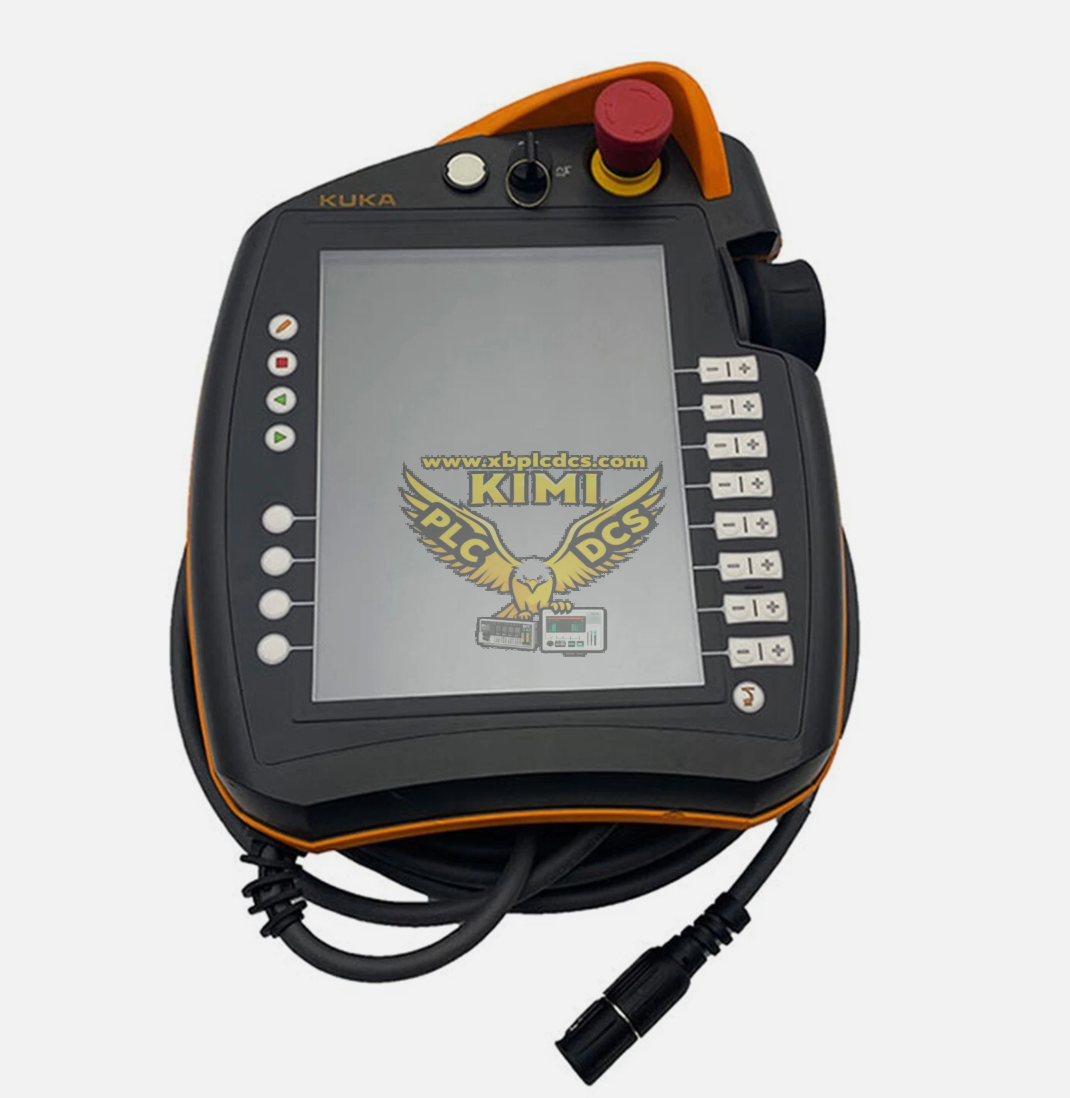

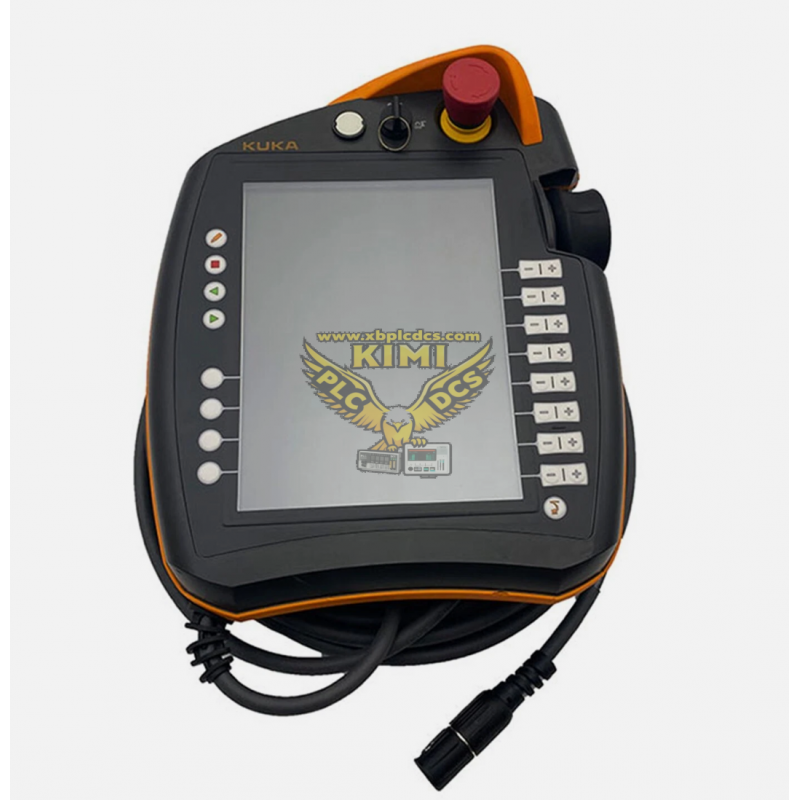

KUKA 00-168-334 Teach Pendant (KRC4)

Product Description

The 00-168-334 is the handheld teach pendant developed by KUKA for KRC4 industrial robot controller systems. It integrates a touch LCD display, physical function keys, 3-position enabling switch and emergency stop button inside a rugged handheld enclosure, designed for on-site robot programming and operation. The unit features dust-proof and impact-resistant construction to adapt to workshop industrial environments. This handheld operator device communicates with the KRC4 robot cabinet via dedicated teach pendant cable. The product is widely used as spare part for KUKA KRC4 robot maintenance and retrofit projects, with available inventory including new surplus and refurbished units.

Product Functions

• Hand-held manual control for jogging each robot axis during commissioning, troubleshooting and robot teaching
• Graphical touch screen interface for robot program editing, creation, modification and program running control
• 3-position deadman enabling switch and emergency stop button to ensure personnel safety during manual operation
• Real-time display of robot axis position, motor current, alarm messages and system diagnostic information
• Local parameter configuration for robot motion limits, tool coordinate, base coordinate and safety setup
• Store robot teaching points and program backup, support program upload and download with KRC4 controller
• Transmit safety interlock signals and operation commands to robot controller via dedicated communication cable

Application Scenarios

• On-site programming and manual operation for KUKA KRC4 industrial robots in automotive welding and handling stations
• Robot commissioning, calibration and preventive maintenance in automated manufacturing production lines
• Spare replacement for damaged or failed 00-168-334 teach pendants on existing KRC4 robot systems
• Robot cell overhaul, equipment relocation and automation system upgrade projects
• Robot training and offline program verification for factory automation technicians
• Spare parts inventory for system integrators and robot maintenance service vendors with KUKA KRC4 robots

Common Problems

• Touch screen malfunction: touch panel cracking, insensitive touch response or display backlight failure
• Enabling switch / E-stop failure: worn internal contacts, cannot release safety interlock signal
• Communication interruption: damaged pendant cable, loose connector pins or internal communication board fault
• Screen display abnormality: blurred image, white screen or flickering caused by LCD driver aging
• Physical button failure: wear or sticking of mechanical keys after frequent repeated operation
• Casing damage: cracks, scratches or internal circuit board contamination caused by drop and impact
• Software boot failure: system crash, stuck on startup screen, requiring re-flash of teach pendant firmware
