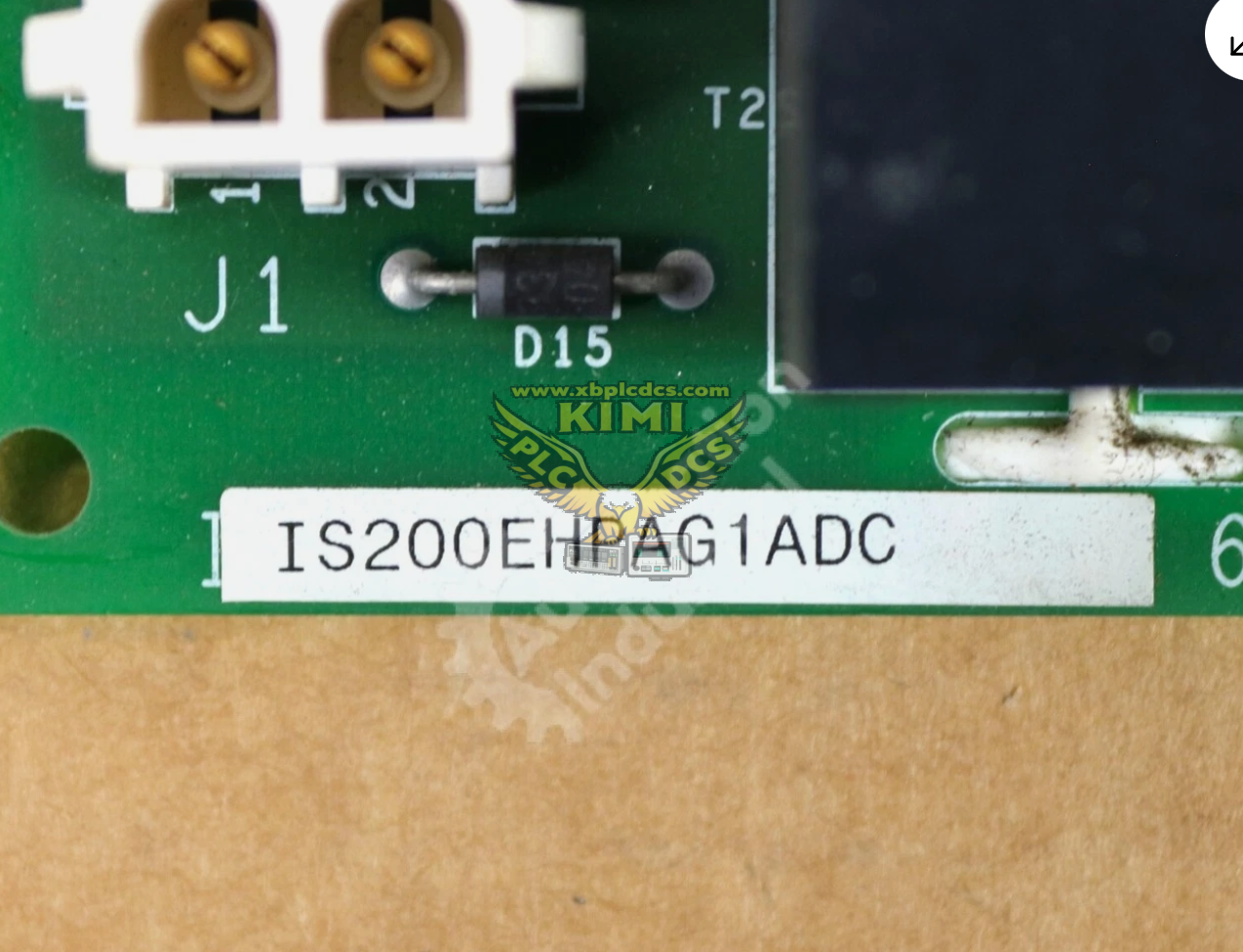

GE IS200EHPAG1A Pulse Amplifier Board for Mark VI / Mark VIe Speedtronic Turbine Control System

Product Description

The IS200EHPAG1A is a rack‑mounted pulse amplifier printed circuit board developed by General Electric for the Mark VI and Mark VIe Speedtronic turbine control and EX2100 generator excitation systems. It adopts conformal coated PCB and industrial high‑power components, equipped with multiple dedicated connectors and front‑panel LED arrays to indicate power status, bridge temperature, cooling fan condition and fault alarms. The board receives low‑level gate trigger signals from the main controller, amplifies pulses to drive SCR rectifier bridges, and continuously monitors operating temperature, airflow and SCR conduction status. It is designed for long‑term continuous operation in power plant control cabinets with vibration, dust and heavy electromagnetic interference and is widely supplied as spare replacement hardware for aging GE turbine and excitation racks.

Product Functions

• Amplify weak control pulse signals and output high‑energy trigger pulses to drive SCR power rectifier modules of the excitation system
• Real‑time monitoring of power bridge temperature, cooling fan speed and cooling airflow for overheat protection
• Diagnose SCR open‑circuit, short‑circuit and abnormal conduction faults and upload alarm information to the main turbine controller
• Exchange operating data and fault diagnostic messages with the main control board through the dedicated backplane bus
• Front‑panel multi‑color LED indicators display power, running status, warning and fault codes for local maintenance inspection
• Built‑in over‑current, over‑temperature and short‑circuit latch‑off protection to avoid cascading damage to power components
• Support online diagnostic testing and firmware configuration via Mark VI control software

Application Scenarios

• Gas turbine and steam turbine control cabinets of thermal power plants equipped with GE Mark VI / Mark VIe Speedtronic systems
• EX2100 and EX2100e generator excitation control racks for large synchronous generators
• Off‑shore oil & gas platform turbine and compressor safety control systems
• Natural gas pipeline compressor skids and petrochemical large rotating machinery control cabinets
• Hydropower plant generator excitation voltage regulation and power protection control equipment
• Spare part replacement and technical retrofit of obsolete GE turbine and excitation control racks

Common Problems

• No trigger pulse output：internal drive circuit burnout, damaged pulse transformer or backplane connector oxidation and poor contact
• Persistent overtemperature alarm：cooling fan failure, heat sink blocked by dust, temperature sensing component drift or aging
• SCR conduction diagnostic false alarm：signal sampling circuit degradation, wiring interference or SCR device performance decline
• Intermittent communication failure with main controller：backplane bus transceiver chip aging, loose plug‑in terminals or strong electromagnetic interference
• LED indicators not lighting after power‑on：onboard auxiliary power circuit fault, blown fuse or power supply rail abnormality
• Unstable pulse amplitude and excitation current fluctuation：electrolytic capacitor aging on PCB, component parameter drift or ground‑loop interference
• Module cannot be identified by turbine control rack：corroded backplane pins, incompatible firmware version or board hardware hidden damage
