Brief Product Description

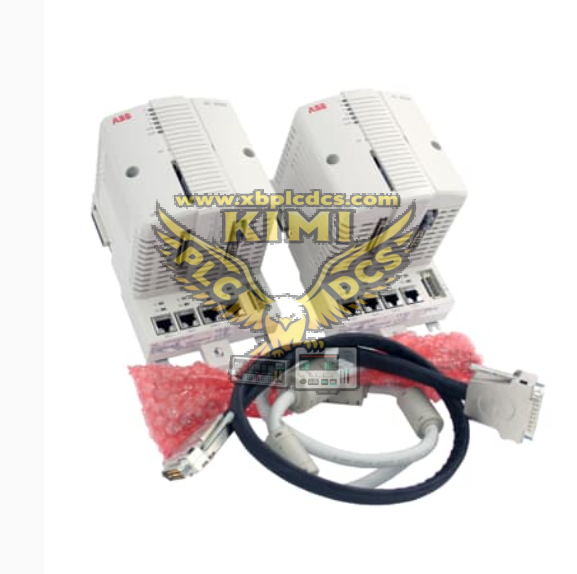

PM861AK02, part number 3BSE018160R1, is a hot‑standby redundant processor unit for ABB AC 800M controller within System 800xA DCS platform. This dual‑CPU module serves as the central control core for critical industrial process automation, supporting bumpless primary‑backup switchover within 10 ms upon main CPU failure to avoid production interruption. Equipped with dual Ethernet ports, serial interface and large‑capacity memory, it executes user control logic, handles S800 I/O data exchange and communicates with HMI and upper monitoring systems. It can realize online replacement of the faulty backup CPU while the system keeps running. As a legacy critical automation spare part, it is supplied as fully‑tested surplus and refurbished units for maintenance and retrofit of existing ABB DCS installations.

Core Product Functions

• Hot‑standby redundant dual‑CPU operation, achieving bumpless switchover less than 10 ms in case of primary processor fault
• Real‑time execution of user application logic, PID regulation, interlock protection and sequence control tasks
• Process data interaction with S800 I/O modules via controller bus for field signal collection and output
• Dual Ethernet ports support redundant network communication, compatible with RNRP, Modbus TCP and other protocols
• RS‑232 serial port for local engineering download, debugging and equipment commissioning
• Support online replacement of faulty backup processor without stopping the whole control system
• Complete hardware self‑diagnosis, fault logging and event recording for system health monitoring
• Work with Control Builder software for program configuration, download and online monitoring
• High‑reliability memory with parity detection to ensure integrity of running process data

Application Scenarios

• ABB System 800xA / AC 800M DCS systems for petrochemical and chemical process plants
• Power plant boiler, turbine auxiliary control systems requiring high‑availability redundant controllers
• Pulp & paper, metallurgy and cement continuous production process control projects
• Oil & gas on‑site control and pipeline monitoring automation systems
• Water treatment and municipal large‑scale process automation with uninterrupted operation requirements
• Spare replacement redundant processor unit for maintenance, troubleshooting and upgrade of legacy AC 800M controller racks

FAQ (Frequently Asked Questions)

• Q: Redundancy state abnormal after replacing PM861AK02 processor unit?
  A: Check baseplate connection, redundant link cable, firmware version consistency of two CPUs, application program download and configuration parameters.
• Q: Controller frequently reports self‑diagnosis alarms during running?
  A: Inspect power supply quality, back‑plane contact status, memory fault, firmware corruption or hardware component degradation.
• Q: Can the backup PM861AK02 be replaced online without system shutdown?
  A: Yes, backup CPU supports online hot replacement. Keep primary processor running and strictly follow official replacement operation steps.
• Q: Can PM861AK02 run with non‑AC800M hardware or third‑party DCS platforms?
  A: It is exclusively designed for ABB AC800M controller system. Proprietary bus and firmware cannot adapt to third‑party automation hardware.
• Q: Is ABB PM861AK02 3BSE018160R1 available for brand‑new DCS projects?
  A: This legacy redundant processor unit has reached end‑of‑life. Only surplus and fully‑tested refurbished units are offered for existing‑site maintenance and retrofit tasks.
