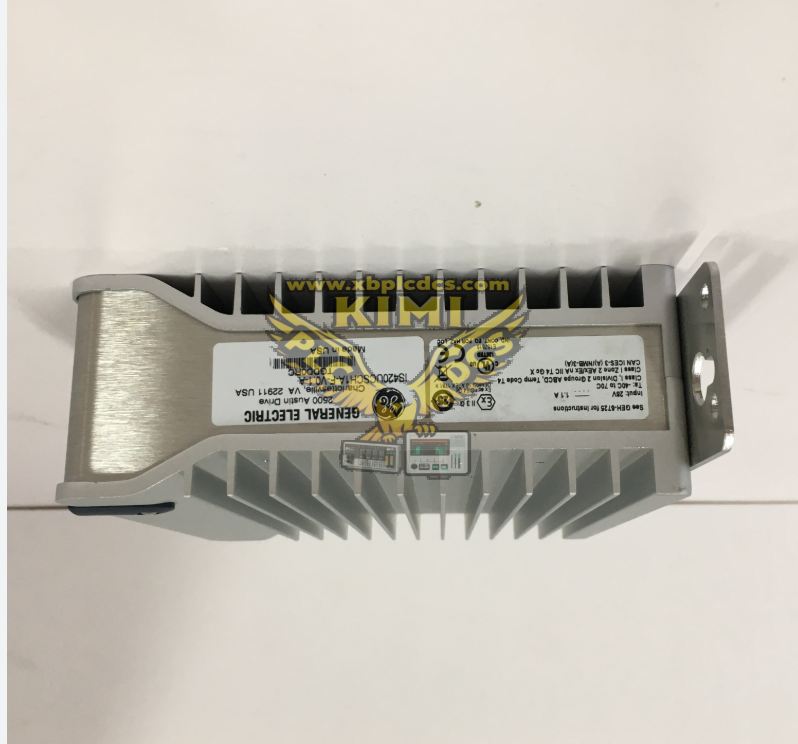

GE IS420UCSCH1A‑F‑V0.1‑A Mark VIe Quad‑Core UCSC Controller Module

Product Description

IS420UCSCH1A‑F‑V0.1‑A is a high‑performance compact quad‑core controller module for GE Vernova Speedtronic Mark VIe distributed turbine control system. Running QNX Neutrino real‑time operating system, it serves as main processing unit for critical rotating‑machinery control, executing deterministic control logic, protection algorithms and sequence control. It communicates with Mark VIe I/O packs over high‑speed IONet private Ethernet, supports simplex, dual and triple‑modular‑redundancy (TMR) deployment for high‑availability power generation systems. Firmware version V0.1‑A defines embedded software feature set. It is DIN‑rail or rack‑mounted for turbine‑hall cabinet installation and configured via ToolboxST engineering software.

Product Features

• Industrial quad‑core processor, ECC memory, high‑speed flash storage for control application and historical data logging
• Multiple IONet 10/100 Ethernet ports for deterministic communication with I/O modules, peer controllers and plant network; SRTP and standard TCP/IP protocol support
• Supports simplex, dual redundant and TMR triple modular redundancy configurations for safety‑critical turbine protection, compliant with IEC‑61508 SIL‑3 requirements
• Runs QNX Neutrino RTOS to guarantee fixed scan‑cycle execution for turbine speed control, load regulation and machine trip protection
• On‑board hardware watchdog timer, comprehensive self‑diagnostics for CPU, memory, power supply and communication channels
• Dual‑range DC power input 18‑36 VDC, suitable for 24 VDC industrial control power supply systems
• Front‑panel status LED indicators and local diagnostic interface for on‑site maintenance and fault inspection
• Embedded EFA (Embedded Field Agent) function supporting local data processing and remote condition monitoring connectivity
• Configured, programmed and firmware‑upgraded through GE ToolboxST engineering tool suite
• Robust compact housing, wide operating temperature for continuous 24‑hour operation in turbine‑hall harsh electromagnetic environment

Application Scenarios

• Gas turbine and steam turbine main control & protection for combined‑cycle and coal‑fired power plants
• Petrochemical refinery large turbo‑compressor speed regulation, anti‑surge control and machinery protection systems
• Balance‑of‑plant auxiliary equipment control in power generation units
• Industrial waste‑heat recovery turbine control for metallurgy and cement plant energy‑recovery units
• Distributed Mark VIe system expansion and replacement of legacy UCSB controller hardware
• Spare‑part retrofit for existing installed Mark VIe Speedtronic turbine control racks

Common Problems & Troubleshooting

• Module FAIL LED active, controller cannot enter run state: Verify 24 VDC input voltage range; check cabinet power supply and terminal torque; re‑seat module; run ToolboxST diagnostic test; confirm firmware V0.1‑A compatibility with system project.
• IONet communication loss with I/O packs: Inspect IONet Ethernet cable quality and connector locking status; avoid routing alongside high‑power cables; verify network switch configuration; check peer controller redundancy synchronization status.
• Redundant controller synchronization failure: Ensure both primary and standby modules run identical firmware version; check redundant sync network health; re‑download identical project configuration to all redundant controllers.
• Watchdog unexpected trip or controller auto‑reset: Check cabinet ventilation and ambient temperature; review control‑logic scan‑cycle overload; inspect DC power supply transient voltage fluctuation; execute memory diagnostic test.
• Cannot connect via ToolboxST: Confirm controller IP address and network segment matching; check firewall rules; verify physical service port connection; perform module soft reset if configuration corruption occurs.
• Control logic execution abnormal or point data frozen: Download validated project configuration; check forced‑point status; inspect I/O module health status reported over IONet bus.
• Spare‑part replacement mismatch risk: Use exact part number IS420UCSCH1A‑F‑V0.1‑A; confirm hardware revision and firmware V0.1‑A match original system; strictly perform anti‑static handling; full project download is mandatory after hardware replacement.
