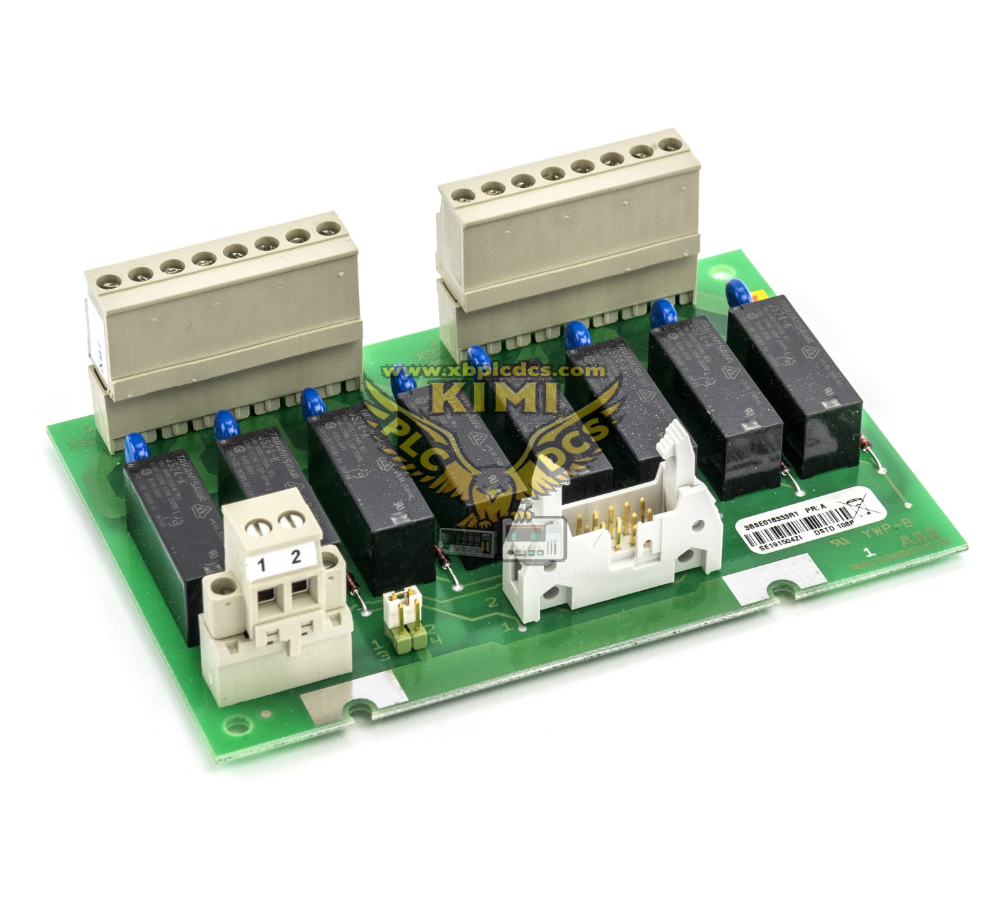

The ABB DSTD108P with part code 3BSE018333R1 is an 8-channel relay connection terminal unit designed for the ABB S800 distributed I/O system, cooperating with AC800M DCS controllers for industrial process control. This connection unit integrates eight independent mechanical relay output channels, serving as the intermediate wiring interface between S800 digital output modules and field-side actuators. It adopts spring cage wiring terminals for fast, reliable cable connection without screwdrivers. Each relay supports mixed AC/DC loads ranging from 24V to 250V, with a rated continuous load current of 3A per channel. Electrical isolation is built between the DCS control backplane circuit and field power loop to suppress ground loop noise, voltage surges and signal crosstalk. The unit uses flame-retardant UL94 V-0 plastic housing and supports standard 35mm DIN rail installation. The PCB is covered with protective conformal coating to withstand dust, moisture and weak corrosive gas inside control cabinets. Individual LED status indicators are arranged on the front panel for each channel to display relay working status and circuit faults. It holds CE, UL and cULus industrial safety certifications and is widely used as standard terminal accessories for S800 I/O racks.

• 8 independent built-in mechanical relay channels to drive field solenoid valves, auxiliary relays, indicator lights and small contactors
• Spring cage clamp terminals for quick field wiring, stable clamping force to prevent loose cables under vibration environments
• Galvanic isolation between low-voltage DCS control bus and high-voltage field load circuits to block electromagnetic interference
• Universal load compatibility: accepts 24V~250V AC or DC loads, maximum 3A continuous output per single relay channel
• Separate LED indicator for each channel to intuitively reflect relay pull-in status and open/short circuit abnormal conditions
• Standard DIN rail mounting structure with compact size, saving cabinet space for dense I/O layout schemes
• Built-in surge and overcurrent protection for each channel to reduce module damage risks caused by field wiring short-circuit errors
• Perfect matching with all standard digital output modules of ABB S800 I/O series for unified signal conversion and field wiring expansion
• Conformal coated circuit board to adapt to G3 corrosive industrial environments such as chemical factories and power plants

• Unified spare part specification for large DCS projects, convenient for centralized inventory management and on-site equipment maintenance

• Thermal Power Plants: Interlock control of boiler auxiliary fans, water pumps and drain valves under turbine and boiler DCS control systems
• Water and Wastewater Treatment Plants: On-off control of intake/outlet valves, chemical dosing pumps and on-site alarm lights
• Petrochemical and Refinery Facilities: Drive pipeline emergency cut-off valves, furnace auxiliary equipment interlock and fire alarm signal output
• Metallurgical Production Lines: Control furnace cooling water valves, exhaust fans and hydraulic actuators for smelting equipment
• Chemical and Fertilizer Factories: Safety interlock of reaction vessels, material delivery pumps and vent exhaust valves
• General Factory Automation: Conveyor line actuators, packaging machine auxiliary components and production line fault alarm signals
• DCS Upgrade and Retrofit Projects: Replacement connection unit for aging S800 I/O racks during automation system reconstruction

• Q: Can DSTD108P (3BSE018333R1) directly drive 220V AC large contactors with load current over 3A?
  A: Each relay channel has a 3A continuous current limit. For loads exceeding 3A, external intermediate relays must be installed for signal conversion.
• Q: The DCS issues normal output signals, but the corresponding channel LED of DSTD108P does not light up?
  A: Possible reasons include loose spring terminal wiring, damaged internal relay contacts, open field load circuit or loss of 24VDC backplane power supply.
• Q: Is hot plugging allowed for DSTD108P while the S800 rack is powered on?
  A: Hot swap operation is prohibited. Power off the entire rack before disassembling or installing the connection unit to avoid backplane communication failure and accidental field equipment actions.
• Q: What is the standard operating temperature range of ABB DSTD108P 3BSE018333R1?
  A: Operating temperature range: -25°C ~ +70°C; storage temperature: -40°C ~ +85°C; working humidity 0~95% non-condensing.
• Q: Can this 8-channel connection unit cooperate with non-S800 series ABB I/O modules?
  A: No. DSTD108P is a dedicated terminal unit exclusively for S800 I/O system and cannot be compatible with other ABB I/O series such as S100 or Advant.
• Q: How to solve frequent burnout of relay contacts during long-term continuous operation?
  A: Install freewheeling diodes for DC inductive loads and surge absorption capacitors for AC loads; strictly avoid long-term overload exceeding the rated 3A per channel.
