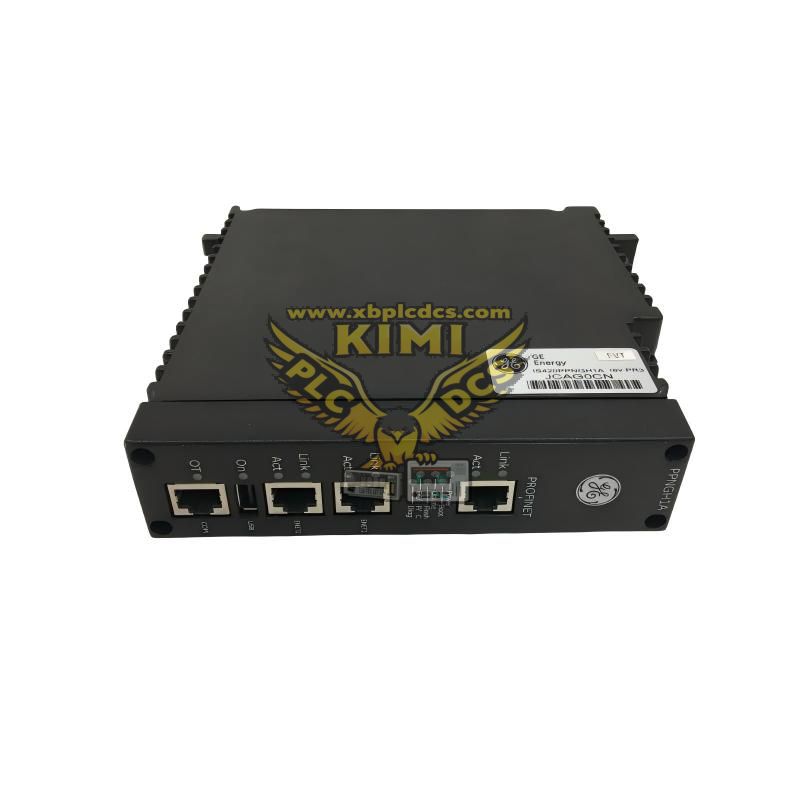

GE IS420PPNGH1A PROFINET Controller Gateway Module
Mark VIe PPNG Gateway for PROFINET I/O & Mark VIe Controller Communication, High‑Speed Industrial Ethernet Integration
1. Core Product Overview
The GE IS420PPNGH1A is a PPNG (PROFINET Controller Gateway) module for Mark VIe/VIeS Speedtronic turbine control systems, acting as a high‑speed interface between Mark VIe controllers and PROFINET I/O devices (e.g., sensors, actuators, drives) in gas/steam/hydro turbine applications. It runs on a 1066 MHz Intel EP80579 processor with QNX Neutrino OS and 256 MB DDR2 SDRAM, supporting PROFINET RT/IRT, Modbus TCP, and Ethernet I/O protocols for seamless industrial network integration. The module features dual redundant Ethernet ports (100/1000 Mbps), air‑cooled design (no fans/batteries), and vertical panel mounting for reliable operation in -5.56°C to 65°C industrial environments, with IP20 protection and compliance with IEC 61508 SIL 3 safety standards in certified architectures. It integrates with Mark VIe I/O backplanes via DC‑37 pin connectors, enabling simplex/dual/TMR redundant system configurations for fault‑tolerant turbine control.
• Core Role: PROFINET controller/gateway; Mark VIe‑to‑PROFINET data exchange; Modbus TCP protocol conversion; dual redundant Ethernet I/O integration

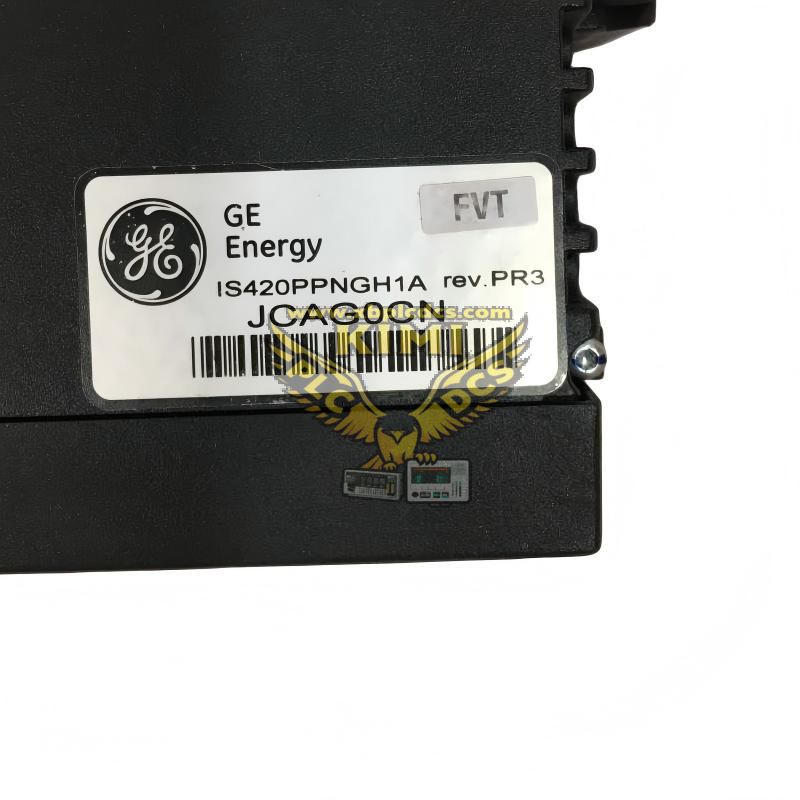

• Model Info: IS420PPNGH1A (full part number); PPNG PROFINET gateway module; Mark VIe Speedtronic series; made in USA; GEH‑6725 manual reference
• Key Specs: 1066 MHz EP80579 Intel; QNX Neutrino; 256 MB DDR2; dual 100/1000 Mbps Ethernet; 24 VDC power; -5.56°C~+65°C operating temp
• Reliability: Air‑cooled (no fans); vertical panel mount; IEC 61508 SIL 3; CE/UL certified; 24‑month warranty
2. Communication & Protocol Support
The IS420PPNGH1A supports PROFINET RT (Real‑Time) and IRT (Isochronous Real‑Time) protocols for high‑speed data exchange with PROFINET I/O devices, enabling cycle times as low as 1 ms for critical control loops. It features dual redundant 100/1000 Mbps Ethernet ports for Mark VIe controller communication and PROFINET LAN integration, with support for Modbus TCP protocol conversion to connect legacy serial devices to PROFINET networks. The module interfaces with ESWA 8‑port or ESWB 16‑port unmanaged switches for network expansion, with cabling distances up to 100 meters using standard Cat 5e/Cat 6 Ethernet cables. It includes LED indicators for real‑time status monitoring of power, Ethernet link, PROFINET communication, and module health, with fault diagnostics accessible via ControlST/ToolboxST software for quick troubleshooting.
• PROFINET: RT/IRT support; cycle time down to 1 ms; max data rate 6 kb per ms; up to 18 PROFINET I/O devices per network
• Ethernet: Dual 100/1000 Mbps; redundant network support; Mark VIe IONet integration; standard Cat 5e/Cat 6 cabling
• Protocol Support: PROFINET RT/IRT; Modbus TCP; Ethernet I/O; Mark VIe backplane communication
• Diagnostics: LED status indicators; ControlST/ToolboxST fault analysis; real‑time alarm reporting; module health monitoring
3. System Integration & Compliance
The IS420PPNGH1A integrates with Mark VIe controllers via DC‑37 pin backplane connectors, enabling high‑speed data transfer for turbine control applications, including overspeed protection, vibration analysis, and inlet temperature monitoring. It supports simplex/dual/TMR redundant system configurations, with<2 ms fault detection and switchover to ensure uninterrupted operation in critical power generation processes. The module complies with IEC 61010‑1 electrical safety, IEC 61000‑4 EMC immunity, and UL 61010 standards, with ATEX Zone 2/Class I, Div 2 hazardous area certification for use in explosive atmospheres. It is designed for vertical panel mounting in standard industrial enclosures, with 24 VDC power input (22.8–28.6 VDC) and soft‑start circuits to ensure stable operation during power fluctuations. The module meets IEC 61508 SIL 3 requirements in certified architectures, with fault isolation between networks to prevent single‑point failures from disabling system functions.
• System Integration: Mark VIe I/O backplane; ControlST/ToolboxST software; ESWA/ESWB switch compatibility; LED status monitoring
• Power Supply: 24 VDC input (22.8–28.6 VDC); soft‑start circuits; overvoltage/undervoltage protection;<20 W power consumption
• Compliance: CE/UL 61010/IEC 61000‑4; ATEX Zone 2/Class I, Div 2; IEC 61508 SIL 3 (certified architecture); RoHS compliant
• Environmental: -5.56°C~+65°C operating temp; 5–95% non‑condensing humidity; IP20 protection; air‑cooled design
4. Safety & Industrial Applications
The IS420PPNGH1A is built for industrial safety and reliability, with dual redundant Ethernet ports and support for simplex/dual/TMR controller communication to prevent single‑point failures from disrupting PROFINET communication functions. Its PROFINET RT/IRT protocols ensure deterministic data transfer for safety‑critical control loops, triggering safety interlocks if communication failures or data anomalies occur. The module’s air‑cooled design (no fans or batteries) reduces maintenance requirements and improves reliability in harsh industrial environments, with fault isolation between networks to prevent single‑point failures from disabling system functions. Typical applications include gas/steam turbine control, combined cycle power plants, hydroelectric facilities, and oil & gas compressor systems, where high‑speed PROFINET communication is essential for safe and efficient operation.
• Safety Features: PROFINET communication monitoring; communication failure alarm; fault isolation; SIL 3 capability (certified architecture); ESD execution
• Industrial Sectors: Power generation (gas/steam/hydro turbines); oil & gas (upstream/midstream); petrochemical; chemical processing; turbine OEMs
• System Topologies: Simplex/dual/TMR redundancy; PROFINET control loops; legacy device integration; Ethernet I/O networks; safety interlocks
• Network Security: I/O isolation; fault diagnostics; real‑time alarm reporting; access control via ControlST; network fault monitoring
5. Installation & Maintenance
Installation: Vertical panel mount; 24 VDC power connection; DC‑37 pin backplane; ESWA/ESWB switch integration; ControlST initial setup.
Configuration: PROFINET RT/IRT setup; Ethernet parameter setting; redundancy configuration; LED status verification; Modbus TCP conversion setup.
Maintenance: Visual inspection (dust, loose connections); Ethernet cable check; module temperature monitoring; 6‑month preventive maintenance.
Quality & Warranty: GE genuine module; factory‑tested for Mark VIe compatibility; 24‑month standard warranty; technical support for PROFINET configuration and system integration.
