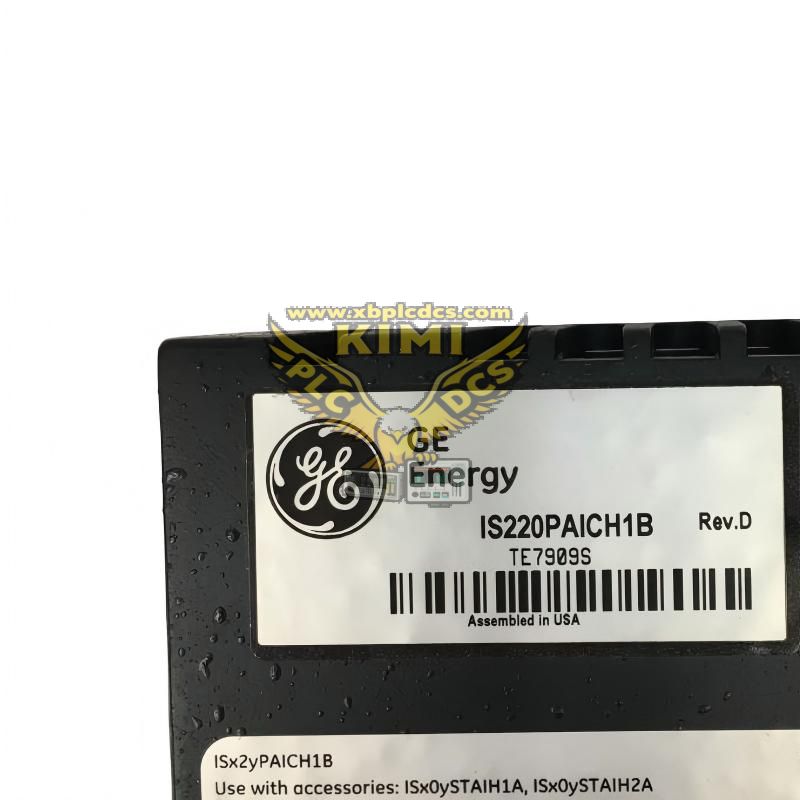

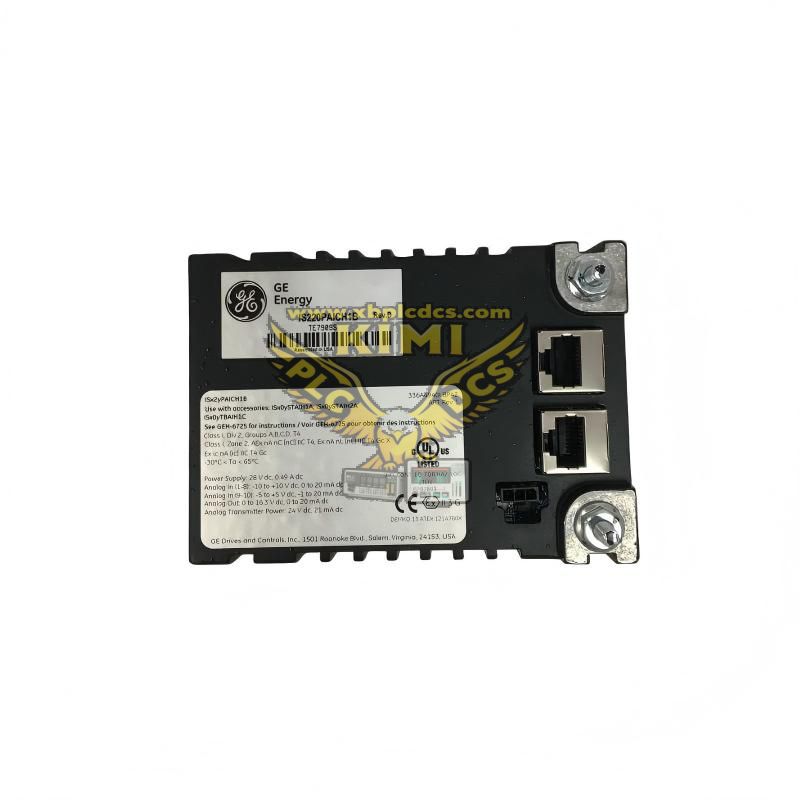

GE IS220PAICH1B Analog I/O Pack for Mark VIe Control
Mark VIe PAIC I/O Pack: 10×Analog Inputs, 2×Analog Outputs, 16‑Bit Resolution, Dual Ethernet & Redundant Power
1. Core Product Overview
The GE IS220PAICH1B is a Mark VIe PAIC (Analog Input/Output) I/O Pack, serving as the electrical interface between Mark VIe controllers and analog sensors/actuators in gas/steam turbine control systems. It features 10 high‑precision analog inputs (8 configurable for voltage/current, 2 for specialized current) and 2 0‑20mA analog outputs, with 16‑bit A/D conversion for accurate signal digitization. The pack integrates with Mark VIe I/O backplanes via DC‑37 pin connectors and dual 100MB full‑duplex Ethernet ports, supporting simplex/dual/triple‑redundant (TMR) systems for fault‑tolerant operation. It includes dual 24V DC redundant power inputs, optical isolation (≥2.5 kV) between field and logic sides, and LED indicators for power, communication, and I/O status. Designed for -40°C to +70°C industrial environments, it offers IP20 protection and conformal coating for reliable performance in power generation, oil & gas, and petrochemical applications.
• Core Role: Analog signal acquisition; 16‑bit A/D conversion; 0‑20mA control output; Mark VIe Ethernet I/O integration; redundant power
• Model Info: IS220PAICH1B (full part number); PAIC analog I/O pack; Mark VIe Speedtronic series; made in USA; conformal coating
• Key Specs: 10×analog inputs; 2×0‑20mA outputs; 16‑bit resolution; dual 24V DC power; dual 100MB Ethernet; -40°C~+70°C operating temp
• Reliability: Simplex/dual/TMR redundancy; surge suppression; industrial EMC immunity; 24‑month warranty; CE/UL certified
2. I/O Configuration & Signal Processing
The IS220PAICH1B provides flexible analog I/O configuration for turbine control applications, with 10 inputs optimized for industrial sensors. Inputs 1–8 are configurable via software for 1–5V, ±5V, ±10V voltage, or 0–20mA current loop signals, while inputs 9–10 support 0–20mA or ±1mA current inputs for specialized measurements (e.g., RTD/thermocouple signal conditioning). The pack uses 16‑bit A/D converters with 1000 samples/second scan rate for real‑time data acquisition, and digital filtering to reduce noise from industrial environments. It includes 2 independent 0–20mA analog outputs (12‑bit D/A resolution) for actuator control, with overcurrent/overvoltage protection to prevent damage to field devices. Removable terminal strips (compatible with IS200TBAIH1C/IS200STAIH1A/IS200STAIH2A) enable easy wiring maintenance, and LED indicators provide real‑time status feedback for power, communication, and I/O health.
• Inputs: 8×configurable (1–5V/±5V/±10V/0–20mA); 2×specialized (0–20mA/±1mA); 16‑bit A/D; 1000 samples/second
• Outputs: 2×0–20mA analog (12‑bit D/A); overcurrent/overvoltage protection; short‑circuit immunity; 2A max load per channel
• Signal Processing: Digital filtering; offset/gain calibration; cold junction compensation; sensor open/short detection; alarm threshold monitoring
• Isolation & Protection: ≥2.5 kV optical isolation; MOV surge suppression; individual channel fuses; dual power input switching
3. Integration & Compliance
The IS220PAICH1B integrates with Mark VIe controllers via dual 100MB full‑duplex Ethernet ports (IEEE 802.3) and DC‑37 pin backplane connectors, enabling high‑speed data transfer for critical control loops. It supports ControlST/ToolboxST software for configuration, fault diagnostics, and firmware updates, with remote monitoring capabilities via Mark VIe I/O networks. The pack complies with IEC 61010‑1 electrical safety, IEC 61000‑4 EMC immunity, and UL 61010 standards, with ATEX Zone 2/Class I, Div 2 certification for hazardous area operation. It is designed for panel mounting in standard industrial enclosures, with dual 24V DC power inputs (22.8–28 VDC) and soft‑start circuits to ensure stable operation during power fluctuations. The pack meets IEC 61508 SIL 2 requirements in certified architectures, with fault isolation between channels to prevent single‑point failures from disabling system functions.
• System Integration: Mark VIe I/O backplane; dual 100MB Ethernet; ControlST/ToolboxST; TMR redundancy support; remote diagnostics
• Power Supply: Dual 24V DC inputs (22.8–28 VDC); soft‑start circuits; overvoltage/undervoltage protection; 27 VA max power consumption
• Compliance: CE/UL 61010/IEC 61000‑4; ATEX Zone 2/Class I, Div 2; IEC 61508 SIL 2 (certified architecture); RoHS compliant
• Environmental: -40°C~+70°C operating temp; 5–95% non‑condensing humidity; IP20 protection; conformal coating
4. Safety & Industrial Applications
The IS220PAICH1B is built for industrial safety and reliability, with dual redundant power inputs and simplex/dual/TMR controller communication to prevent single‑point failures from disrupting analog control functions. Its 16‑bit A/D conversion ensures accurate measurement of critical process variables (e.g., temperature, pressure, flow), triggering safety interlocks if values exceed predefined thresholds. The pack’s optical isolation (≥2.5 kV) prevents electrical interference from damaging control logic, and surge suppression protects against voltage spikes in harsh industrial environments. Typical applications include gas/steam turbine control, combined cycle power plants, oil & gas compressors, and petrochemical process control, where reliable, real‑time analog I/O is essential for safe and efficient operation.
• Safety Features: Analog input monitoring; overcurrent/overvoltage protection; fault isolation; SIL 2 capability (certified architecture); ESD execution
• Industrial Sectors: Power generation (gas/steam turbines); oil & gas (upstream/midstream); petrochemical; chemical processing; turbine OEMs
• System Topologies: Simplex/dual/TMR redundancy; analog control loops; sensor signal conditioning; actuator control; safety interlock networks
• Network Security: I/O isolation; fault diagnostics; real‑time alarm reporting; access control via ControlST; network fault monitoring
5. Installation & Maintenance
Installation Notes: Panel mount; dual 24V DC power connection; DC‑37 pin backplane; terminal strip wiring (IS200TBAIH1C/STAIH1A/STAIH2A); ControlST initial setup.
Configuration: Input range setting; output calibration; redundancy setup; LED status verification; Ethernet parameter configuration.
Maintenance: Visual inspection (burn marks, loose connections); terminal strip cleaning; input/output calibration; 6‑month preventive maintenance.
Quality & Warranty: GE genuine module; factory‑tested for Mark VIe compatibility; 24‑month standard warranty; technical support for I/O configuration and system integration.
