ABB SYNCHROTACT5 3BHB006713R0217 Automatic Synchronizing Relay

5th - Gen Dual - Channel Synchronizer for Generator - Grid & Line - Line Paralleling with Redundant Safety & Multi - Breaker Support

1. Core Overview

The ABB SYNCHROTACT5 3BHB006713R0217 is a fifth - generation automatic synchronizing relay designed for safe and reliable synchronization of generators to power grids and paralleling of synchronous lines in utility, industrial, and distributed generation (DG) applications. It adopts a dual - channel redundant architecture (two independent microprocessor systems from different manufacturers) to maximize safety and prevent asynchronous closing, and can control up to 7 power circuit breakers with independent parameter sets via configurable digital I/O. The dedicated SynView 5 software simplifies commissioning, configuration, and maintenance, while its identical form - factor with SYNCHROTACT6 allows for seamless upgrades.

• Core Role: Generator - grid synchronization, line - line paralleling, dead bus/dead line closing control • Key Specs: 24V DC / 100-240V AC (50/60Hz); -20°C to +60°C operation; IP20; ±1ms sync precision • Model Info: SYNCHROTACT5; Ordering Code: 3BHB006713R0217; 7 - breaker parameter sets • Redundancy: Dual - channel design (different HW/SW) for maximum safety & availability

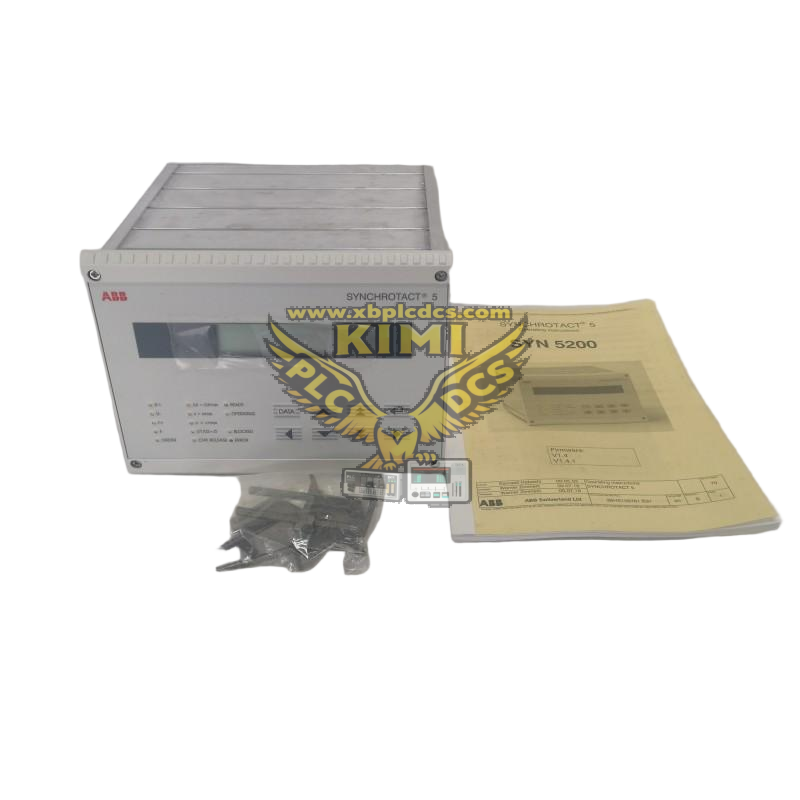

ABB SYNCHROTACT5 3BHB006713R0217 (1).jpg

2. Synchronization & Control Features

This relay delivers automatic synchronization with precise voltage, frequency, and phase - angle matching, plus dead bus/dead line closing capability for black - start scenarios. It supports 50Hz, 60Hz, and 16.7Hz systems, and integrates comprehensive protection functions including overvoltage, undervoltage, overfrequency, and underfrequency locks to ensure stable paralleling. Configurable digital inputs/outputs enable selection of 7 parameter sets for diverse breaker requirements, while SynView 5 software provides real - time monitoring, event logging, and remote diagnostics via TCP/IP.

• Synchronization Modes: Auto sync (gen - grid/line - line), dead bus/dead line closing • Protection Locks: Overvoltage/undervoltage, overfrequency/underfrequency, phase mismatch interlocks • Parameter Sets: 7 configurable sets for different breakers; selected via digital inputs • Event Logging: Time - stamped sync events, fault records, and diagnostic data for post - incident analysis

ABB SYNCHROTACT5 3BHB006713R0217 (2).jpg

3. Communication & System Integration

The 3BHB006713R0217 supports IEC 61850 (GOOSE), Modbus RTU/TCP, PROFIBUS, and LON for seamless integration with SAS, SCADA, and DCS. Remote control and servicing are enabled via TCP/IP and fieldbuses, allowing real - time data sharing and remote diagnostics without on - site visits. The DIN - rail/panel - mount design fits standard switchgear cabinets, and its identical footprint to SYNCHROTACT6 allows for plug - and - play upgrades with minimal rework.

• Protocols: IEC 61850 (GOOSE), Modbus RTU/TCP, PROFIBUS, LON • Remote Access: TCP/IP remote service; SynView 5 for configuration & diagnostics • Installation: DIN - rail or panel mount; switchgear - compatible; SYNCHROTACT6 upgrade - ready • Interfaces: Configurable digital I/O, RS - 485, Ethernet (TCP/IP)

ABB SYNCHROTACT5 3BHB006713R0217 (4).jpg

Typical Applications & Compliance

Key Applications: Thermal/hydropower plants; industrial cogeneration; DG (solar/wind) grid - code compliance; MV/HV substations; black - start systems.

Compliance: IEC protection standards; CE certified; EMC compliant (IEC 61000)

Service: 24/7 global hotline; remote support via internet; ABB genuine spare parts
