GE Fanuc PCIE-5565-PIORC High-Speed Reflective Memory Node Card--KIMI

Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

GE Fanuc PCIE-5565-PIORC High-Speed Reflective Memory Node Card

Real-Time Data Sharing & Synchronization for Industrial Control, Test & Simulation Systems

1. Product Overview

The PCIE-5565-PIORC is a high-performance PCI Express (PCIe) reflective memory node card developed by GE Fanuc, designed for real-time data sharing and synchronization in distributed industrial control systems, aerospace test platforms, and military simulation applications. It features a 2 GB reflective memory array, dual optical fiber ports (multimode, LC connectors), and PCIe x4 interface, enabling deterministic, low-latency (≤ 2 µs) data transmission across reflective memory networks. Compatible with Windows, Linux, VxWorks, and other real-time operating systems, it supports up to 256 nodes in a single network, with error detection and correction (EDAC) for data integrity. Built with industrial-grade components, it delivers reliable performance in harsh environments (-40°C to +85°C), ensuring seamless data exchange between controllers, I/O modules, and HMI stations in critical applications.

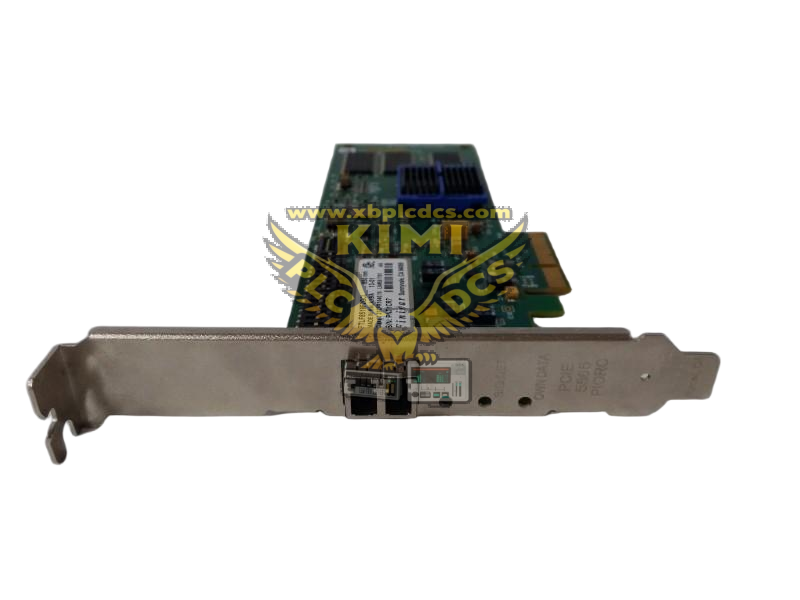

PCIE-5565-PIORC PCIE-5565PIORC-100000 350-9367875565-100000 A1 -1.jpg

2. Key Technical Specifications

• Brand & Model: GE Fanuc PCIE-5565-PIORC (PCIe Reflective Memory Node Card)

• Product Type: PCI Express x4 Reflective Memory Node Card (2 GB Memory Array)

• Core Function: Real-Time Data Sharing, Network Synchronization, Deterministic Communication

• Reflective Memory Size: 2 GB DDR3 SDRAM (EDAC Protected for Data Integrity)

• Network Interface: 2x Multimode Optical Fiber Ports (LC Connectors); 1.25 Gbps Transfer Rate per Port

• Host Interface: PCI Express x4 (Gen 2, 5.0 GT/s); Compatible with PCIe x8/x16 Slots

• Latency: ≤ 2 µs (Typical, for Full Memory Cycle)

• Network Topology: Support for Ring, Star, and Daisy-Chain Configurations

• Maximum Nodes per Network: 256 Nodes

• Operating Systems: Windows (7/10/Server), Linux, VxWorks, QNX, INtime

• Power Consumption: 15 W (Typical, Full Load)

• Form Factor: Standard Full-Height, Full-Length PCIe Card (167.6 mm × 111.2 mm)

• Operating Temperature: -40°C to +85°C (-40°F to +185°F)

• Storage Temperature: -55°C to +125°C (-67°F to +257°F)

• Environmental Rating: MIL-STD-810G (Shock, Vibration); MIL-STD-461F (EMI/EMC)

• Certifications: CE, FCC Class A, UL Recognized

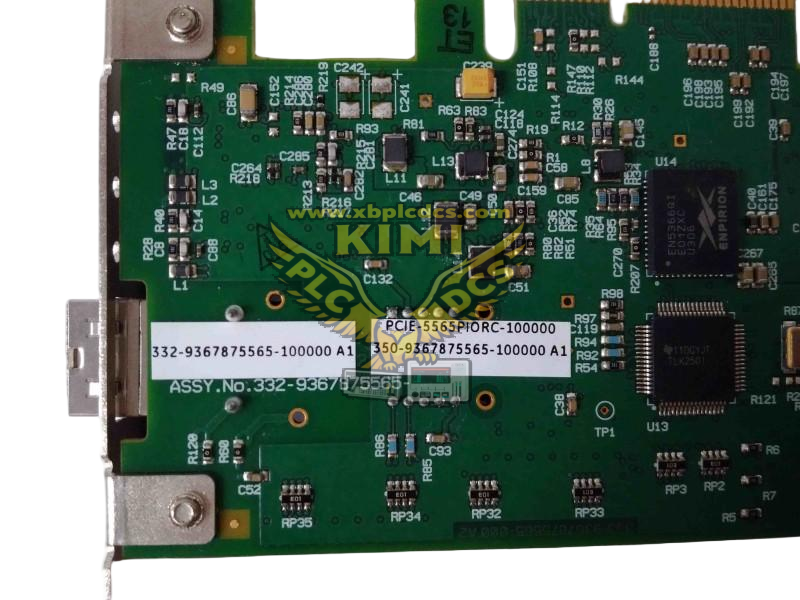

PCIE-5565-PIORC PCIE-5565PIORC-100000 350-9367875565-100000 A1 -4.jpg

3. Core Features

• Low-Latency Communication: ≤ 2 µs latency ensures deterministic data transfer for real-time control systems.

• EDAC Protected Memory: 2 GB DDR3 SDRAM with error detection and correction to prevent data corruption.

• Dual Fiber Ports: Redundant optical interfaces for network fault tolerance; multimode fiber for long-distance transmission (up to 500 m).

• Flexible Topologies: Supports ring, star, and daisy-chain configurations to meet diverse system architecture needs.

• Broad OS Compatibility: Works with mainstream Windows/Linux and real-time operating systems (VxWorks/QNX).

• High Node Count: Enables up to 256 nodes in a single network for large-scale distributed systems.

• Industrial-Grade Reliability: Rugged design for harsh environments with MIL-STD compliance for military/aerospace applications.

• Plug-and-Play Integration: Easy installation into PCIe slots with driver support for quick system deployment.

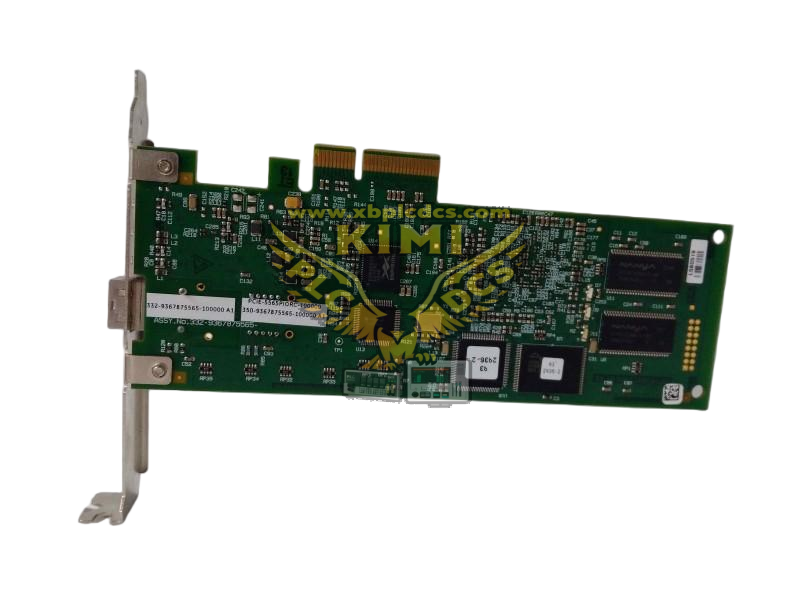

PCIE-5565-PIORC PCIE-5565PIORC-100000 350-9367875565-100000 A1 -2.jpg

4. Typical Applications

• Industrial Control Systems: Distributed PLC/DCS Data Synchronization in Power Generation, Oil & Gas, and Petrochemical Plants.

• Aerospace & Defense: Flight Simulation, Radar Signal Processing, and Weapon System Real-Time Data Sharing.

• Test & Measurement: Automotive NVH Testing, Wind Tunnel Data Acquisition, and Industrial Robot Control.

• Military Simulation: Joint Tactical Training Systems and Virtual Battlefield Environment Synchronization.

• Transportation: High-Speed Railway Signaling Systems and Urban Rail Transit Distributed Control.

• Energy: Smart Grid Real-Time Monitoring and Renewable Energy Plant Control System Data Exchange.

PCIE-5565-PIORC PCIE-5565PIORC-100000 350-9367875565-100000 A1 -3.jpg

5. Installation & Maintenance

Installation Steps

• Mounting: Insert into a PCIe x4/x8/x16 slot on the host computer; secure with a chassis screw.

• Wiring: Connect LC multimode fiber cables to the dual fiber ports (configure redundant or daisy-chain topology).

• Driver Installation: Install the corresponding driver for the target operating system (Windows/Linux/VxWorks).

• Configuration: Set network parameters (node ID, memory address mapping) via the GE Reflective Memory Configuration Tool.

• Testing: Verify network connectivity, latency, and data integrity using the built-in diagnostic tools.

Maintenance Tips

• Daily: Check fiber port LEDs for link status; monitor memory EDAC error logs via system software.

• Weekly: Inspect fiber connectors for dust or damage; clean with fiber optic cleaning wipes if necessary.

• Monthly: Validate network latency and data transmission accuracy with test tools; update drivers/firmware if available.

• Quarterly: Test redundant fiber port failover functionality to ensure network fault tolerance.

• Annual: Inspect the card for component degradation; replace if EDAC error rates exceed the threshold.

PCIE-5565-PIORC PCIE-5565PIORC-100000 350-9367875565-100000 A1.jpg

Technical Document | GE Fanuc PCIE-5565-PIORC | PCIe Reflective Memory Node Card | Real-Time Distributed Control Systems

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.
