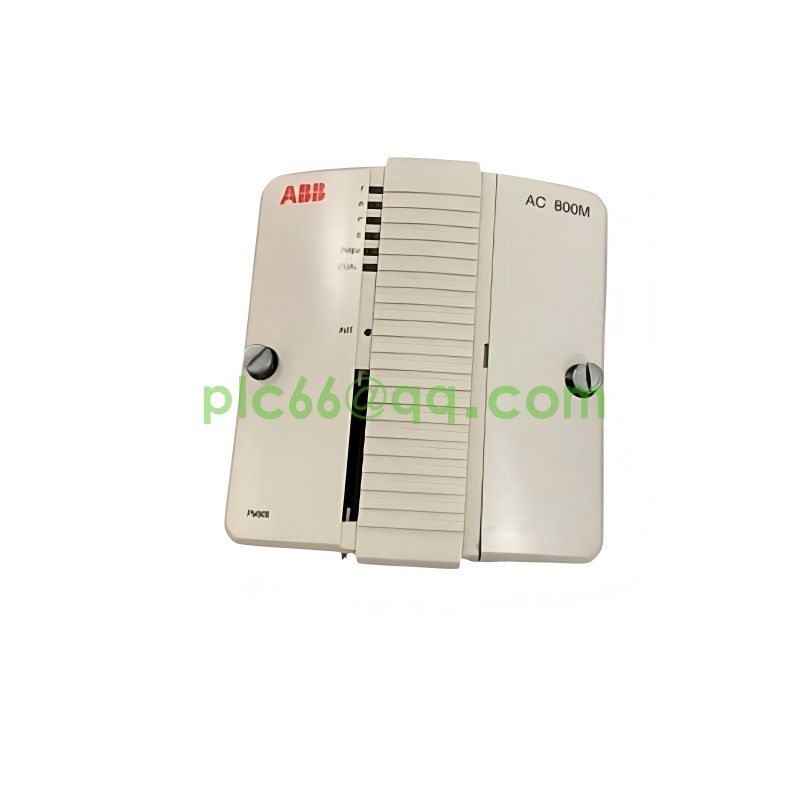

PM860AK01 3BSE066495R1 AC800M Controllers

As a controller of the AC800M series, PM860AK03BSE066495R1 features powerful control and communication capabilities.

The CPU board integrates the power supply unit, processor and memory, and can store and run firmware, hardware configuration information and application programs.

It supports 12 fieldbus module expansions, integrates 2 Ethernet interfaces and 2 RS232C interfaces, and can communicate with other devices through multiple communication protocols.

It can achieve all-round redundancy, support a wide range of I/O signals, and handle various tasks from basic logical operations to advanced Control.

It can be programmed and configured through the Compact Control Builder programming software and is suitable for various industrial control scenarios

Product net depth: 160mm

Product clear height: 200mm

Product net width: 140mm

Net weight of the product :1.1 kg

48MHz and 16MB Package including: - PM860A, CPU - TP830, Baseplate - TB850, CEX-bus terminator - TB807, ModuleBus terminator - Battery for memory backup (4943013-6) - No license included

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM860A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network,

 and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals,

whereas the other port (COM4) is isolated and used for the connection of a configuration tool.

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism.

All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity.

The address can be found on the Ethernet address label attached to the TP830 base plate.

Features and benefits

• Reliability and simple fault diagnosis procedures
• Modularity, allowing for step-by-step expansion
• IP20 Class protection without the requirement for enclosures
• The controller can be configured with 800xA control builder
• The controller has full EMC certification
• Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
