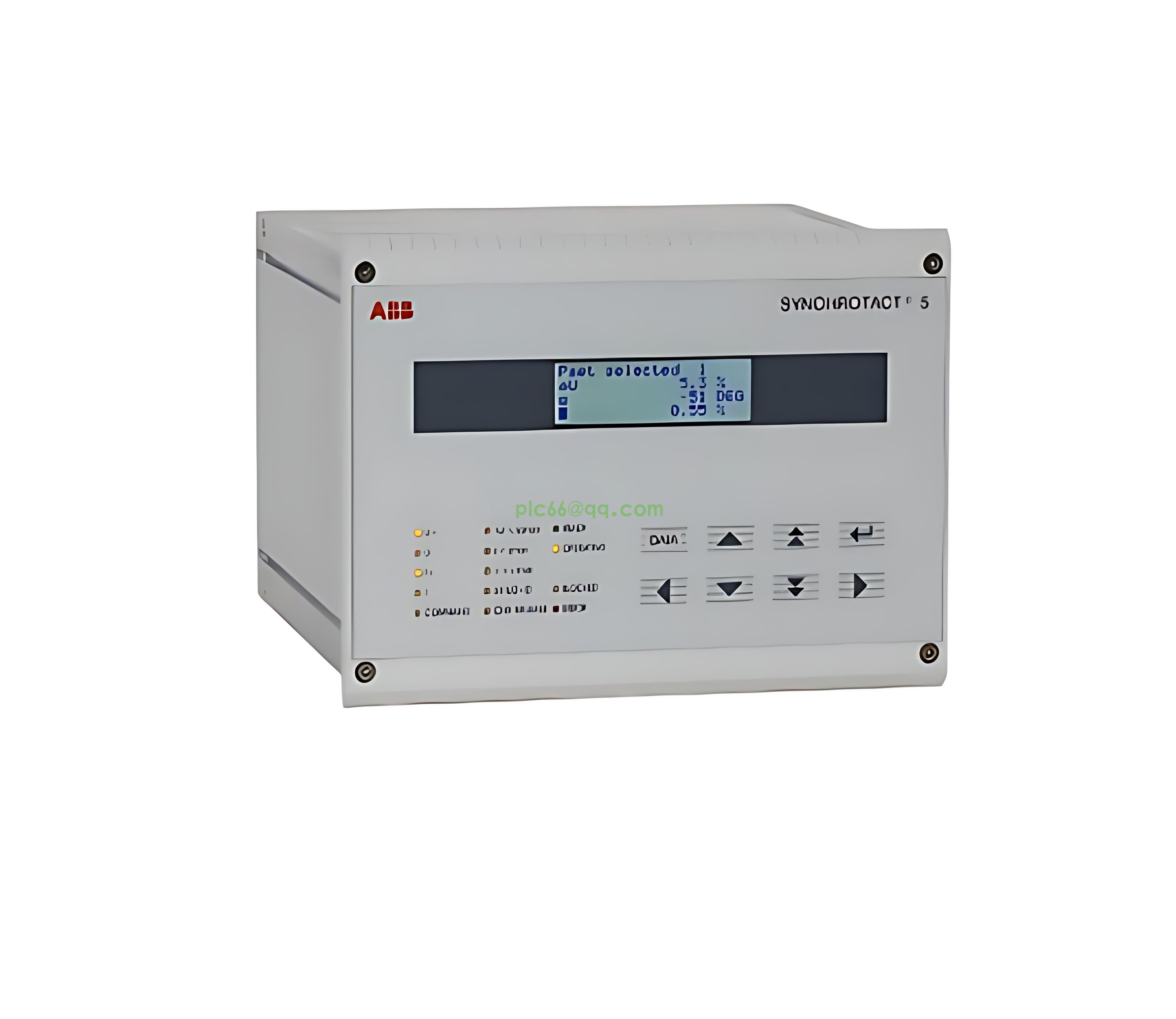

The SYN5201A-Z (part number 3BHB006714R2217, V2217) SYNCHROTACT 5 is a sophisticated digital synchronization and paralleling unit from ABB.

 Its primary function is to safely and automatically connect electrical power sources, such as generators, to an existing power grid or to parallel two independent power lines.

It achieves this by precisely measuring and matching critical electrical parameters like voltage, frequency, and phase angle between the two sources before issuing a closing command to a circuit breaker.

This intricate process prevents damaging surges and ensures a smooth and stable integration into the power system.

This device is widely used in power generation plants, industrial facilities with their own power generation capabilities, and power distribution systems where the reliable and safe paralleling of synchronous machines and networks is paramount.

The SYNCHROTACT 5 can operate as a fully automatic synchronizer or as a monitoring element for manual paralleling (synchrocheck). Its advanced features,

 including precise voltage and frequency matching functions, a robust event log, and remote diagnostic capabilities via tools like SynView, contribute to enhanced system reliability, increased operational efficiency, and critical protection against electrical disturbances.

SYN5201A-Z (部件号 3BHB006714R2217, V2217) SYNCHROTACT 5 是ABB推出的一款先进的数字同步和并联单元。其主要功能是安全、自动地将发电机等电源与现有电网连接，或将两条独立的电力线路并联。

它通过精确测量和匹配两个电源之间的电压、频率和相角等关键电气参数，然后在合适的时机向断路器发出合闸指令来实现这一目标。这个复杂的过程可以防止破坏性电涌，并确保平稳、稳定地并入电力系统。

该设备广泛应用于发电厂、拥有自备发电设施的工业设施以及电力分配系统，在这些地方，同步电机和电网的可靠安全并联至关重要。SYNCHROTACT 5 可以作为全自动同步器运行，

也可以作为手动并联的监控元件（同步校验）。其先进功能，包括精确的电压和频率匹配功能、强大的事件日志以及通过SynView等工具实现的远程诊断能力，有助于提高系统可靠性、增强运行效率，并对电气干扰提供关键保护。

产品ID:3BHB006714R2217

ABB型号名称:SYN 5201A-Z,V2217

目录说明:SYN 5201A-Z,V2217; SYNCHROTACT 5

详细描述:SYN 5201A-Z,V2217

产品净深:220 mm

产品净高:163 mm

产品净重:5 kg

产品净宽:221 mm

产品应用类型:Spare_Parts

Replacement depends on the product type: Upgrade kit needed.
ACS1000: 3BHS94271R0003 from SYN 5201a-Z,V277
to SYN 6201-0203
ACS5000: 3BHS94271R0001 from SYN 5201a-Z,V277 to SYN 6201-
0203
//19.05.2025
