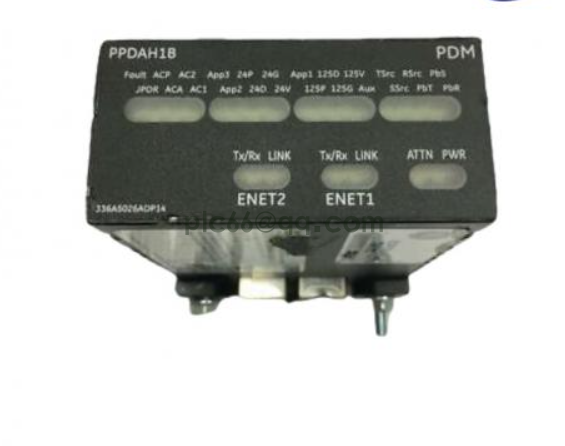

The IS220PPDAH1B is a Processor Pack for Digital and Analog I/O (PPDA) module manufactured by GE (General Electric) for their Mark VIe and Mark VIeS (Safety) control systems. It is a key component that integrates both processing capabilities and a variety of digital and analog I/O within a single module, commonly used in GE's turbine control and balance-of-plant applications.

English Description

The GE IS220PPDAH1B is a sophisticated Processor Pack for Digital and Analog I/O (PPDA) module, part of the advanced GE Mark VIe control system. The Mark VIe is GE's latest generation of control, protection, and monitoring systems for critical assets like gas and steam turbines, as well as associated power plant auxiliary systems. The PPDA module combines a high-speed processor with a comprehensive set of I/O, reducing the need for separate modules for certain applications.

Key features and characteristics of the IS220PPDAH1B include:

• Manufacturer: GE (General Electric).

• Product Family: GE Mark VIe Control System (and potentially Mark VIeS for safety applications).

• Module Type: Processor Pack with Digital and Analog I/O (PPDA). This implies it has both processing power and integrated I/O capabilities.

• Function:

• Distributed Processing: Contains a dedicated processor that executes local control logic for its integrated I/O, offloading tasks from the main turbine controller (UCSB/UCSA).

• Integrated Digital I/O: Provides a significant number of digital input (DI) and digital output (DO) channels for interfacing with binary field devices (e.g., limit switches, solenoid valves, contactors).

• Integrated Analog I/O: Offers analog input (AI) and potentially analog output (AO) channels for connecting to continuous measurement devices (e.g., temperature transmitters, pressure sensors, flow meters) and modulating control devices.

• Signal Conditioning: Performs necessary signal conditioning, filtering, and conversion for both digital and analog signals.

• IONet Communication: Communicates with the main Mark VIe controller(s) over the high-speed, peer-to-peer IONet (I/O Network) using Ethernet Global Data (EGD) protocol.

• Density: Designed for high I/O density within a compact footprint.

• Diagnostics: Features extensive built-in diagnostics for each I/O channel and the module itself, aiding in quick fault identification and troubleshooting.

• Robust Design: Built for the demanding environmental conditions of power plants and industrial facilities, ensuring high reliability and availability.

• Applications:

• Turbine Auxiliary Systems: Controlling and monitoring pumps, fans, valves, and other ancillary equipment associated with turbines.

• Balance of Plant (BOP) Control: Extending Mark VIe control to other parts of a power plant outside the direct turbine-generator control.

• Specific Process Skids: Providing integrated control and I/O for smaller, localized process units.

• Upgrade/Modernization Projects: Offering a compact and powerful solution for replacing older I/O systems.

The IS220PPDAH1B is a versatile and compact solution within the GE Mark VIe system, enabling distributed intelligence and comprehensive I/O management for a wide range of power plant and industrial control applications.

中文描述

IS220PPDAH1B 是由 GE（通用电气）为其 Mark VIe 和 Mark VIeS（安全）控制系统 制造的数字量和模拟量 I/O 处理器模块 (PPDA)。它是集成处理能力和多种数字量和模拟量 I/O 于一体的关键组件，常用于 GE 的燃气轮机控制和电厂辅助系统应用中。

主要特点和功能

GE IS220PPDAH1B 是一款复杂的数字量和模拟量 I/O 处理器模块 (PPDA)，是先进的 GE Mark VIe 控制系统 的一部分。Mark VIe 是 GE 最新一代用于控制、保护和监控关键资产（如燃气轮机和蒸汽轮机以及相关的电厂辅助系统）的系统。PPDA 模块将高速处理器与全面的 I/O 集成在一起，减少了某些应用对独立模块的需求。

IS220PPDAH1B 的主要特点和功能包括：

• 制造商： GE（通用电气）。

• 产品系列： GE Mark VIe 控制系统（可能也包括 Mark VIeS 用于安全应用）。

• 模块类型： 数字量和模拟量 I/O 处理器模块 (PPDA)。这意味着它同时具有处理能力和集成的 I/O 功能。

• 功能：

• 分布式处理： 包含一个专用处理器，执行其集成 I/O 的本地控制逻辑，从而减轻主燃气轮机控制器 (UCSB/UCSA) 的任务。

• 集成数字量 I/O： 提供大量数字量输入 (DI) 和数字量输出 (DO) 通道，用于与二进制现场设备（例如限位开关、电磁阀、接触器）进行接口。

• 集成模拟量 I/O： 提供模拟量输入 (AI) 和可能的模拟量输出 (AO) 通道，用于连接连续测量设备（例如温度变送器、压力传感器、流量计）和调节控制设备。

• 信号调理： 对数字量和模拟量信号执行必要的信号调理、滤波和转换。

• IONet 通信： 通过高速、点对点 **IONet（I/O 网络）**使用 以太网全局数据 (EGD) 协议与主 Mark VIe 控制器进行通信。

• 密度： 设计用于在紧凑的体积内实现高 I/O 密度。

• 诊断： 每个 I/O 通道和模块本身都具有广泛的内置诊断功能，有助于快速识别故障并进行故障排除。

• 坚固设计： 专为发电厂和工业设施的恶劣环境条件而设计，确保高可靠性和可用性。

• 应用：

• 燃气轮机辅助系统： 控制和监控与燃气轮机相关的泵、风机、阀门和其他辅助设备。

• 电厂辅助系统 (BOP) 控制： 将 Mark VIe 控制扩展到除直接燃气轮机发电机控制之外的电厂其他部分。

• 特定工艺撬块： 为较小、本地化的工艺单元提供集成控制和 I/O。

• 升级/现代化项目： 为替换旧的 I/O 系统提供紧凑而强大的解决方案。

IS220PPDAH1B 是 GE Mark VIe 系统中一款多功能且紧凑的解决方案，可实现分布式智能和全面的 I/O 管理，适用于广泛的电厂和工业控制应用
