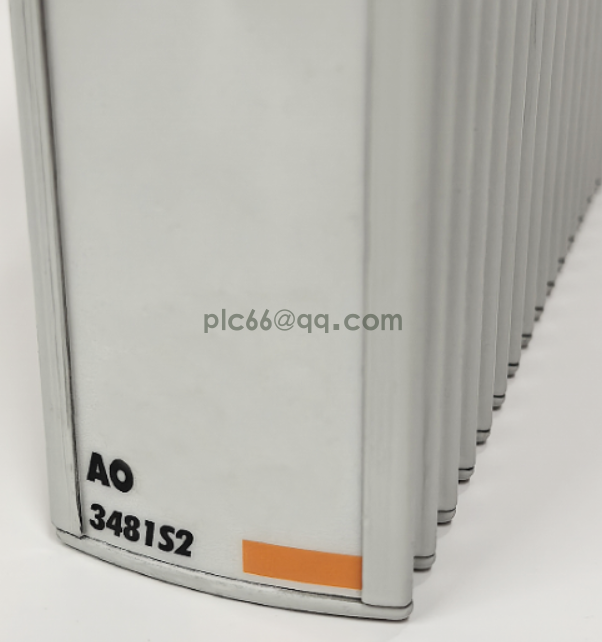

The TRICONEX TRI-GP 3481S2 is a General Purpose (GP) Analog Output (AO) Module for the Triconex safety instrumented system (SIS). It is manufactured by Triconex (now part of Schneider Electric) and is designed to provide highly reliable and accurate analog output signals to control devices in safety-critical industrial applications. The "S2" often indicates a specific revision or sub-model.

English Description

The Triconex TRI-GP 3481S2 is a robust and highly available Analog Output module that forms part of the Triconex safety instrumented system (SIS). This module is essential for precisely controlling modulating devices (e.g., control valves, variable speed drives) in processes where safety, integrity, and continuous operation are paramount. As part of the Triple Modular Redundant (TMR) Tricon system, it inherently offers exceptional fault tolerance.

Key features and characteristics of the TRI-GP 3481S2 include:

• Manufacturer: Triconex (a brand of Schneider Electric).

• System Compatibility: Designed for use with the Tricon SIS, which operates on a TMR architecture for maximum availability and safety.

• Module Type: General Purpose (GP) Analog Output (AO) Module. The "GP" suggests it's a standard, widely applicable analog output type.

• Number of Channels: The 3481S2 typically provides 8 isolated analog output channels.

• Output Type: Commonly supports standard industrial analog output ranges, primarily 4-20 mA current outputs. These outputs are used to control field devices proportionally.

• Resolution and Accuracy: Designed for high resolution and accuracy in analog signal generation, which is crucial for precise control and safety actions.

• Isolation: Features channel-to-channel isolation and isolation from the system, which is vital for preventing ground loops, protecting the control system from electrical noise, and ensuring safety in case of field device faults.

• Diagnostic Capabilities: Includes extensive built-in diagnostics for each channel to ensure output integrity and detect potential issues:

• Open-circuit detection: Detects if a field wire is broken.

• Short-circuit detection: Detects if a field wire is shorted.

• Over-range/Under-range detection: Checks if the output current is outside the expected limits.

• Watchdog timers: Monitors the control process to ensure outputs are updated correctly.

• Feedback/Readback: Some advanced AO modules include the ability to read back the actual current being driven, for verification. These diagnostics provide critical information for maintaining system health and pinpointing faults without compromising safety.

• Hot Swappable: Designed for hot-swapping, allowing the module to be replaced online without interrupting the safety function of the system, minimizing downtime during maintenance.

• Safety Certification: As a component of the Tricon SIS, the 3481S2 contributes to the overall system's Safety Integrity Level (SIL) certification (typically SIL 3), ensuring it meets stringent international safety standards (e.g., IEC 61508/61511).

• Applications: Essential for safely controlling modulating devices in processes such as:

• Oil & Gas: Controlling critical valves (e.g., choke valves, bypass valves), regulating pump speeds.

• Chemical & Petrochemical: Reactor temperature control, flow control in safety loops.

• Power Generation: Fuel gas control, steam valve positioning.

• Refining, Pharmaceuticals, Mining: Any application requiring precise and fault-tolerant analog control for safety.

The TRI-GP 3481S2 Analog Output Module is a fundamental component of the Tricon SIS, ensuring that critical continuous process control commands are accurately and safely delivered to field devices for system protection and operation.

中文描述

TRICONEX TRI-GP 3481S2 是 Triconex 安全仪表系统 (SIS) 的通用 (GP) 模拟量输出 (AO) 模块。它由 **Triconex（现为施耐德电气的一部分）**制造，旨在为安全关键型工业应用中的控制设备提供高度可靠和准确的模拟量输出信号。 “S2”通常表示特定的修订版或子型号。

主要特点和功能

Triconex TRI-GP 3481S2 是一款坚固且高可用的模拟量输出模块，是 Triconex 安全仪表系统 (SIS) 的组成部分。该模块对于在安全性、完整性和持续运行至关重要的过程中精确控制调节设备（例如控制阀、变频驱动器）至关重要。作为三重模块冗余 (TMR) Tricon 系统的一部分，它本身就提供了卓越的容错能力。

TRI-GP 3481S2 的主要特点和功能包括：

• 制造商： Triconex（施耐德电气旗下品牌）。

• 系统兼容性： 专为与 Tricon SIS 配合使用而设计，该系统采用 TMR 架构，以实现最大可用性和安全性。

• 模块类型： 通用 (GP) 模拟量输出 (AO) 模块。“GP”表示它是标准且广泛适用的模拟量输出类型。

• 通道数量： 3481S2 通常提供 8 个隔离的模拟量输出通道。

• 输出类型： 通常支持标准工业模拟量输出范围，主要是 4-20 mA 电流输出。这些输出用于按比例控制现场设备。

• 分辨率和精度： 设计用于高分辨率和高精度的模拟信号生成，这对于精确控制和安全操作至关重要。

• 隔离： 具有通道间隔离和与系统隔离的功能，这对于防止接地回路、保护控制系统免受电噪声以及在现场设备发生故障时确保安全至关重要。

• 诊断功能： 包含每个通道的广泛内置诊断功能，以确保输出完整性并检测潜在问题：

• 开路检测： 检测现场电线是否断开。

• 短路检测： 检测现场电线是否短路。

• 超量程/欠量程检测： 检查输出电流是否超出预期范围。

• 看门狗定时器： 监控控制过程，以确保输出正确更新。

• 反馈/回读： 某些高级 AO 模块包括回读实际驱动电流的能力，用于验证。 这些诊断功能提供了维护系统健康和查明故障的关键信息，而不会损害安全性。

• 热插拔： 设计用于热插拔，允许在线更换模块，而不会中断系统的安全功能，从而最大限度地减少维护期间的停机时间。

• 安全认证： 作为 Tricon SIS 的组件，3481S2 有助于整个系统的安全完整性等级 (SIL) 认证（通常为 SIL 3），确保其符合严格的国际安全标准（例如 IEC 61508/61511）。

• 应用： 对于在以下过程中安全控制调节设备至关重要：

• 石油和天然气： 控制关键阀门（例如节流阀、旁通阀），调节泵速。

• 化工和石化： 反应器温度控制，安全回路中的流量控制。

• 发电： 燃料气体控制，蒸汽阀门定位。

• 炼油、制药、采矿： 任何需要精确和容错模拟控制以确保安全的应用。

TRI-GP 3481S2 模拟量输出模块是 Tricon SIS 的基本组成部分，确保关键的连续过程控制命令准确安全地发送到现场设备，以实现系统保护和运行。
