The IS200JPDVG1A is a Power Distribution Interface Board manufactured by General Electric (GE) for use in their Mark VIe Turbine Control Systems.

English Description

The IS200JPDVG1A, also known as a JPDV distribution terminal board, is a component designed by GE Energy for their Mark VIe control systems. These systems are used for the management and control of gas and steam turbines.

Key features and characteristics of the IS200JPDVG1A include:

• Function: It serves as a power distribution board within the Mark VIe GE Turbine Control System. It also acts as a base for mounting I/O packs, allowing flexible configurations.

• System Compatibility: It is specifically designed for the GE Mark VIe Series, which is an advanced version of GE's Speedtronic control system technology.

• Interoperability: This PCB is typically used in conjunction with IS210MVRA or IS210MVRF components, as well as multiple IS220PIOA I/O packages.

• Technical Specifications:

• Input Power: -28V from the power supply.

• Operating Temperature: 0 to 60 degrees Celsius (or 30 to +65°C depending on the source).

• Channels: It features two channels, typically for ARCNET and RS-485 communication.

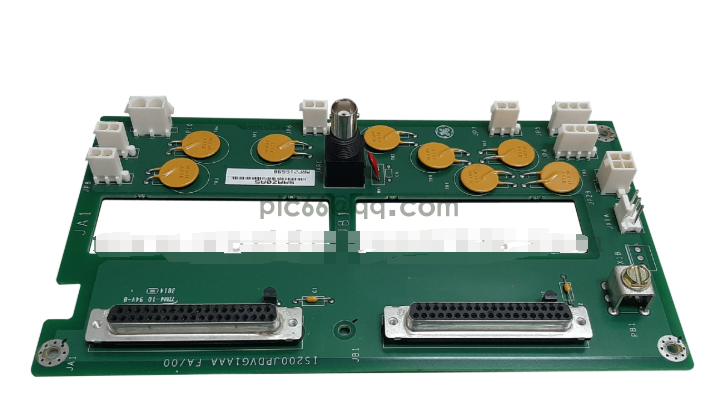

• Physical Features: The board often includes two female ribbon connectors, ceramic capacitors, a metal oxide varistor, and eight other varistors. It also has multiple connectors, such as a fiber optic connector, a quick-connect screw mounting base, a 3-position male connector, and eight plug connectors.

• Reliability: It is known for its user-friendly design and a low failure rate.

• Origin: Manufactured in the United States.

中文描述

IS200JPDVG1A 是通用电气 (GE) 生产的配电接口板，用于其 Mark VIe 汽轮机控制系统。

主要特点和功能

IS200JPDVG1A，也被称为 JPDV 配电端子板，是通用电气能源公司为其 Mark VIe 控制系统设计的一个组件。这些系统用于管理和控制燃气和蒸汽轮机。

IS200JPDVG1A 的主要特点和功能包括：

• 功能： 它在 Mark VIe GE 汽轮机控制系统中充当配电板。它也作为 I/O 模块的安装基座，允许灵活的配置。

• 系统兼容性： 它专为 GE Mark VIe 系列设计，这是 GE Speedtronic 控制系统技术的先进版本。

• 互操作性： 该 PCB 通常与 IS210MVRA 或 IS210MVRF 组件以及多个 IS220PIOA I/O 封装配合使用。

• 技术规格：

• 输入电源： 来自电源的 -28V。

• 工作温度： 0 至 60 摄氏度（或根据不同资料为 30 至 +65°C）。

• 通道： 它具有两个通道，通常用于 ARCNET 和 RS-485 通信。

• 物理特征： 该板通常包括两个雌性排线连接器、陶瓷电容器、一个金属氧化物压敏电阻和八个其他压敏电阻。它还具有多个连接器，例如一个光纤连接器、一个快速连接螺钉安装底座、一个 3 位公连接器和八个插头连接器。

• 可靠性： 它以其用户友好的设计和低故障率而闻名。

• 产地： 在美国制造。
